Silverline Expert Heavy Duty Metal Sash Clamp 1200mm 675132

Silverline Professional Heavy Duty Metal Sash Clamp 1200mm

Barcode: 5055058145512

MPN: 675132

Overview:

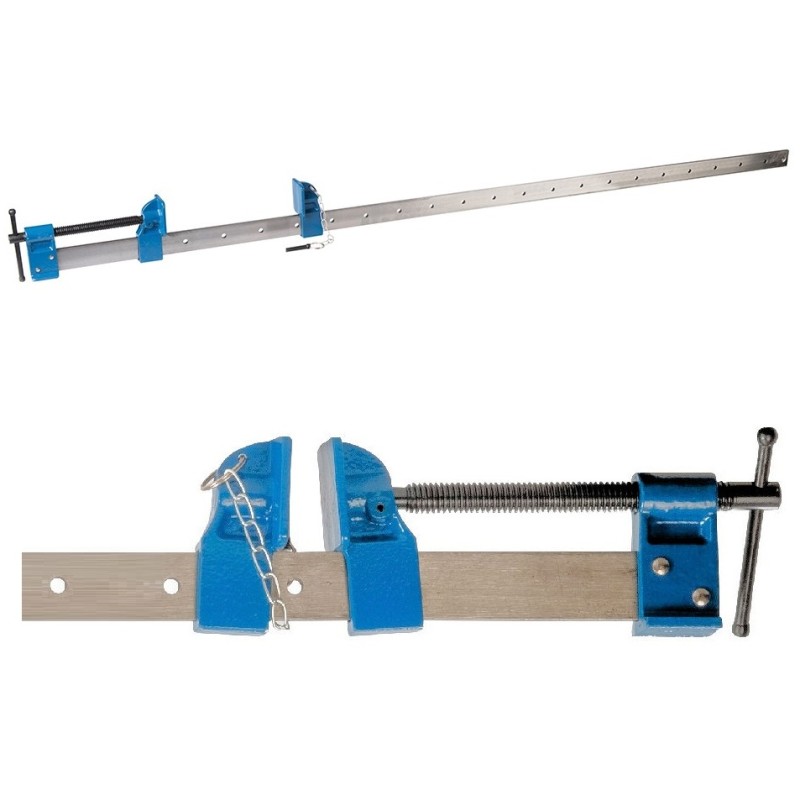

1200mm Expert Professional Heavy Duty Metal Sash Clamp built for strong, accurate clamping on larger woodworking, joinery and assembly jobs. Manufactured from heavy duty steel with a cast head and clamp foot, it’s designed for durability and dependable performance in regular workshop use. The bright drawn serrated steel bar allows quick size adjustment using a sliding head and metal pin system, so you can set the clamp length fast before applying final pressure. With an Acme thread clamping mechanism and a bar-and-jaw design that stays true, it helps maintain uniform clamping and keeps frames and panels square during glue-ups and fitting. The adjustment pin is attached by chain to reduce the chance of losing it on site.

Key Features

• Professional heavy duty 1200mm metal sash clamp for larger assemblies

• Heavy steel construction with cast head and clamp foot for strength

• Bright drawn serrated bar for fast, secure positioning

• Slide-and-pin adjustment with 56mm graduations for quick setup

• Acme thread provides controlled tightening and strong clamping pressure

• Jaws and bar stay true to maintain uniform clamping and keep work square

• Pin attached by chain to help prevent loss in the workshop or van

• Ideal for panels, frames, cabinet parts and long glue-ups

Specifications

• Brand: Silverline

• Product Type: Professional Heavy Duty Metal Sash Clamp

• MPN: 675132

• Length: 1200mm

• Bar Size: 32mm deep x 6.3mm thick

• Jaw Capacity: 1084mm

• Clamp Travel: 1170mm

• Pin Graduations: 56mm

• Clamp Thread Travel: 120mm

• Adjustment Method: Sliding head with pin

• Clamping Method: Acme thread, pin and jaw system

• Bar Type: Bright drawn, serrated

• Pin Retention: Pin attached by chain

Applications

• Clamping wide panels for glue-ups and laminations

• Holding frames square during assembly and fixing

• Joinery, cabinet making and woodworking projects

• Securing boards for drilling, routing or sanding

• Workshop fabrication where long reach and uniform pressure are needed

How to Use

• Slide the clamp head to suit the workpiece width

• Insert the pin into the nearest graduation to lock the position

• Position the jaws squarely against the workpiece edges

• Tighten using the Acme thread until the work is held securely

• Check alignment and squareness, then apply final pressure as required

• Release slowly after the job is complete or adhesive has cured

Expert Metal Sash Clamp 675132 – Key FAQs

• What length is the sash clamp?
  This model is 1200mm long, making it suitable for larger panel glue-ups, cabinet parts and longer joinery assemblies.

• How does the clamp adjust quickly to different sizes?
  It uses a sliding head and metal pin system on a serrated bar, allowing fast positioning before tightening.

• What is the jaw capacity and clamp travel?
  The jaw capacity is 1084mm, and the clamp travel is 1170mm, giving a large working range for wider projects.

• What are the bar dimensions?
  The bar measures 32mm deep x 6.3mm thick, designed to provide strength and stability during heavy duty clamping.

• How much screw/thread travel does it have?
  The clamp thread travel is 120mm, providing a useful tightening range across different material thicknesses.

• Will it help keep my work square during glue-ups?
  Yes. The jaws and bar are designed to stay true, maintaining uniform clamping pressure to help keep frames and panels aligned and square.
