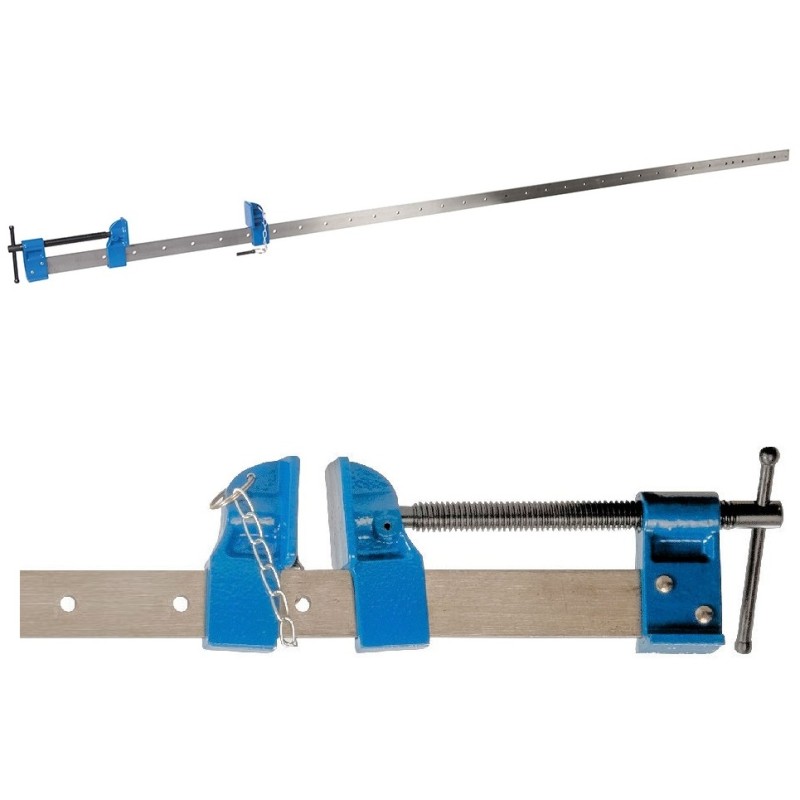

Silverline Expert Heavy Duty Metal Sash Clamp 1800mm 868627

Silverline Expert Heavy Duty Metal Sash Clamp 1800mm

Barcode: 5055058145499

MPN: 868627

Overview:

1800mm Expert Heavy Duty Metal Sash Clamp a strong, reliable clamping solution for larger woodworking and assembly projects where you need consistent pressure over a long span clamping. Manufactured from high quality steel with a cast head and foot for strength, it’s built for regular workshop use. The bright drawn serrated steel bar adjusts quickly using a simple slide-and-pin system, allowing you to set the clamp length efficiently before applying final pressure. Designed to maintain uniform clamping, the jaws and bar stay true to help keep your work square during glue-ups, framing and general assembly tasks.

Key Features

• Heavy duty 1800mm sash clamp for large panels and assemblies

• High quality steel construction with cast head and foot for strength

• Bright drawn serrated bar for fast, secure size adjustment

• Quick slide-and-pin system for easy positioning before tightening

• Uniform clamping helps keep projects square and aligned

• Pin attached by chain to reduce the risk of loss

• Ideal for woodworking, joinery, framing and general workshop assembly

Specifications

• Brand: Silverline Expert

• Product Type: Heavy Duty Metal Sash Clamp

• MPN: 868627

• Length: 1.8 metres / 1800mm

• Bar Size: 32mm deep x 6.3mm thick

• Pin Adjustment Graduations: 56mm

• Clamp Thread Travel: 120mm

• Adjustment System: Slide and metal pin

• Pin Retention: Pin attached by chain

Applications

• Clamping large panels for glue-ups and laminations

• Holding frames square during assembly and fixing

• Joinery and cabinet work requiring long reach

• Workshop fabrication where uniform clamping pressure is needed

• General DIY and trade projects using timber, boards and sheet material

How to Use

• Slide the moving head along the bar to suit the workpiece width

• Insert the metal pin into the nearest graduation to lock the position

• Place the jaws squarely against the workpiece edges

• Turn the clamp handle to apply pressure until secure

• Check alignment and squareness before final tightening

• Release pressure slowly after the adhesive cures or work is complete

Expert Heavy Duty Metal Long Sash Clamp 868627– Key FAQs

• What length is this sash clamp?
  This model is 1800mm (1.8 metres) long, making it suitable for larger glue-ups, panels and frame assemblies.

• How does the clamp adjust to different sizes?
  It uses a slide-and-pin system on a serrated steel bar, allowing quick positioning before tightening the clamp screw.

• What is the bar size on this clamp?
  The bar measures 32mm deep x 6.3mm thick, designed for strength and stability during heavy duty clamping.

• How much screw/thread travel does it have?
  The clamp thread travel is 120mm, providing a good working range for tightening onto varying material thicknesses.

• What are the pin adjustment graduations?
  The pin adjustment graduations are 56mm, helping you step the clamp size quickly as your project requires.

• Is the adjustment pin easy to keep track of?
  Yes. The pin is attached by a chain to help prevent it being misplaced in the workshop.
