Silverline Expert Heavy Duty Metal Sash Clamp 600mm Clamp 633632

Silverline Expert Heavy Duty Metal Sash Clamp 600mm

Barcode: 5055058145482

MPN: 633632

Overview:

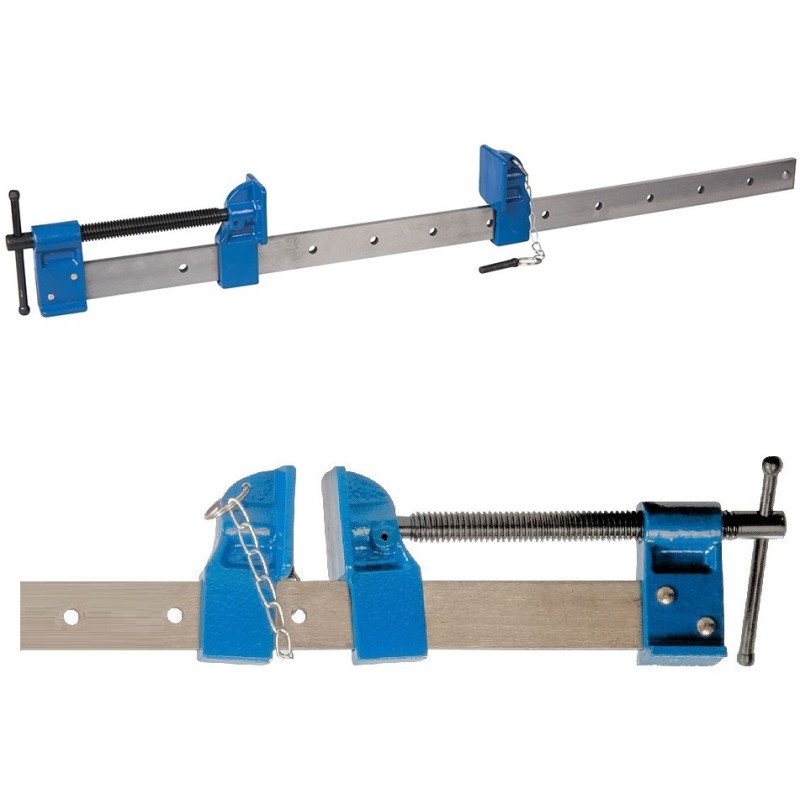

Expert 633632 Heavy Duty Metal Sash Clamp 600mm is a strong, workshop-ready clamp designed for accurate assembly, glue-ups and general joinery tasks. Made from heavy steel with a cast head and foot for added strength, it delivers consistent clamping pressure while helping keep your work square. The bright drawn serrated steel bar adjusts quickly using a simple sliding head and metal pin system, allowing fast setup before tightening. With a pin attached by chain to reduce loss and a generous 120mm thread travel, this 600mm sash clamp is a dependable choice for furniture making, framing and everyday clamping jobs.

Key Features

• Heavy duty 600mm sash clamp for woodworking and workshop use

• Heavy steel construction with cast head and foot for strength

• Bright drawn serrated bar for secure, fast adjustment

• Simple slide-and-pin system with 56mm graduations

• Pin attached by chain to help prevent loss in the workshop

• Jaws and bar stay true to maintain uniform clamping and keep work square

• 120mm thread travel for a practical tightening range

• Easy to position, quick to tighten and simple to use

Specifications

• Brand: Silverline Expert

• Product Type: Heavy Duty Metal Sash Clamp

• MPN: 633632

• Length: 600mm

• Material: Heavy steel

• Bar Size: 32mm deep x 6.3mm thick

• Adjustment Method: Sliding head with metal pin

• Pin Graduations: 56mm

• Clamp Thread Travel: 120mm

• Bar Style: Bright drawn, serrated

• Pin Retention: Pin attached by chain

Applications

• Panel and frame glue-ups

• Holding work square during assembly and fixing

• Joinery, cabinet making and woodworking projects

• Clamping boards for drilling, routing or sanding

• General DIY and workshop clamping tasks

How to Use

• Slide the clamp head along the bar to suit the workpiece size

• Insert the metal pin into the nearest graduation to lock the position

• Place the jaws squarely against the workpiece edges

• Tighten using the clamp screw until secure

• Check alignment and squareness before final tightening

• Release pressure slowly once the work is complete or glue has cured

Expert 633632 Heavy Duty Metal Sash Clamp – Key FAQs

• What length is this Silverline Expert sash clamp?
  This model is 600mm long, making it ideal for smaller to medium glue-ups, frames and general workshop clamping.

• How does the clamp adjust quickly?
  It uses a sliding head and metal pin system on a serrated bar, so you can position it fast before tightening.

• What are the bar dimensions?
  The bar measures 32mm deep x 6.3mm thick, providing stability and strength for heavy duty clamping.

• How much clamp screw travel does it have?
  The clamp thread travel is 120mm, giving you a useful range to tighten onto different material thicknesses.

• Are the pin adjustment steps fixed?
  Yes. The pin positions are set in 56mm graduations, helping you adjust the clamp size quickly and consistently.

• Will it help keep my work square during glue-ups?
  Yes. The clamp is designed to maintain uniform clamping, with the jaws and bar staying true to help keep projects aligned and square.
