Triton T6PHJM T6 Bench Mounted Pocket Hole Drilling Jig 12 Piece Kit
MPN 785243
Model T6PHJM
Barcode 5024763211058
Triton T6PHJ T6 bench mount pocket hole jig 12 piece kit
The bench mounted Jig is designed for drilling pocket holes in wood for repeated use in joinery work, such as panel fixing and corner assembly.
Features a unique speed drive drill holder for 4 times faster drilling,

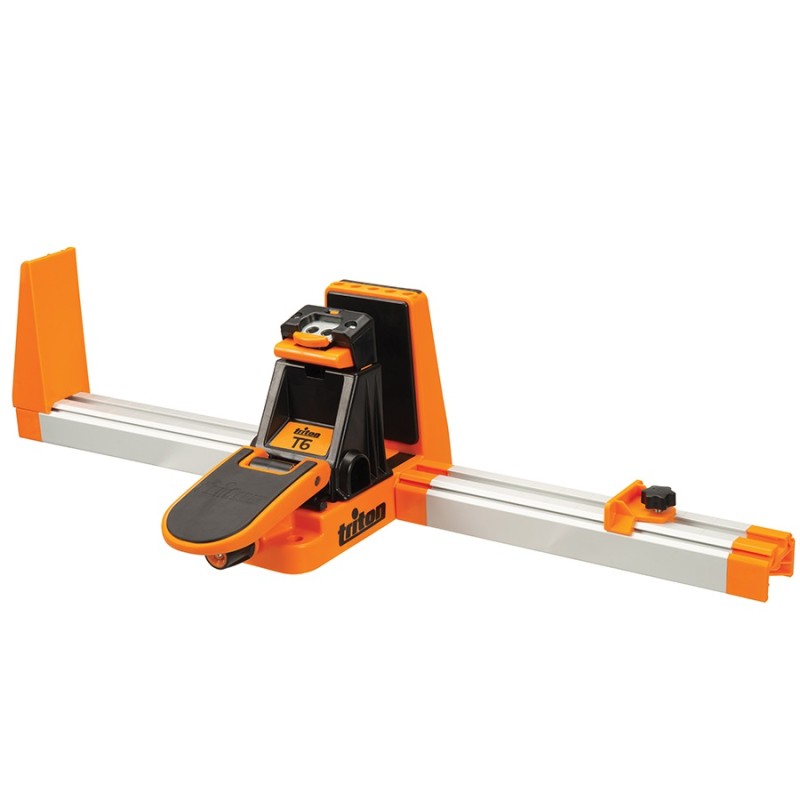

Extendable modular work supports for added stability.
Benefits from having a quick lock mechanism for holding the wood and integrated dust management option.
Specification and Main Points
360 degree walkaround of the T6 Pocket Hole Jig

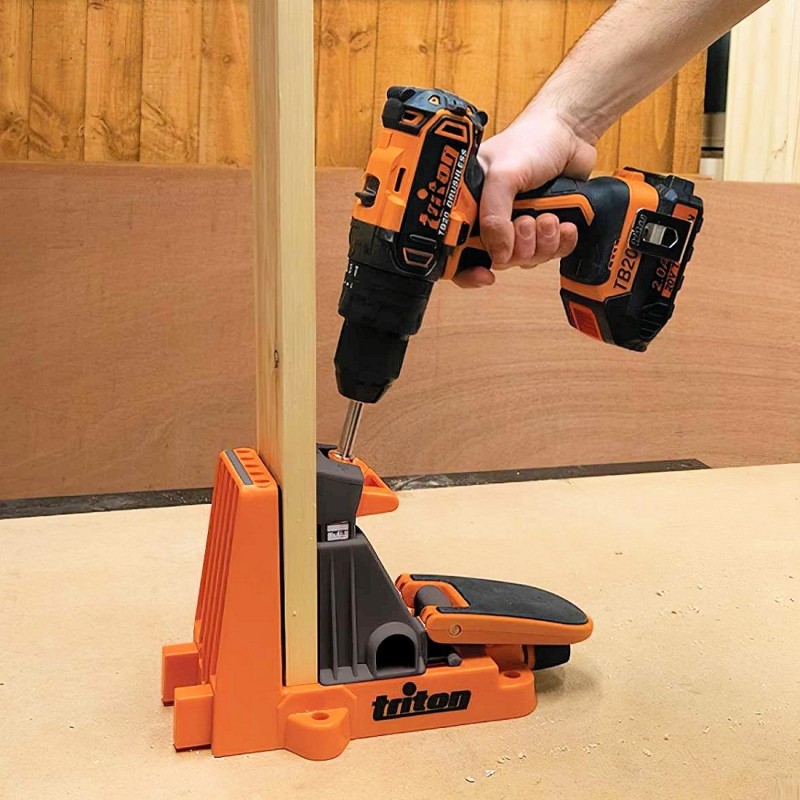

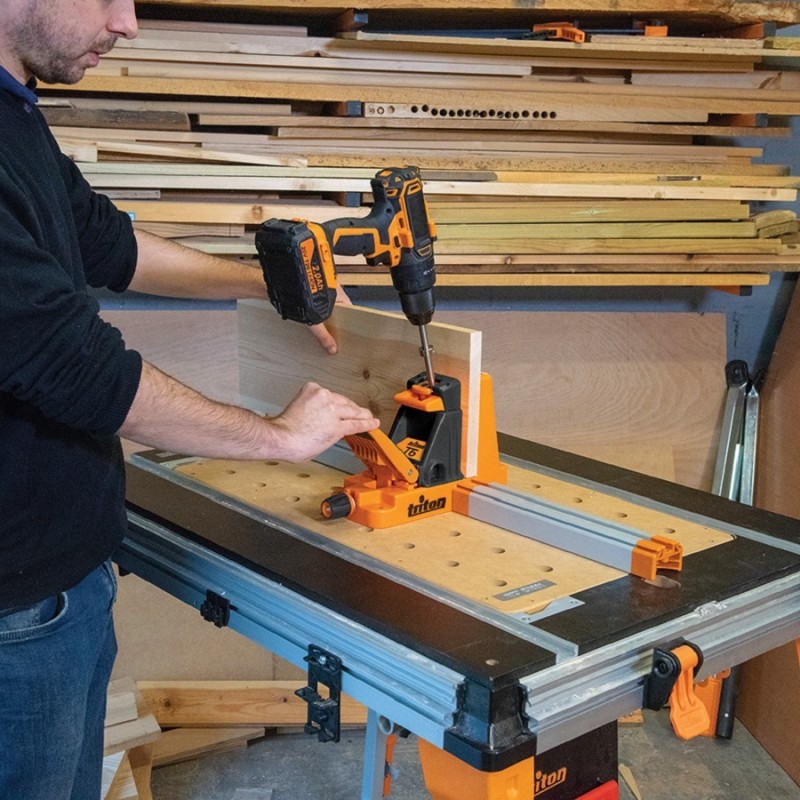

How to use the T6 Bench Mounted Pocket Hole Jig

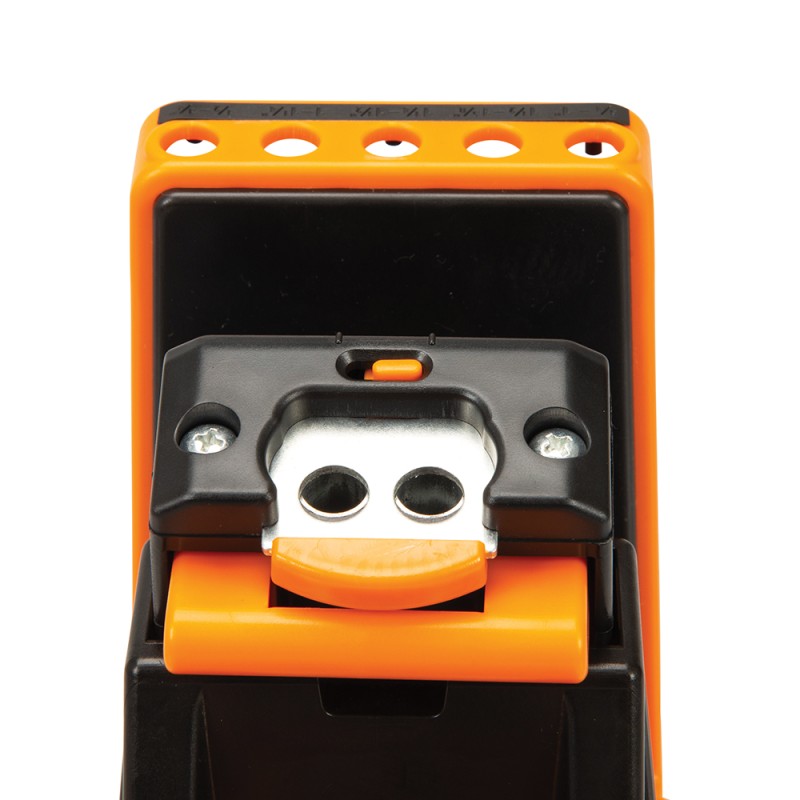

Note: Use the release button on the SpeedDrive to insert or release the Drill Bit.
Note: The tip of the drill bit should just enter the corresponding groove at the base of the Jaws.
Note: Use the optional Work Stops to position the workpiece.
Note: The drill will automatically disengage the lock when it starts spinning.
Note: Use the drill on the fast setting and maintain a high speed whilst drilling.
Note: The Jig can be used without the Speed Drive by
disengaging the lock.

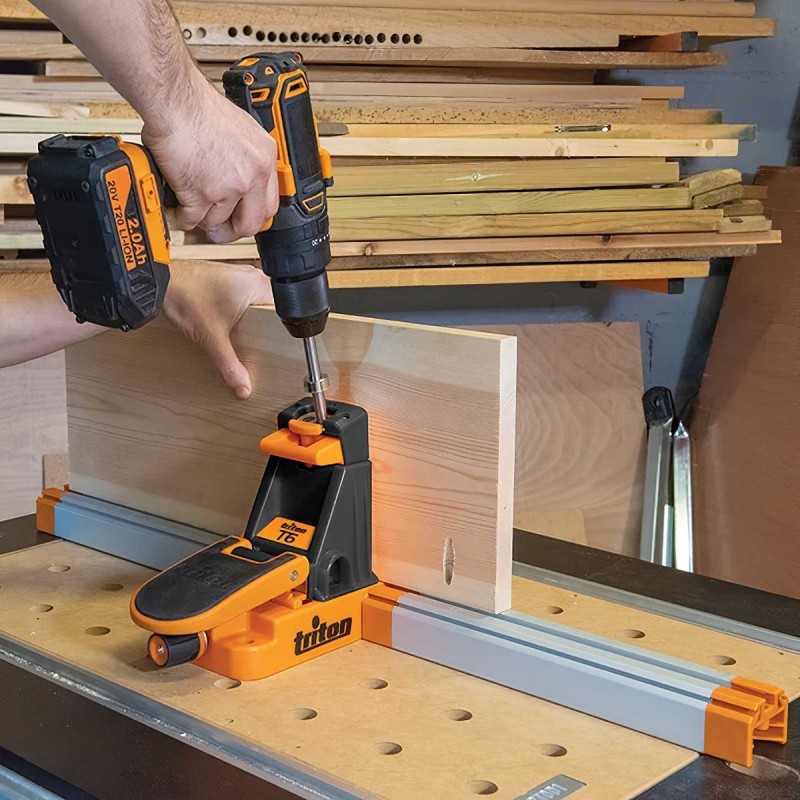

The Pocket Hole Jig can be used for joining panels.
When planning the placement of your pocket holes, keep
in mind that the screws should go into the edge grain or the face grain, but
not into the end grain.
Using the end grain can result in a weak joint.
Data | |
Manufacturer | Triton Tools |
Reference Code | 785243 |
Type | Pocket Hole Bench Mounted Jig |
Model | T6PHJM |

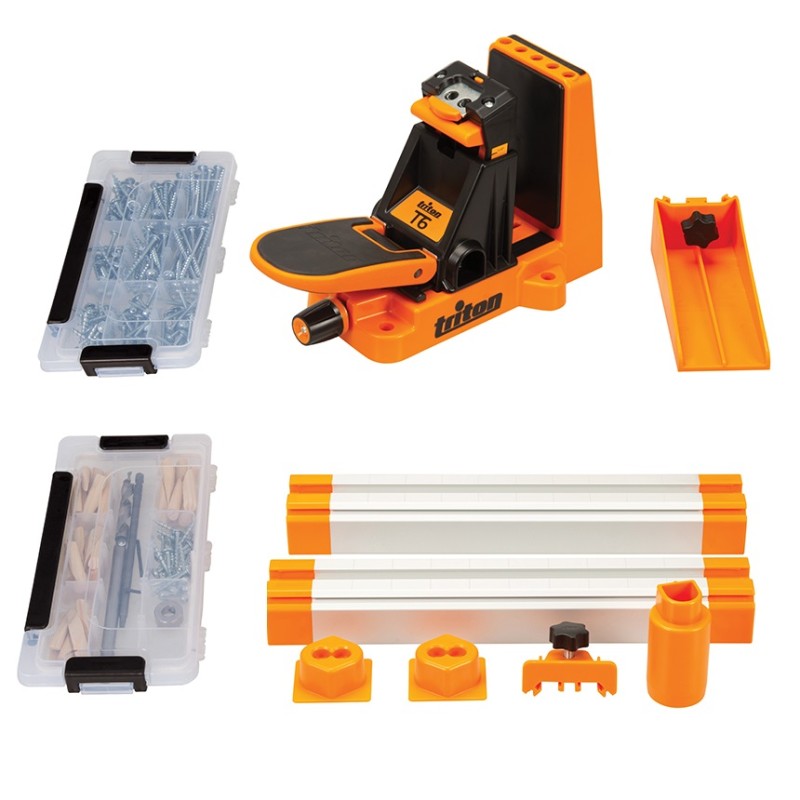

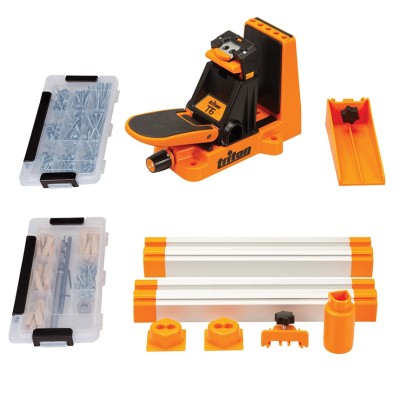

Number of Parts | 12 Piece set |
Name | Link |
---|---|
Triton T6PHJM T6 Bench Pocket Hole Jig 12pc Kit 785243 Information sheet | Download Attachment |
