Triton TBJ001 Joiners Biscuit Jointer 760W 329697

Triton TBJ001 Joiners Kitchen Fitters Biscuit Jointer 760W - 329697

Barcode: 5024763140297

Option: 329697

Model: TBJ001

Overview:

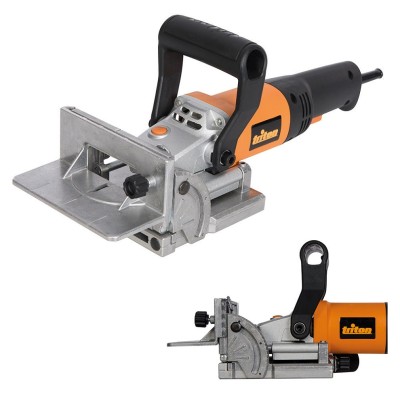

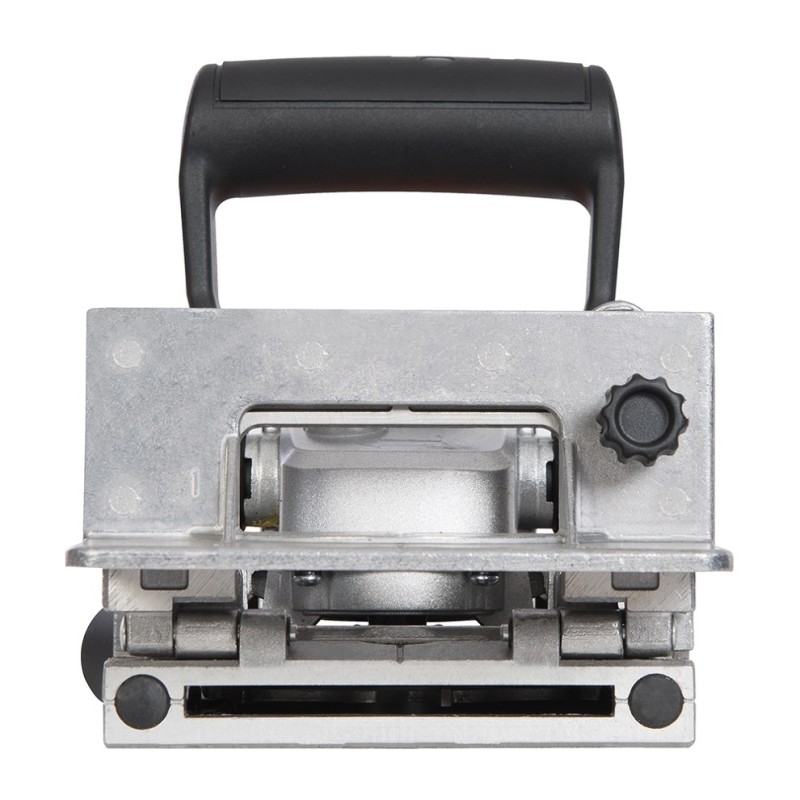

The Triton TBJ001 Biscuit Jointer is a powerful 760W machine designed for joiners, kitchen fitters and serious DIY users who need fast, accurate, repeatable joints. With a cast aluminium base, fence and drive housing, it delivers stable, precise cuts for furniture construction, shelving, carcass work and kitchen worktops.

A fully adjustable fence, 6-position turret stop and compatibility with No.0, No.10, No.20 and S6 biscuits make this a versatile solution for a wide range of joint sizes. The hinged base allows easy access for blade changes and cleaning, while dust extraction and non-slip pads help keep both the work area and workpiece under control.

Key Features

• 760W motor for quick, clean biscuit slot cutting in hardwood, softwood and panels

• Cast aluminium base, fence and drive housing for stability and accuracy

• 0–90° adjustable fence angle for edge, corner and mitre joints

• Height-adjustable fence up to approx. 40mm for precise slot positioning

• 6-position turret stop for quick selection of common biscuit sizes

• Hinged base for easy blade changes and internal cleaning

• Dust port with collection bag to help keep the work area cleaner

• Insulated handles and non-slip base pads for secure, comfortable operation

• Compatible with No.0, No.10, No.20 and S6 biscuits for flexible joint sizing

Specifications

• Brand: Triton Tools

• Model: TBJ001

• MPN: 329697

• Power: 760W

• Base / Fence Material: Cast aluminium

• Fence Angle Range: 0–90° adjustable

• Fence Height Adjustment: 0–40mm (approx.)

• Turret Stops: 6-position turret for biscuit depth / size selection

• Compatible Biscuit Sizes: No.0, No.10, No.20, S6

• Dust Extraction: Dust port with dust bag included

• Blade Access: Hinged base for easy blade change and cleaning

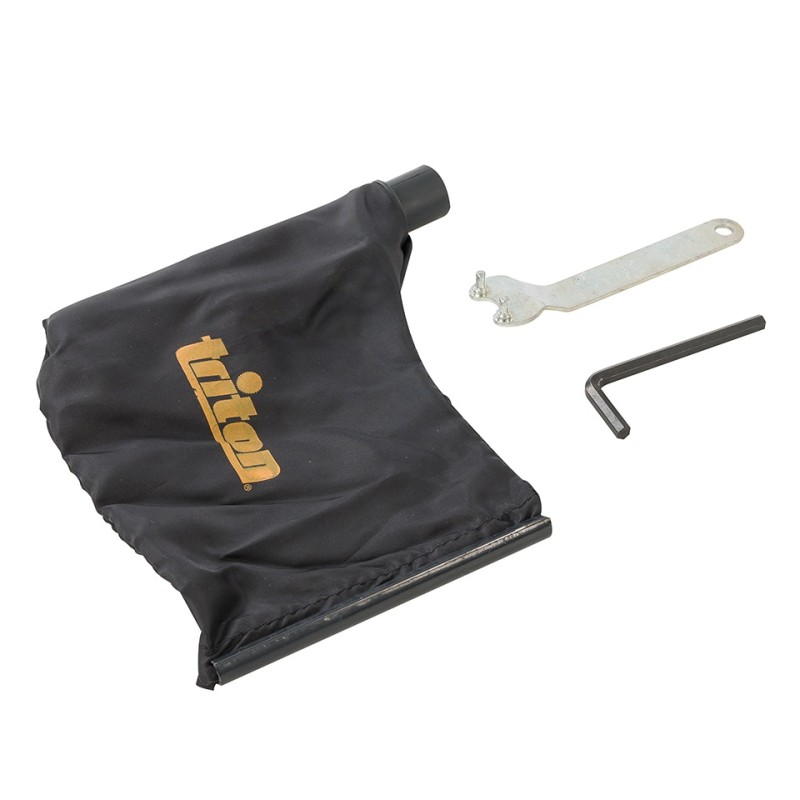

What’s Included

• 1 x Triton TBJ001 760W biscuit jointer (with fitted blade)

• 1 x Blade pin spanner

• 1 x Hex key

• 1 x Pair of spare carbon brushes

• 1 x Dust bag

Typical Applications

• Joining kitchen worktops and panels

• Building cabinets, carcasses and shelving

• Making strong edge-to-edge and corner joints in furniture

• Frame and panel construction for doors, tables and units

• General joinery where hidden, accurate joints are required

How to Use

• Mark the joint positions on both workpieces and set the fence angle and height to suit the job.

• Select the correct turret stop for the biscuit size (No.0, 10, 20 or S6).

• Clamp the workpiece securely and place the non-slip pads and base firmly against the surface.

• Start the tool, allow it to reach full speed, then push the jointer forwards smoothly to cut the slot.

• Repeat on the matching workpiece, add glue and biscuits, then clamp until set.

• Empty the dust bag regularly and use the hinged base for blade cleaning or changing as required.

Replacement blade 899068 also available separately

Triton Tools Guarantee

The Triton TBJ001 Biscuit Jointer is covered by Triton’s 3 Year Guarantee against defects in materials or workmanship when used correctly (fair wear and tear excluded).
To activate and extend your guarantee, register your product online with Triton Tools Register Here.
