Fixman Masonry Shield Anchor Stud Fixing M10 x 95mm 5pk 975889

Fixman Masonry Shield Anchor Stud Fixing M10 - 35 x 95mm, 5 Pack

Barcode: 5024763181467

Code: 975889

Overview:

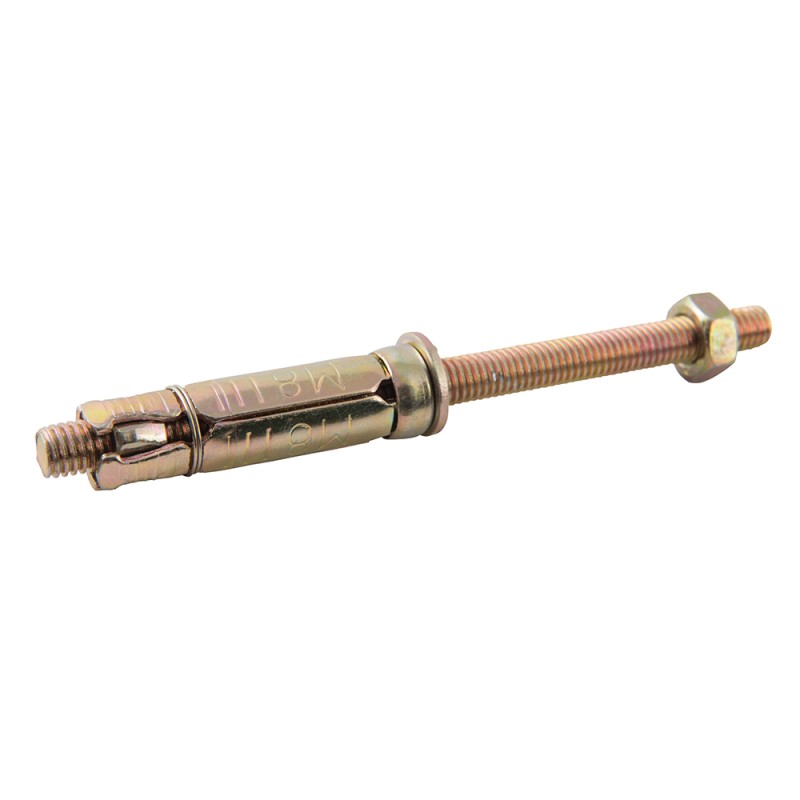

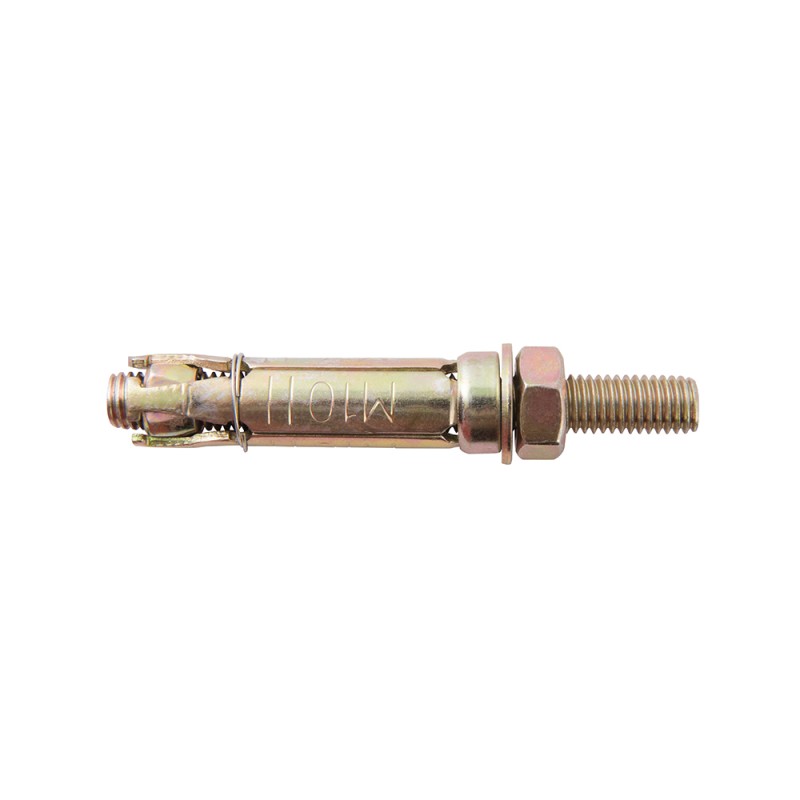

The Fixman M10 (35 x 95mm) Masonry Shield Anchor Stud Fixing is a heavy-duty, torque-controlled expansion anchor for secure fixings in masonry and concrete. Ideal for installing racking, handrails, barriers, storage systems and machinery brackets, it uses a four-way expansion shield that grips firmly as the nut is tightened. With a yellow passivated finish for durability and a complete fixing supplied in each pack, it’s a reliable choice for both internal and external applications where a strong, stable hold is essential.

Key Features

• Heavy-duty torque-controlled expansion anchor for masonry and concrete

• Four-way expansion shield for secure grip and dependable holding power

• Yellow passivated finish for improved corrosion resistance

• Complete fixing supplied with shield, stud and nut

• Suitable for wall and floor fixings, indoors or outdoors

• Ideal for racking, barriers, handrails, storage systems and machinery mounts

Specifications

• Brand: Fixman

• Product Code: 975889

• Type: Masonry shield anchor stud fixing (torque-controlled expansion)

• Bolt Size: M10

• Max Material Thickness: 35mm

• Total Length: 95mm

• Required Drill Size: 16mm

• Finish: Yellow passivated

• Expansion Type: Four-way expansion shield

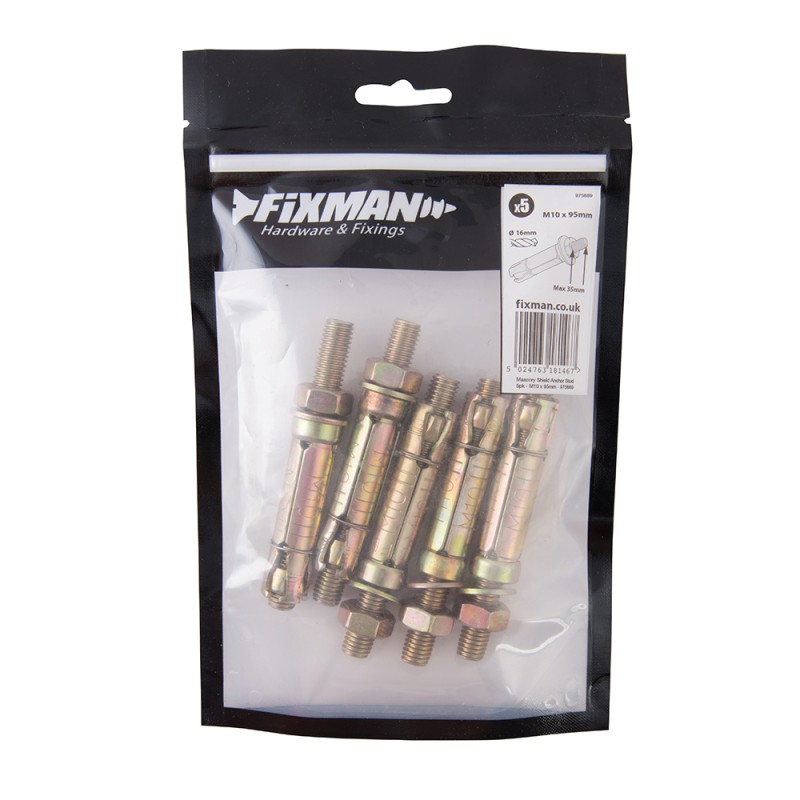

• Pack Quantity: 5

Applications

• Fixing racking and shelving systems to masonry/concrete

• Installing handrails, barriers and guard rails

• Securing machinery, brackets, frames and base plates

• Anchoring storage systems to walls or floors

• Heavy-duty fixings in internal and external environments

How to Use

• Drill a 16mm hole to the required depth into sound masonry or concrete

• Clear dust from the hole for best expansion and holding performance

• Insert the anchor through the fixture and into the hole

• Tighten the nut to expand the shield and lock the fixing in place

• Check the fixture is firmly seated and secure before use

Masonry Shield Anchor Stud Fixing M10 35 x 95mm – Key FAQs

• What surfaces can this M10 shield anchor be used in?
  It’s designed for use in masonry and concrete, suitable for both wall and floor fixings where a strong expansion anchor is required.

• What drill size do I need for installation?
  A 16mm drill bit is required to create the correct hole size for the shield to expand and grip properly.

• What does “35 x 95mm” mean?
  It refers to a maximum material thickness of 35mm and a total fixing length of 95mm, helping you select the correct anchor for your fixture and embedment depth.

• Is it supplied as a complete fixing?
  Yes, each anchor includes the expansion shield, stud and nut, so you have the components needed for installation.

• Can these anchors be used outdoors?
  Yes, they’re suitable for internal and external use. The yellow passivated finish improves durability, but always match fixings to the environment and load requirements.
