Blue Spot Tools 65mm x 160mm Security Wall/Ground Anchor 77097

Blue Spot Tools 65mm x 160mm Security Wall/Ground Anchor

MPN: 77097

Barcode: 5028734770971

Size: 65mm x 160mm

Weight: 0.86kg

Colour: Blue

Overview:

The Blue Spot Tools 65mm x 160mm Security Wall/Ground Anchor provides a fixed attachment point for chains and cables. Hardened steel forms the anchor body with a weatherproof electropainted coating.

Compatible with chain links and cables up to 50mm wide and 56mm high that can pass through the anchor body. The anchor mounts to walls or floors, and it is covered by the Blue Spot Tools lifetime guarantee.

What's Included

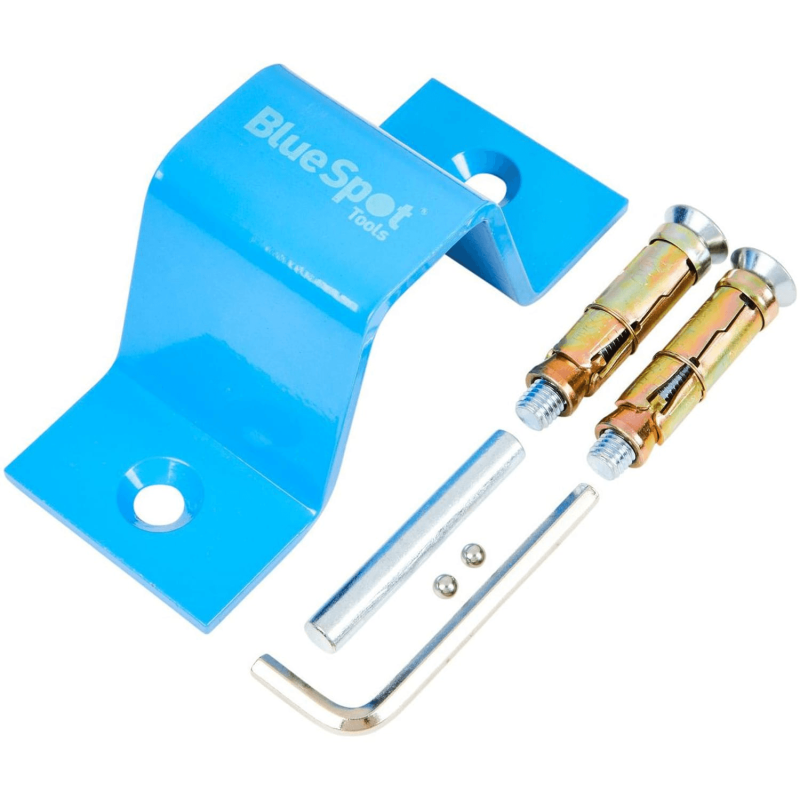

• Wall/Ground Anchor: 1 x 65mm x 160mm Wall/Ground Anchor
• Mounting Bolts: 2 x M10 x 70 Mounting Bolts with Steel Ball Bearings

Key Features and Benefits

• Hardened Steel Build: The anchor body resists cutting and physical attack.
• Weatherproof Finish: The electropainted coating provides rust resistance for outdoor use.
• Wall or Floor Mounting: Works on concrete floors and masonry walls, so you are not limited to a single surface type.
• Chain and Cable Compatible: Accepts steel security chains and cables without requiring a separate loop or ring fitting.
• Anti-Tamper Bolt Design: Steel ball bearings drop into the bolt head recesses after fitting, blocking access and preventing bolt removal.

Specs & Attributes

• Size: 65mm x 160mm
• Material: Hardened Steel
• Finish: Weatherproof Electropainted
• Chain/Cable Link Compatibility: Up to 50mm wide and 56mm high
• Mounting Options: Wall or Floor
• Bolt Size: M10 x 70
• Weight: 0.86kg

Typical Applications

• Securing bicycles in garages and outbuildings
• Anchoring motorcycles in workshops and on driveways
• Creating a chain anchor point for vehicles in a garage or on a driveway
• Securing garden furniture against theft
• Fixing lawnmowers and garden machinery in sheds and outbuildings

How to Use

• Choose a Location: Select a solid concrete floor or masonry wall. Avoid paving slabs, block paving, and tarmac.

• Position the Anchor: Hold the anchor flat against the surface and mark both bolt hole positions.

• Drill the Holes: Use a hammer drill and masonry bit to drill both fixing holes to the required depth.

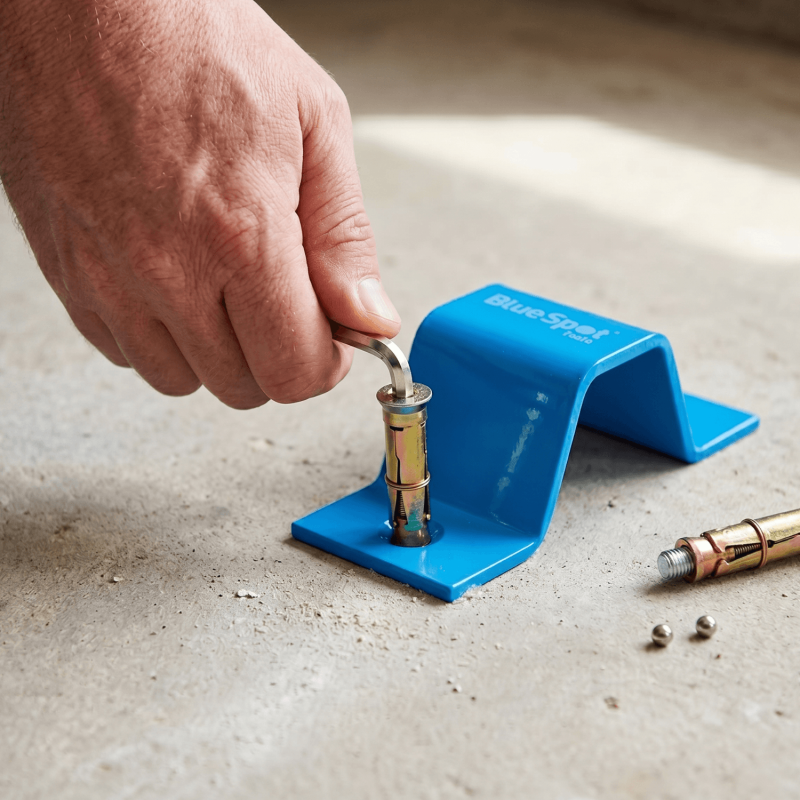

• Fit the Mounting Bolts: Insert the M10 x 70 bolts through the anchor and into the drilled holes.

• Tighten Down: Tighten both bolts fully to secure the anchor firmly against the surface.

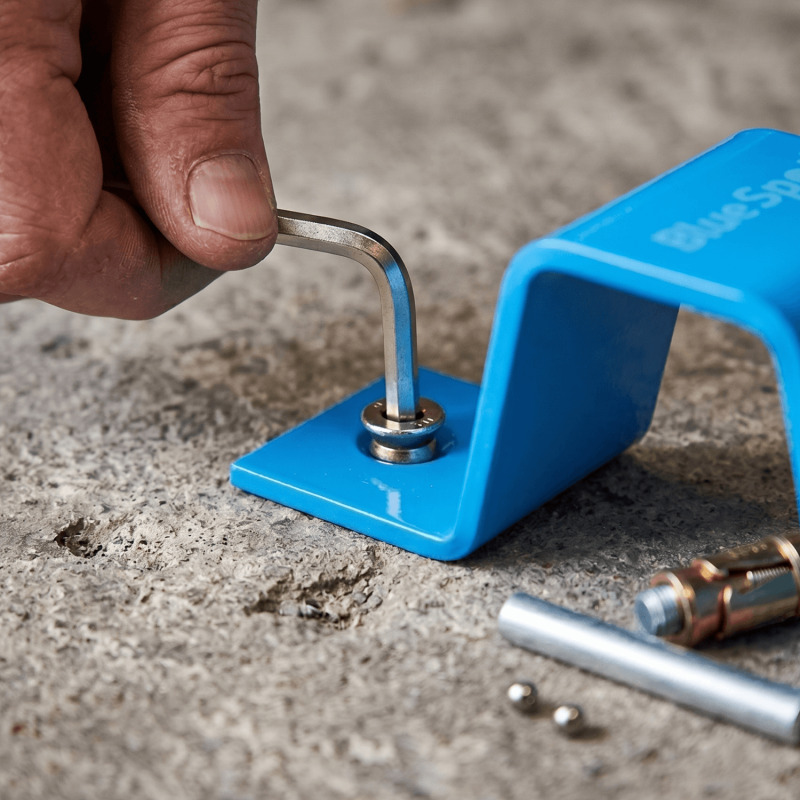

• Secure the Bolt Heads: Drop the steel ball bearings into the bolt head recesses to block access to the fixings.

Frequently Asked Questions (FAQs)

• What surface should a bolt-down security anchor be fitted to?
  Solid concrete is the most common and most secure choice. Solid brick and masonry walls also work well. Paving slabs, flagstones, and tarmac are not suitable surfaces - these materials cannot hold fixing bolts securely and may crack during drilling.

• Is it better to mount a security anchor to a wall or the floor?
  Wall mounting raises the chain off the floor. Bolt cutters and sledgehammers both need chain slack at ground level to work. A wall-mounted anchor also removes the trip hazard that a floor-mounted unit can create.

• Can a bolt-down security anchor be removed and refitted elsewhere?
  Yes. A bolt-down anchor can be uninstalled without causing major surface damage, unlike embedded concrete-in anchors. This makes it a practical choice for rented properties where permanent structural changes are not permitted.

• What is the difference between a bolt-down and a concrete-in ground anchor?
  Bolt-down anchors sit on the surface and fix with bolts, making them quicker and simpler to install. A concrete-in anchor embeds into the ground. This generally provides a higher level of security but requires more preparation work.

• Do floor-mounted security anchors create a trip hazard?
  Bolt-down ground anchors protrude above the floor surface. This presents a risk in areas where people walk, particularly in low light. Mounting the anchor to a wall removes this concern.

Summary

The Blue Spot Tools 65mm x 160mm Security Wall/Ground Anchor features a hardened steel body with a weatherproof electropainted finish. It bolts to walls or floors and accepts cables and chain links up to 50mm wide and 56mm high. The pack includes two M10 x 70 mounting bolts with steel ball bearings, backed by the Blue Spot Tools lifetime guarantee.
