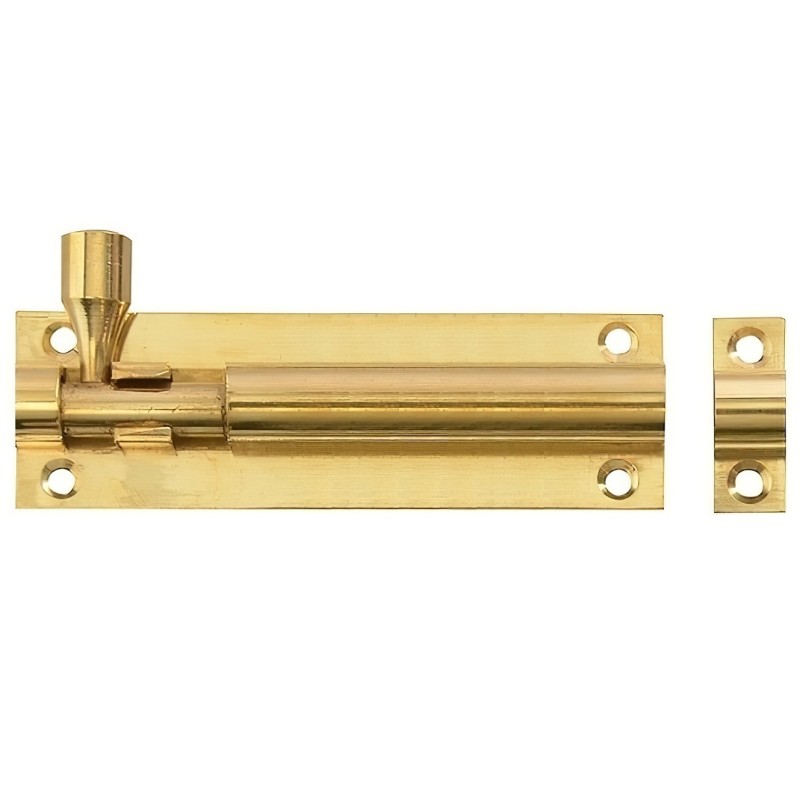

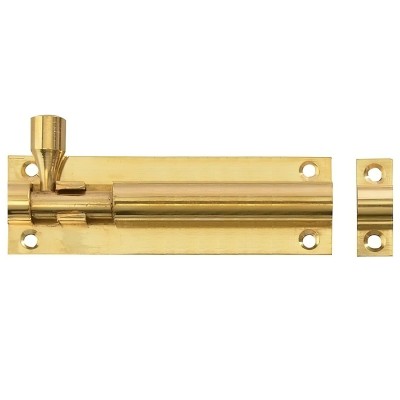

Forgefix 100mm 4 inch Sliding Door Barrel Bolt Brass FGEDBLTBR4

Forgefix 100mm 4 inch Sliding Door Barrel Bolt Brass FGEDBLTBR4

Barcode: 5023969301815

Code: FGEDBLTBR4

The high quality 100mm 4 inch forge internal barrel door bolt is used for securing doors or cupboards.

Manufactured from brass and supplied with fitting instructions and all fixings necessary for installation.

Fitting Instructions

• Position the sliding Barrel bolt in the desired position and mark screw holes with a pencil
• Drill holes using a 2mm drill bit and use the screws provided to fasten in place holes
• Position the keep and ensure that the bolt moves freely through the hole
• Mark hole positions, drill and fix in place
• If installing on an inward opening door position the bolt keep onto the door frame and ensure that the bolt moves freely through the hole
• Please note it may be necessary to remove part of the frame with a Wood Chisel
