Blue Spot Tools 9 Piece 1/4-3/8" Low Profile Metric Impact Hex Sockets (6-19mm) 01594

Blue Spot Tools 9 Piece 1/4-3/8" Low Profile Metric Impact Hex Sockets

MPN: 01594

Barcode: 5028734015942

Size: 6-19mm

Weight: 0.37kg

Overview:

The Blue Spot Tools 9 Piece Low Profile Impact Hex Sockets cover metric sizes from 6mm to 19mm. CrMo construction lets these sockets absorb the repeated force of impact wrenches without cracking. A blackened phosphate coating protects the steel against corrosion during storage and regular use.

The one-piece low-profile build reduces each socket's overall height. This opens access to fasteners in tight or recessed areas where a standard socket cannot reach. Both 1/4" and 3/8" drive sizes are included, covering nine common metric sizes in one set.

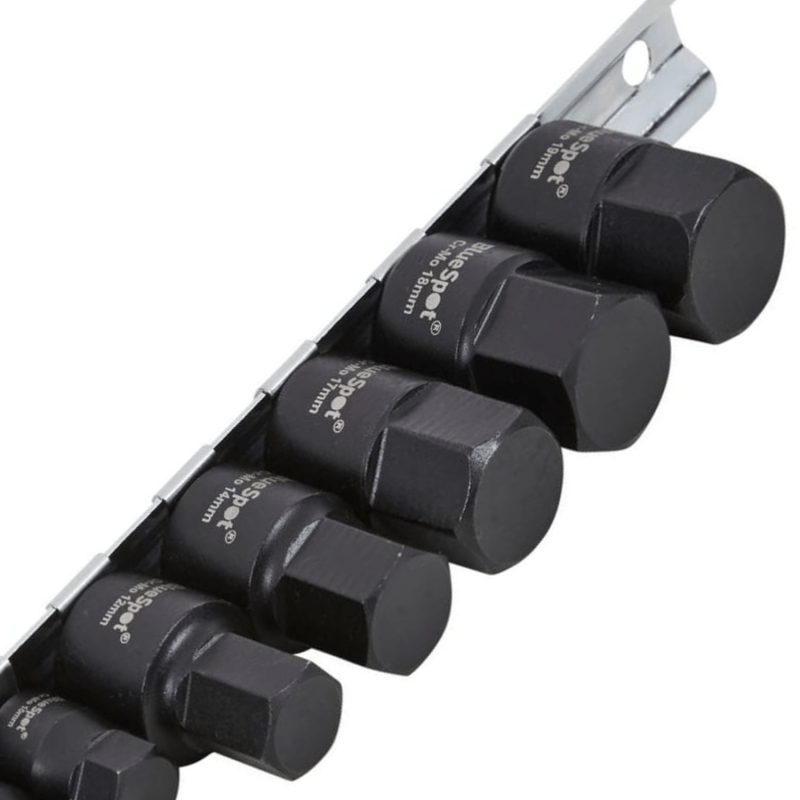

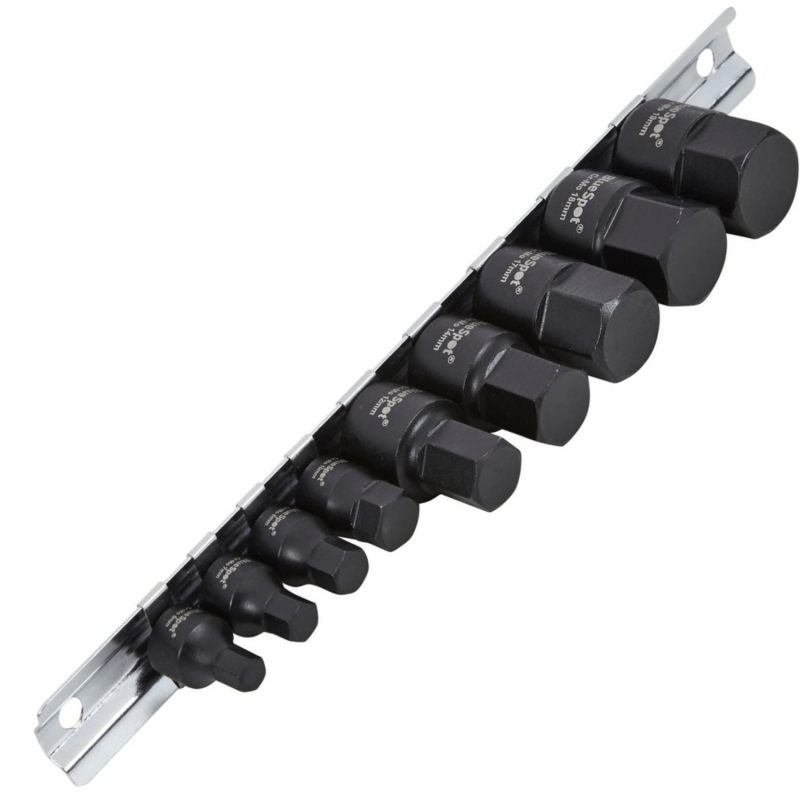

All nine sockets sit on a socket rail for organised storage. The rail keeps them together in a toolbox and makes individual sizes quick to locate.

What's Included

• 1/4" Drive Sockets: 6mm, 7mm, 8mm, 10mm (20mm depth)
• 3/8" Drive Sockets: 12mm, 14mm, 17mm, 18mm, 19mm (30mm depth)

Key Features and Benefits

• CrMo Steel Construction: Absorbs the repeated shock of impact wrenches and drivers without cracking or deforming.
• Blackened Phosphate Coating: Protects the metal surface against corrosion during storage and use.
• Low Profile Design: Reaches fasteners in recessed or confined spaces where a standard-height socket would not seat.
• Dual Drive Coverage: Works with both 1/4" and 3/8" drive tools, removing the need for two separate socket sets.
• Socket Rail Storage: Keeps all nine sockets together, making individual sizes quick to pick out.
• Impact Tool Rated: Designed for use with pneumatic and cordless impact wrenches and drivers.

Specs & Attributes

• Drive Sizes: 1/4" and 3/8"
• Socket Sizes: 6, 7, 8, 10, 12, 14, 17, 18, 19mm
• 1/4" Drive Socket Depth: 20mm
• 3/8" Drive Socket Depth: 30mm
• Material: Chrome Molybdenum (CrMo)
• Finish: Blackened phosphate
• Weight: 0.37kg

Typical Applications

• Removing and tightening hex-head fasteners on cars and vans
• Automotive servicing in confined engine bays and wheel arches
• Accessing recessed fixings where a full-height socket will not seat
• Use with electric or pneumatic impact wrenches and drivers
• Workshop and garage maintenance across both 1/4" and 3/8" drive tools
• Mechanical work requiring an impact-rated socket in a compact form

How to Use

• Size Selection: Pick the socket size that matches your bolt or nut head.

• Attach to Tool: Press the socket onto your 1/4" or 3/8" drive impact tool or ratchet until it clicks into place.

• Position the Socket: Place the socket squarely onto the fastener head before applying any force.

• Operate: Run the tool to loosen or tighten the fastener, keeping the drive aligned throughout.

• Store After Use: Return each socket to the rail to keep the set complete and ready for next time.

Frequently Asked Questions (FAQs)

• What is the difference between CrMo and CrV sockets?
  Chrome Molybdenum (CrMo) steel is designed to absorb the repeated shock loading of impact tools. It is slightly more flexible than Chrome Vanadium (CrV), which lowers the risk of shattering under sudden torque. CrV is more commonly found in hand tools such as ratchets and spanners.

• Can you use impact sockets with a hand ratchet?
  Yes. Impact sockets are compatible with hand ratchets of the same drive size. They are built for impact tools but work safely on a standard ratchet. The reverse is not safe - using a chrome hand socket on an impact wrench carries a risk of cracking or shattering.

• Why are impact sockets black?
  The black finish is a phosphate coating applied to the steel surface. It acts as a corrosion barrier and reduces friction between the socket and fastener during high-torque use. It also makes impact sockets easy to tell apart from standard chrome-finish sockets.

• What does low profile mean on a socket?
  A low-profile socket has a reduced overall height compared to a standard socket. This allows it to seat on fasteners in confined areas where a full-height socket would not reach. Typical situations include tight engine bays, wheel arches, and recessed fixings on machinery.

• Can you use a regular socket on an impact wrench?
  No. Standard chrome-finish sockets are not rated for impact use. The force from an impact wrench can cause a regular socket to crack or shatter, posing a safety risk. Impact-rated sockets use tougher alloys and have thicker walls to handle the repeated shock of impact tools.

Summary

The Blue Spot Tools 9 Piece Low Profile Metric Impact Hex Sockets span 6mm to 19mm across 1/4" and 3/8" drive sizes. CrMo construction handles the force of impact tools, and the blackened phosphate finish resists corrosion. This set comes with the Blue Spot Tools Lifetime Guarantee and stores on a socket rail.
