Blue Spot Tools 300mm (12") Extra Long 1/4" Soft Grip Ratchet (72 Teeth) 02034

Blue Spot Tools 300mm (12") Extra Long 1/4" Ratchet (72 Teeth)

MPN: 02034

Barcode: 5028734020342

Size: 300mm (12"), 1/4" Drive

Overview:

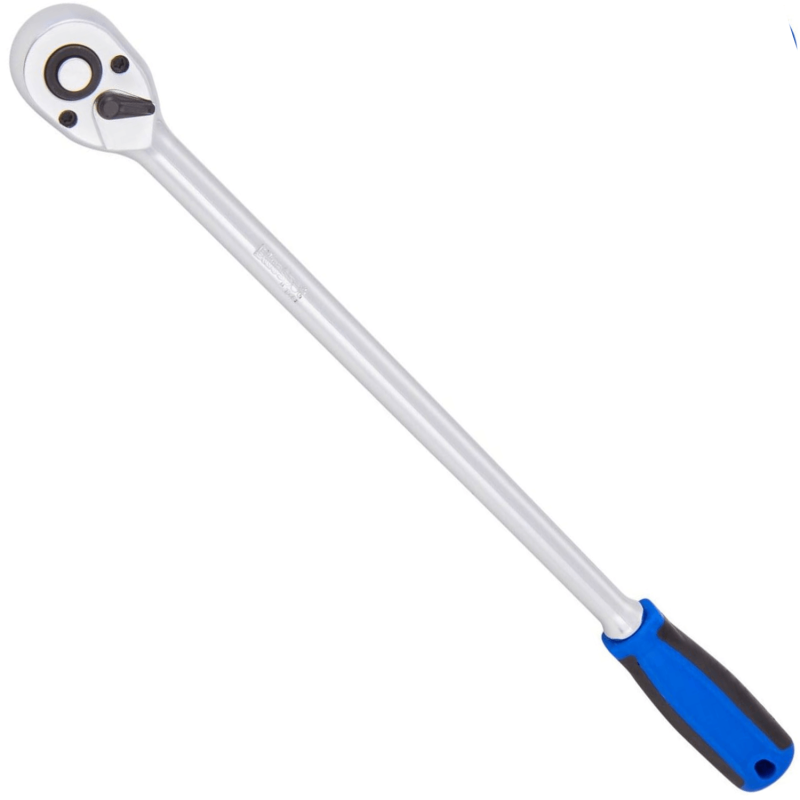

The Blue Spot Tools 300mm (12") ratchet features a chrome molybdenum (Cr-Mo) head and a heat treated carbon steel body. It accepts a 1/4" drive and suits lighter fastening work across automotive and general mechanical tasks.

The 300mm shaft generates more leverage than a standard-length ratchet, making it easier to break loose stiff or awkward fixings. The 72-tooth mechanism advances just 5° per click, which helps when there is little room to swing the handle.

It also features a quick-release button that lets you swap sockets without repositioning the tool. The soft grip handle at the base reduces slipping, particularly when hands are wet or greasy.

Key Features and Benefits

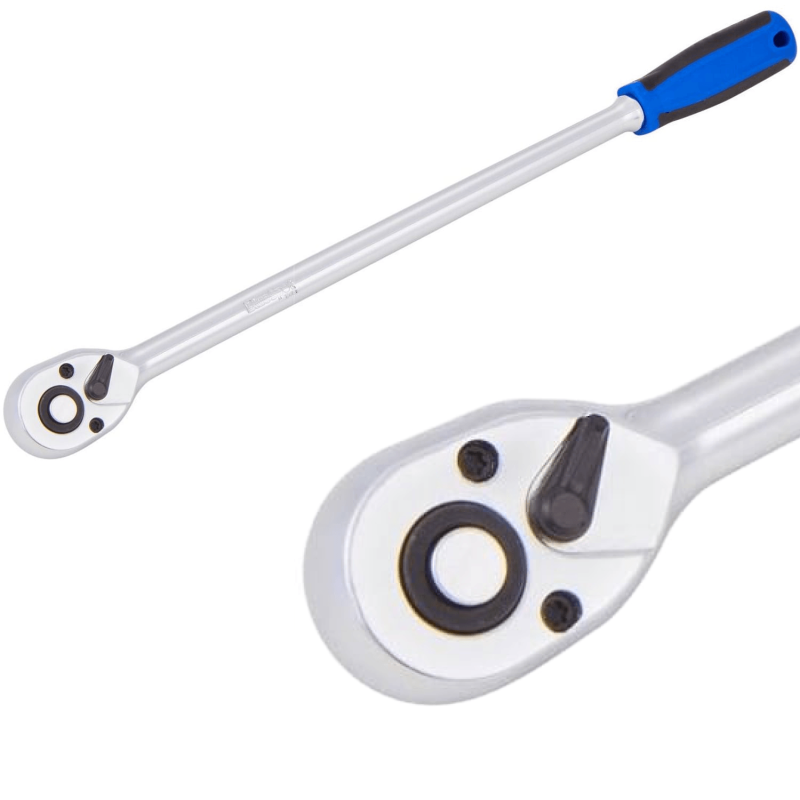

• Chrome Molybdenum (Cr-Mo) Head: Cr-Mo withstands higher stress than standard steel, making it better suited to sustained use without deforming at the drive point.
• Extra Long 300mm Shaft: The added length gives you more leverage, reducing the effort needed to loosen tight or seized fixings in deeper or awkward locations.
• 72-Tooth Mechanism: Steps through just 5° per click, so you can make progress even when the handle movement is very limited.
• Quick Release Button: Lets you remove and change sockets one-handed without pulling the ratchet away from the work.
• Soft Grip Handle: Reduces slipping during use and provides a more comfortable hold over longer working periods.
• Heat-Treated Carbon Steel Body: The heat treatment hardens the shaft material, helping it resist bending under load.

Specs & Attributes

• Drive Size: 1/4"
• Length: 300mm (12")
• Weight: 0.27kg
• Head Material: Chrome Molybdenum (Cr-Mo)
• Body Material: Heat-Treated Carbon Steel
• Teeth: 72
• Ratcheting Increment: 5°
• Guarantee: Blue Spot Tools Lifetime Guarantee

Typical Applications

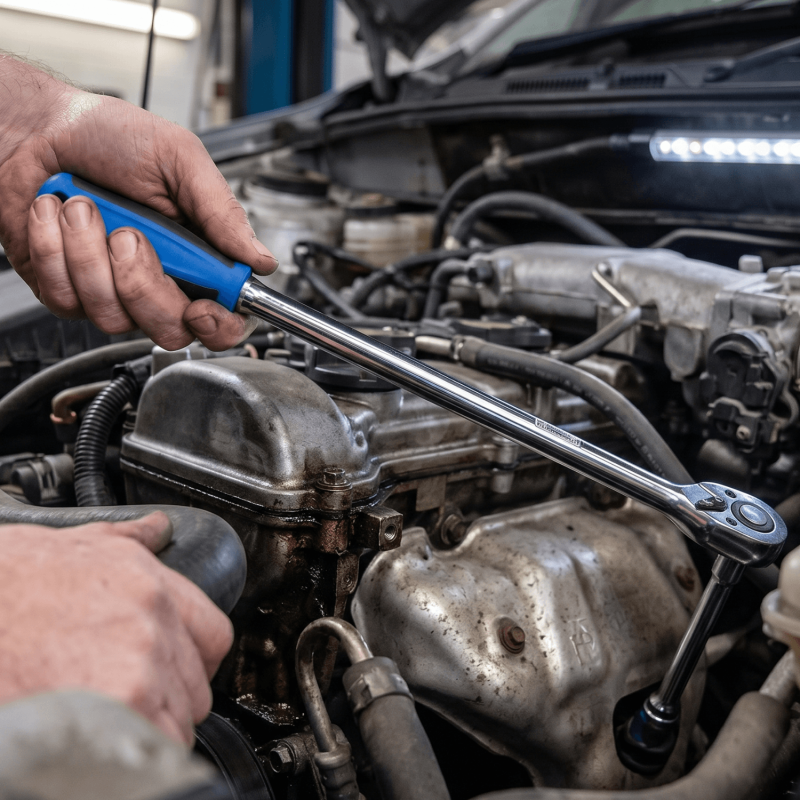

• Removing engine bay bolts in confined spaces
• Dashboard and trim panel fastener access
• Electrical component removal and refitting

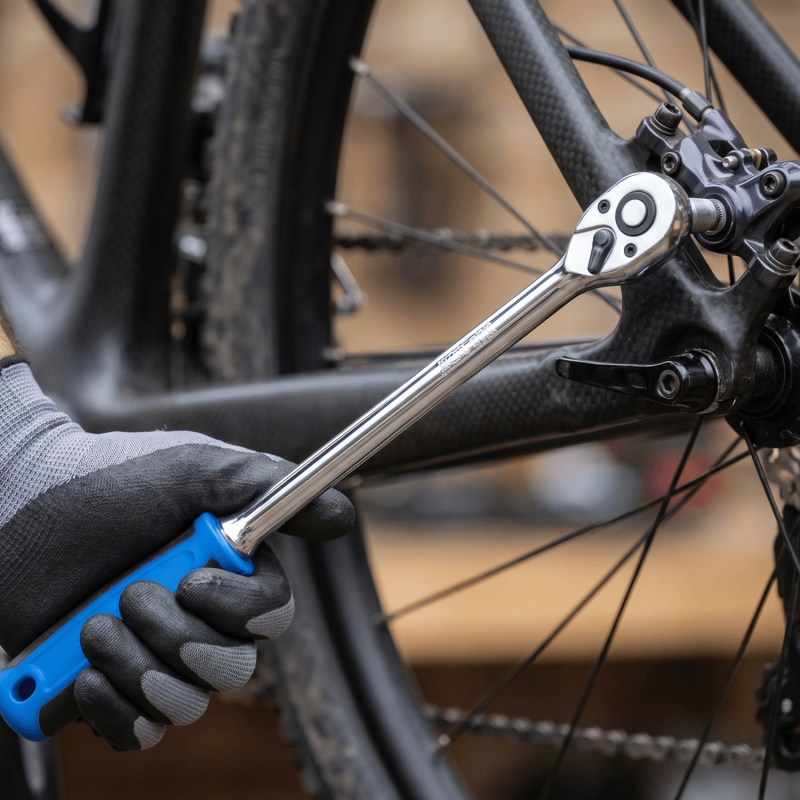

• Cycle and motorcycle maintenance

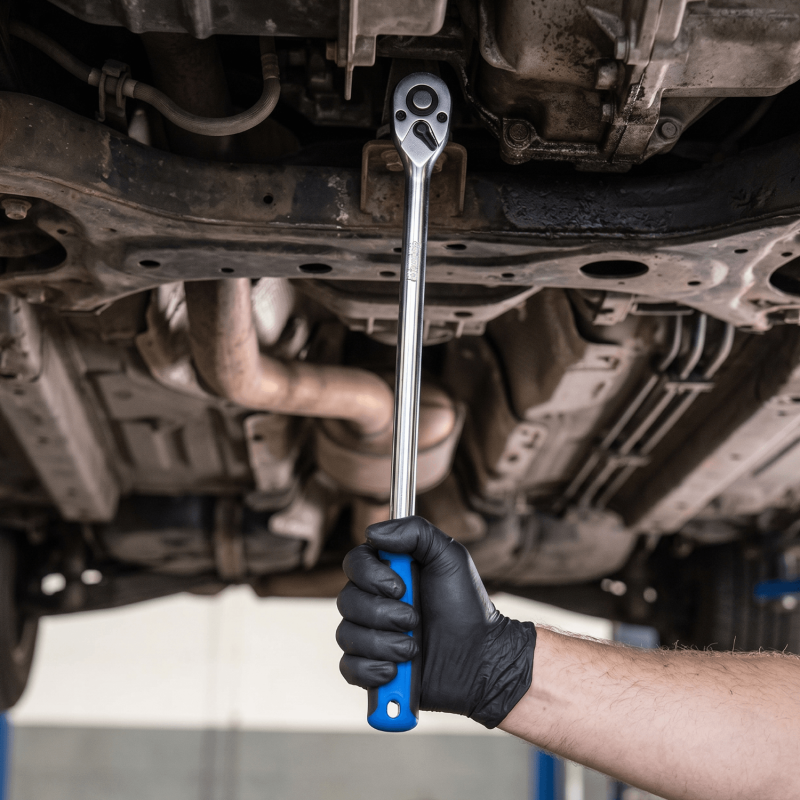

• General automotive servicing tasks
• Light-duty fastening in restricted working areas

How to Use

• Select a Socket: Choose a 1/4" drive socket that matches the fastener size.

• Attach the Socket: Press the socket firmly onto the square drive until it clicks into place.

• Set the Direction: Use the direction lever to select clockwise for tightening or anticlockwise for loosening.

• Apply to the Fastener: Place the socket squarely onto the fastener and apply steady, controlled pressure.

• Change Sockets: Press the quick-release button to remove the socket when switching sizes.

Frequently Asked Questions (FAQs)

• What does tooth count mean on a ratchet?
  The tooth count determines the swing arc - how far you must move the handle before the mechanism re-engages. A 72-tooth ratchet needs just 5° of movement per click, so you can still turn a fastener with very little room to work.

• What is the difference between chrome molybdenum and chrome vanadium in hand tools?
  Chrome vanadium (Cr-V) is the standard alloy for most hand tool bodies, offering good strength and corrosion resistance. Chrome molybdenum (Cr-Mo) handles higher stress loads, which is why it is commonly used in ratchet heads and impact-rated components.

• What is a 1/4" drive ratchet used for?
  A 1/4" drive ratchet suits lighter-duty fastening tasks. The smaller head profile makes it well-suited to confined spaces where a larger 3/8" or 1/2" drive head would not fit or would be awkward to manoeuvre.

• What is the difference between a 72-tooth and a 90-tooth ratchet?
  A 72-tooth ratchet advances 5° per click; a 90-tooth model steps through just 4°. For most general automotive and maintenance work, 72 teeth provide you with good access in tight areas. A 90-tooth ratchet offers a fractionally finer action for extremely restricted spaces.

• Can you use a cheater bar with a ratchet?
  No. Sliding a pipe or extension over a ratchet handle to gain extra leverage can damage the internal mechanism. For high-torque work on seized fasteners, a breaker bar is the correct tool to use instead.

Summary

The Blue Spot Tools 300mm (12") Extra Long 1/4" Soft Grip Ratchet (02034) pairs a chrome molybdenum head with a heat-treated carbon steel shaft for a solid, capable tool. The 72-tooth mechanism delivers 5° ratcheting increments, and the quick-release button makes socket changes fast and simple. It comes backed by the Blue Spot Tools Lifetime Guarantee.
