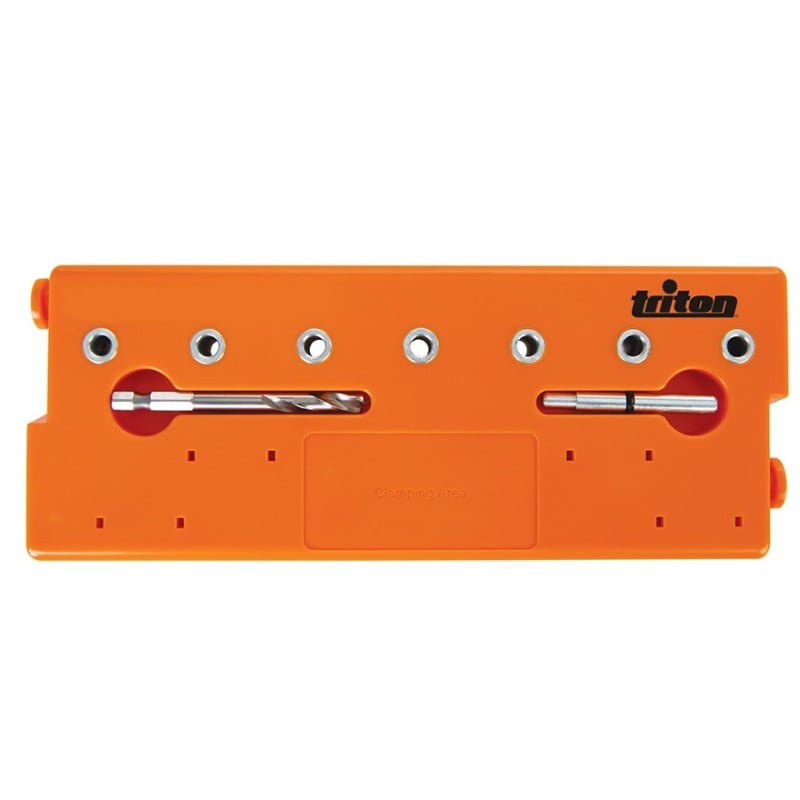

Triton TSPJ TS Cupboard Shelf Support Hole Pin Jig 303468

Triton TSPJ TS Cupboard Shelf Support Hole Pin Jig

MPN 303468

Model TSPJ

Barcode 5024763206016

The precise and acrurate placement of these pin holes is made simple with this pin jig

Ther triton pin jig has a simple slot-together system for joining 2 or more jigs.

7 drill guides spaced at 32mm intervals.

Ideal for creating locating holes on adjustable shelving units such as cabinets and bookshelves.

Incorporates retractable 30mm and 50mm side stops, plus a reinforced clamping zone.

Contents Included

• Pin Jig
• Locator pin
• Drill bit
• collar and hex key
• All stored in the unit

360 degree video

How to use

1. To set the drill depth place the Drill Bit in one of the Drill Guides and align the Drill Bit with the edge of the workpiece.
2. Place the Depth Collar over the Drill Bit and set the Drill Bit to the correct depth.

3. Tighten the grub screw on the Depth Collar using the Hex Key to lock the Depth Collar in place.

4. Use the pull-out guides on the underside of the Jig to set the required distance from the edge of the workpiece.


Note: There are 2 sets of guides to allow for 2 different distance Settings

1. Locate the guides against the edge of the workpiece and position the Jig.

2. Clamp the Jig in place using the Clamping Area.

3. Place the Drill Bit into one of the Drill Guides until the tip connects with the workpiece.

4. Start the drill and gently drill the hole until the Depth Collar connects with the Jig


Note: Use the drill on the fast setting and maintain a high speed whilst drilling.

1. Remove the Drill Bit from the Drill Guide and switch off the drill.

2. Continue to drill holes using the remaining Drill Guides.

3. Remove the clamp and reposition the Jig to continue drilling the sequence of holes.

4. Position the Jig using the Locating Pin through the first Drill Guide into the last hole in the row of holes just drilled.
5. Re-clamp the jig and continue drilling the holes


Note: If there is not enough room for the full length of the Jig at the end of the sequence of drilled holes, then use whichever of the holes that will position the Jig accordingly.

Note: The Jig can be used without the guides, however, an alternative method for aligning the Jig will need to be implemented to ensure accurate alignment of the holes.
