Triton T6PHJ T6 Bench Mounted Pocket Hole Jig Kit 992620

Triton T6PHJ T6 Bench Mounted Pocket Hole Drilling Jig Kit

MPN 992620

Model T6PHJ

Barcode 5024763202278

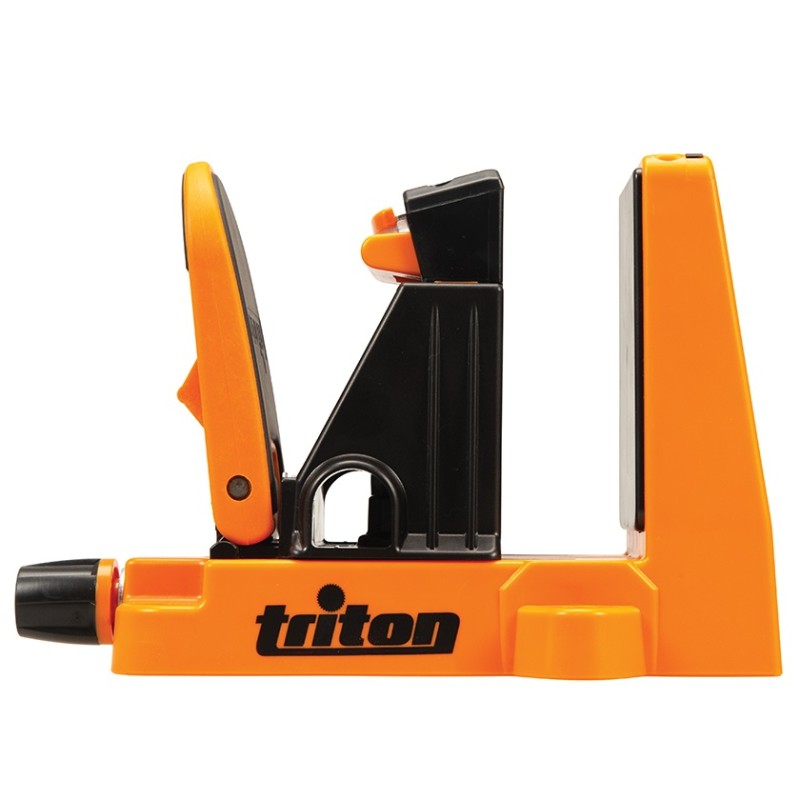

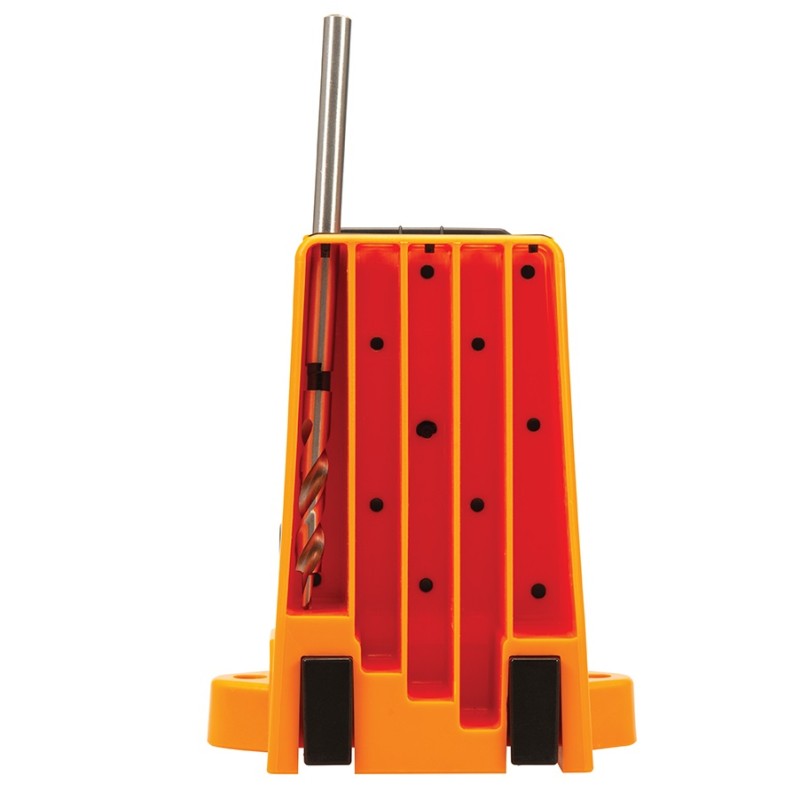

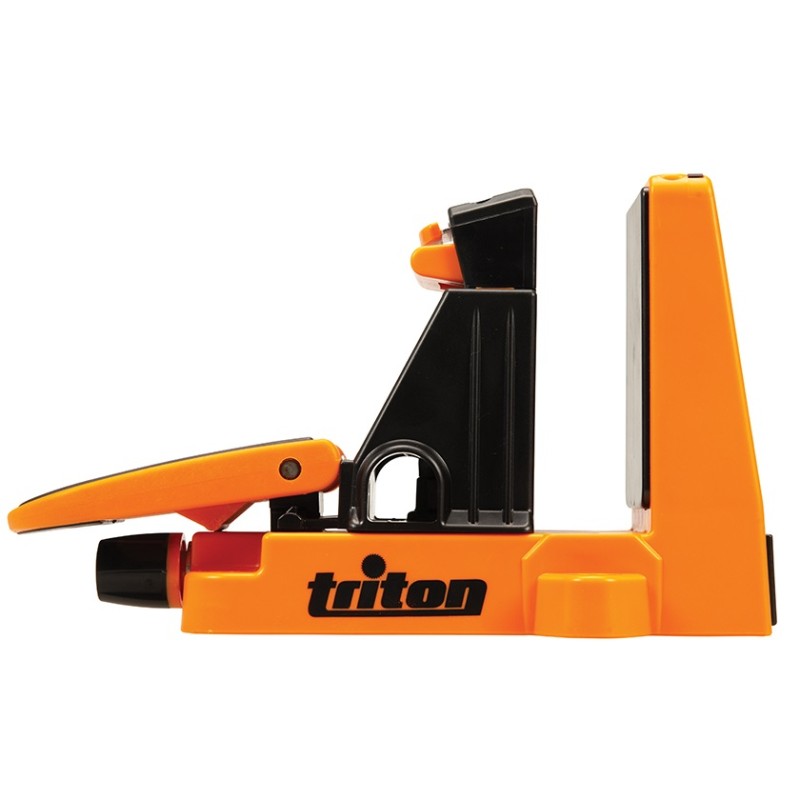

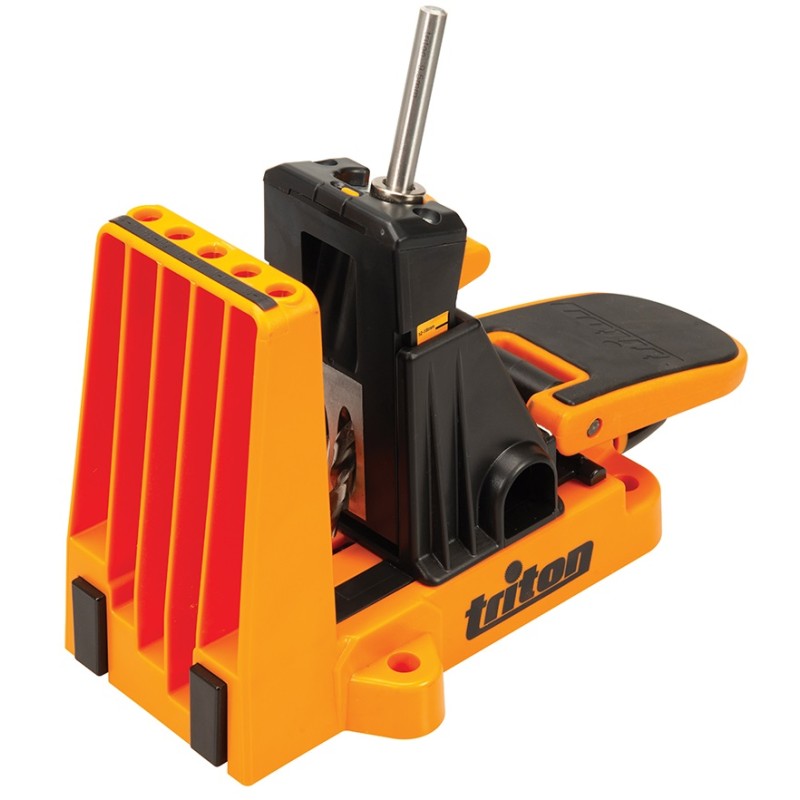

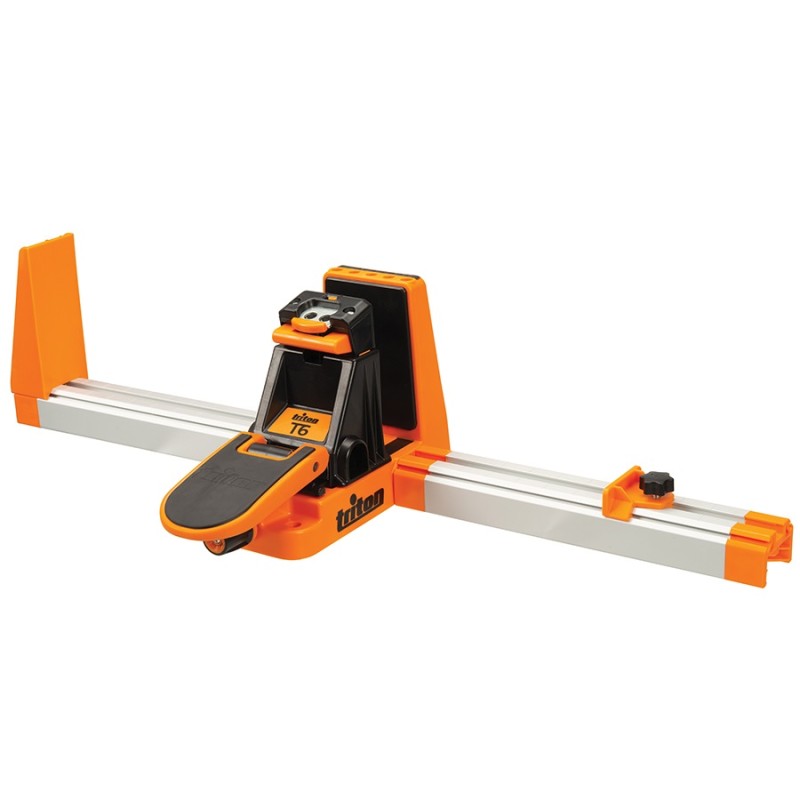

Triton T6PHJ T6 bench mount pocket hole jig

Bench mounted Jig for drilling pocket holes in wood for repeated use in joinery work, such as panel fixing and corner assembly.

Features a unique SpeedDrive drill holder for 4 times faster drilling,

Extendable modular work supports for added stability.

Quick lock mechanism for holding the wood and integrated dust management option.

Can be used with 12mm 1/2 inch - 42mm 1-1/2 inch thick wood.

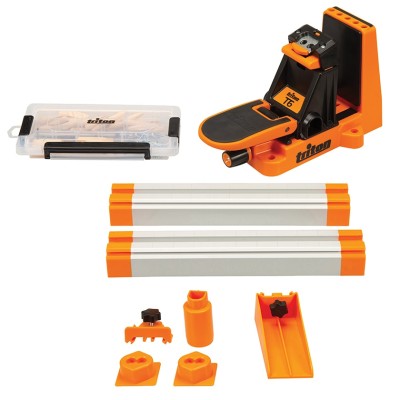

Included in this kit

• T6 jig
• Step drill bit
• Collar and key
• Square drive bi
• Starter kit including screws and plugs

How to use the T6 Bench Mounted Pocket Hole Jig

1. Place the Drill Bit in the Depth Gauge using the Depth Scale to determine the correct hole for the depth of wood being drilled.
2. Slide the Depth Collar onto the Drill Bit and secure using a Hex Key.
3. Engage the SpeedDrive

Note: Use the release button on the SpeedDrive to insert or release the Drill Bit.

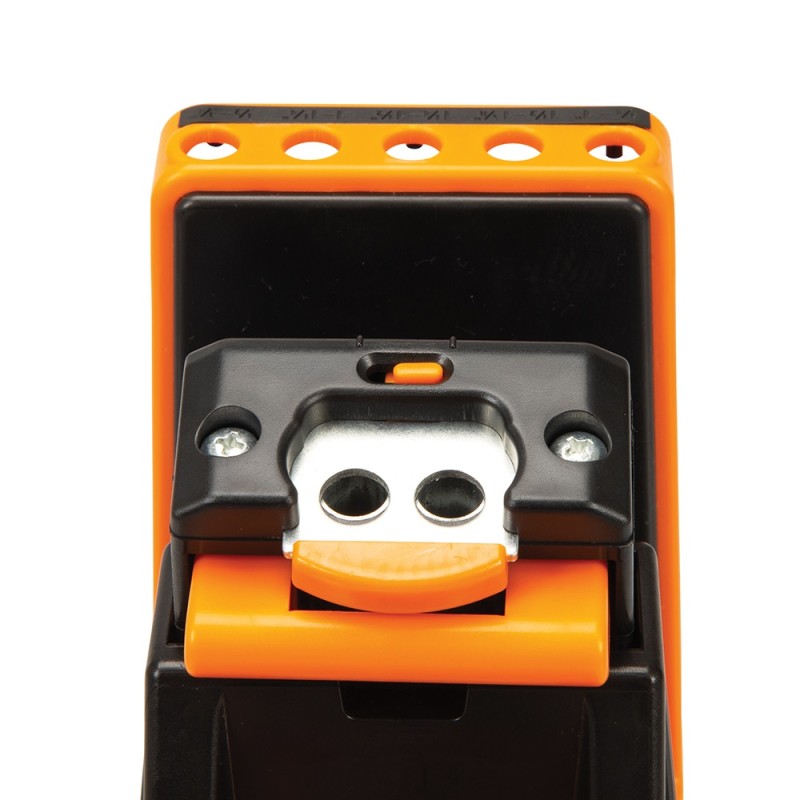

1. Place the Drill Bit into one of the drill guides and adjust the Depth Adjuster to the required depth, using the depth scale on the side of the Depth Adjuster.

Note: The tip of the drill bit should just enter the corresponding groove at the base of the Jaws.

1. Retract the Drill Bit until it locks in place.

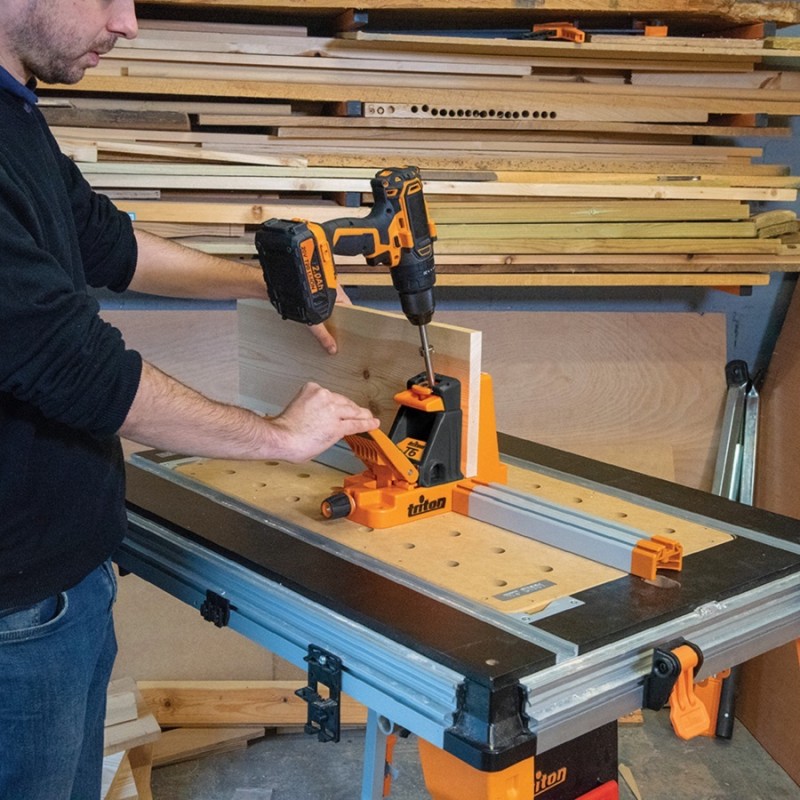

2. Place the workpiece into the Jaws of the Jig and close the Jaws using the Adjuster.
3. Ensure there is just enough space between the Jaws and the workpiece so that the workpiece can be easily moved or replaced.

Note: Use the optional Work Stops to position the workpiece.

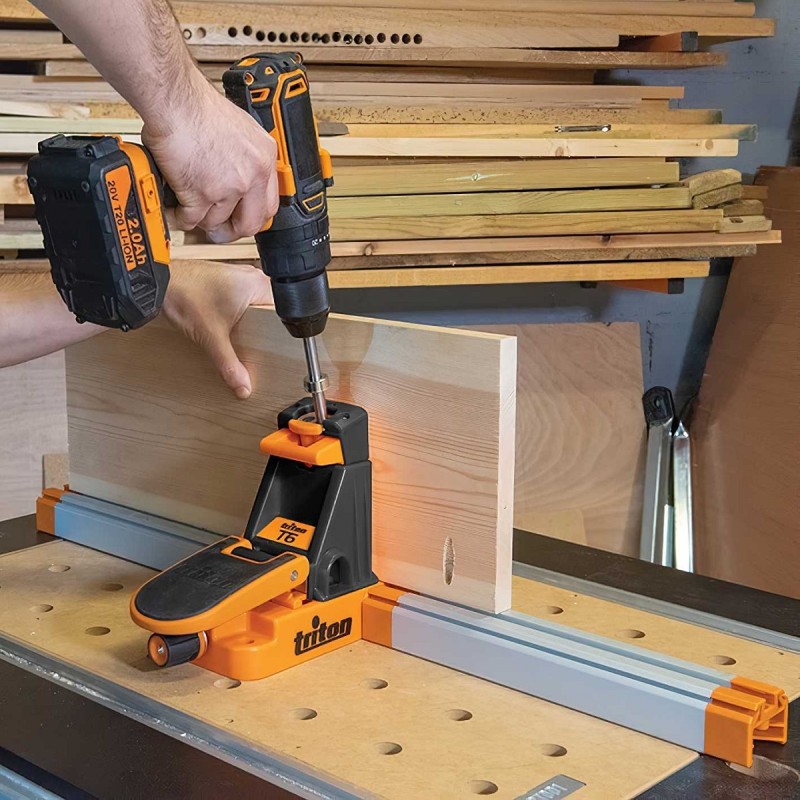

1. Use the Jaw Lever to secure the wood.
2. Connect your drill to the Drill Bit.
3. Start the drill and slowly engage the Drill Bit until the Collar contacts the Jig.

Note: The drill will automatically disengage the lock when it starts spinning.

Note: Use the drill on the fast setting and maintain a high speed whilst drilling.

1. Retract the Drill Bit until it engages with the lock and switch OFF the drill
2. Release the Jaw Lever and reposition or remove the workpiece
3. After drilling all the holes, the piece is ready for assembly using the pocket-hole screws and plugs

Note: The Jig can be used without the SpeedDrive by disengaging the lock.

The Pocket Hole Jig can be used for joining panels.

When planning the placement of your pocket holes, keep in mind that the screws should go into the edge grain or the face grain, but not into the end grain.

Using the end grain can result in a weak joint.
