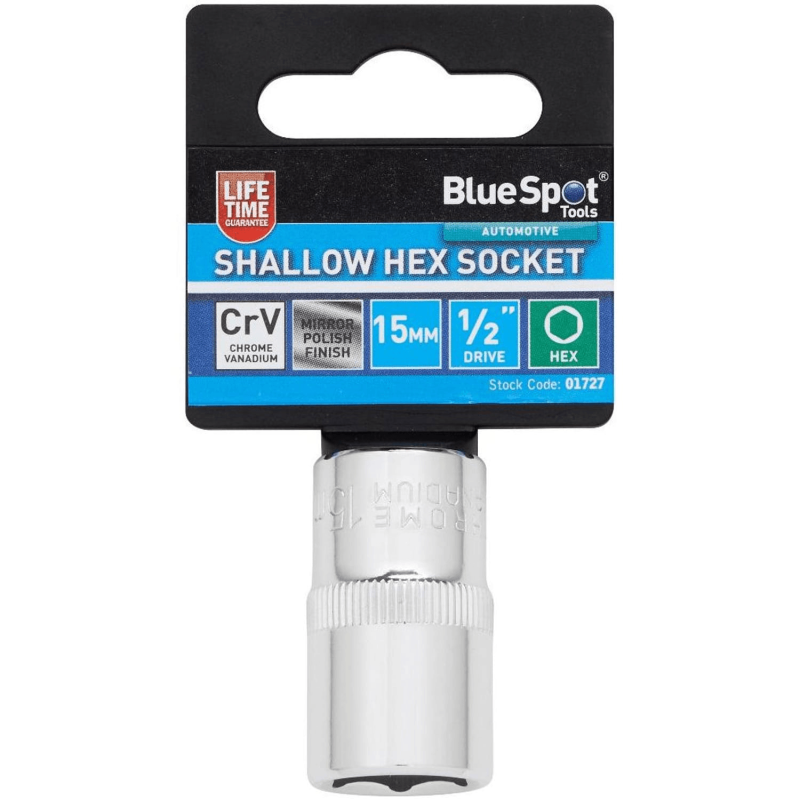

Blue Spot Tools Individual 15mm Shallow Hex Socket (1/2" Drive) 01727

Blue Spot Tools Individual 15mm Shallow Hex Socket (1/2" Drive)

MPN: 01727

Barcode: 5028734017274

Size: 15mm

Weight: 0.06kg

Overview:

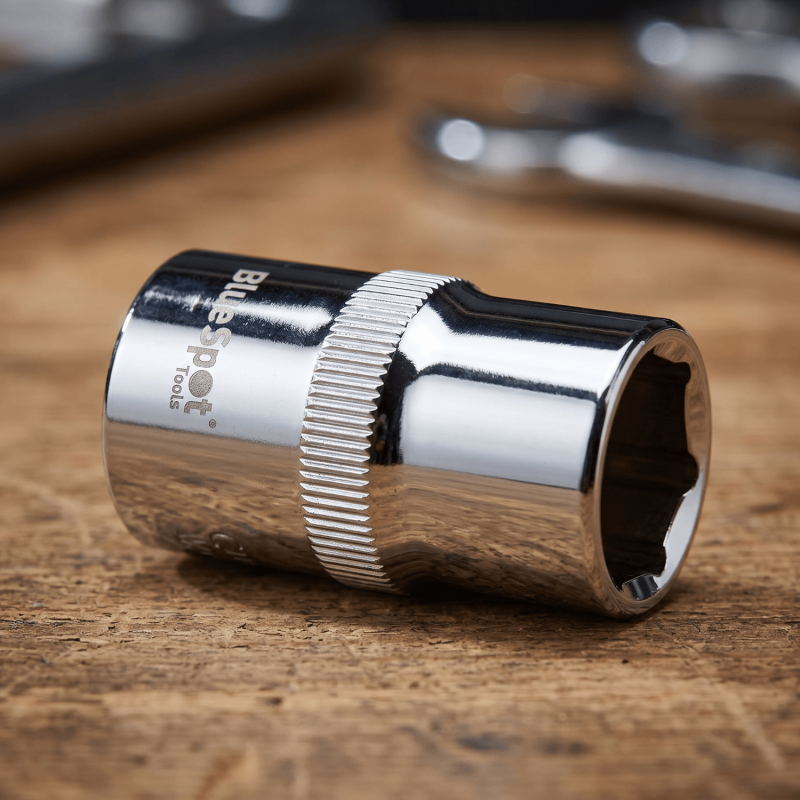

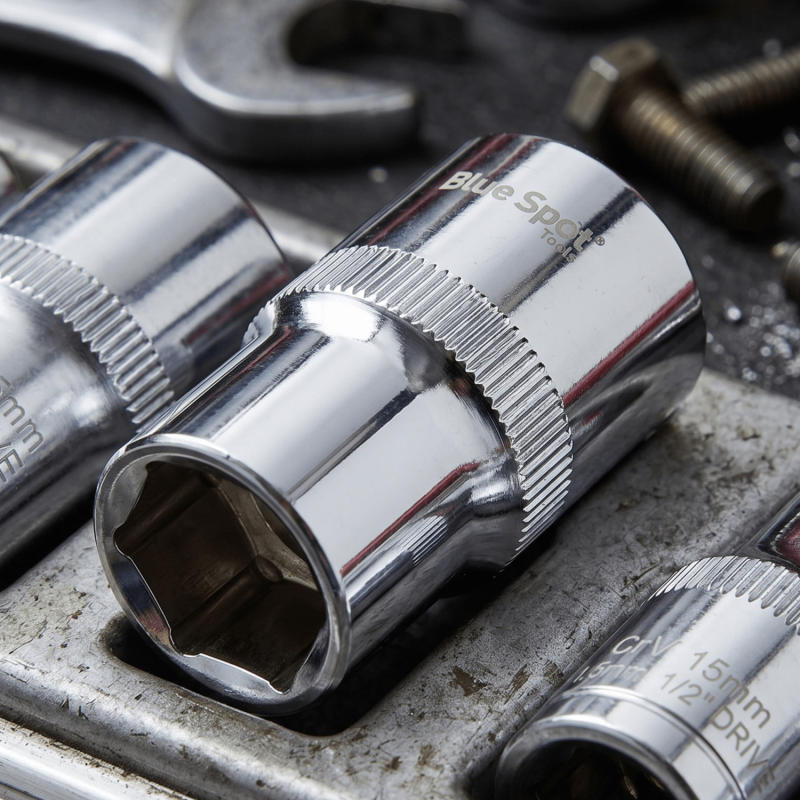

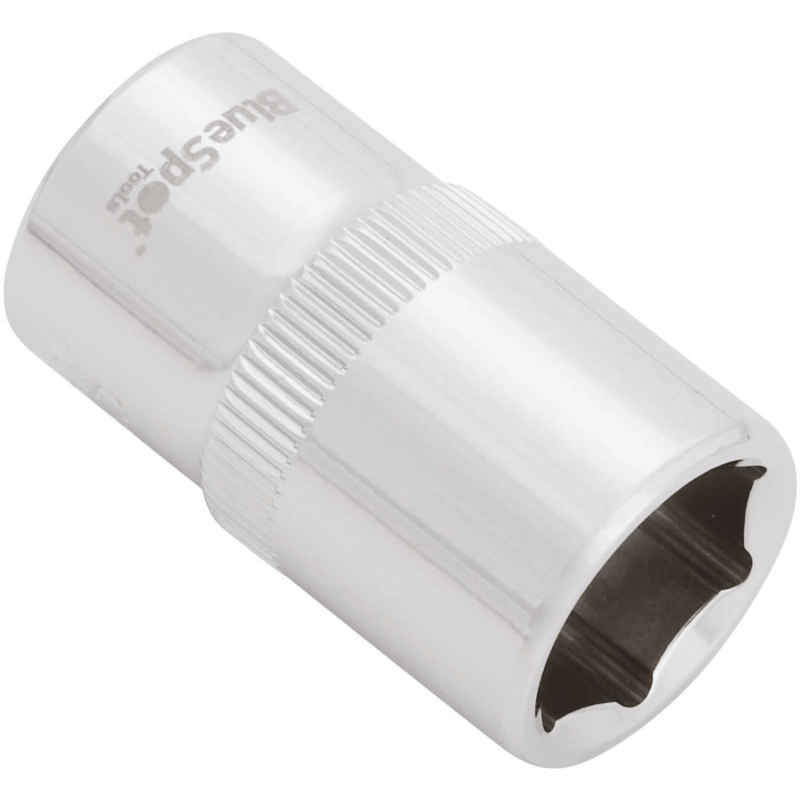

The Blue Spot Tools 15mm Shallow Hex Socket is a 1/2" drive hand tool socket built from chrome vanadium steel. CrV construction provides the torque capacity for high-load fasteners within the 331Nm rated limit.

The mirror-polished finish gives a corrosion-resistant surface and can be cleaned quickly. A knurled band at the midsection provides a textured contact area for fitting or removing the socket by hand.

At 38mm deep, the socket works on bolt heads in access points where clearance above the fastener is tight. It connects to any 1/2" drive ratchet, breaker bar, or torque wrench without an adapter.

Key Features and Benefits

• CrV Steel: Provides the torque capacity and material strength for hand-driven high-load work
• 331Nm Rated: Handles the high-torque range for 15mm metric fasteners
• Six-Point Hex: Contacts the flat faces of the fastener head, reducing rounding under load
• Mirror Polished Finish: Corrosion-resistant surface that stays clean in working conditions
• Knurled Midsection Band: Textured contact area for placing and removing the socket by hand
• 1/2" Drive: Connects to ratchets, breaker bars, and torque wrenches without adapters
• 38mm Depth: Works in tight access points where clearance above the fastener is limited

Specs & Attributes

• Size: 15mm
• Drive: 1/2"
• Type: Hex (6-point)
• Material: Chrome Vanadium (CrV)
• Finish: Mirror polished with knurled grip band
• Max Torque: 331Nm
• Depth: 38mm
• Weight: 0.06kg

Typical Applications

• Timing belt tensioner and idler pulley fasteners
• Small engine bracket and cover bolts
• Brake line and fuel line bracket hardware
• Ancillary component mounting bolts
• General workshop use on 15mm metric fasteners with 1/2" drive tools

How to Use

• Check the Fastener Size: Confirm the bolt head measures 15mm across the flat faces before fitting the socket.

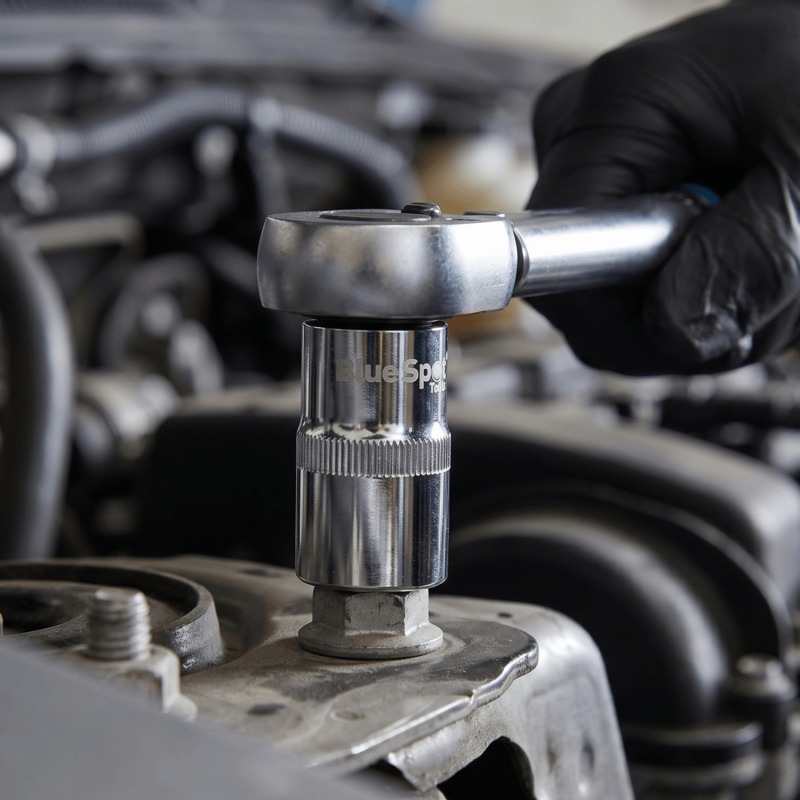

• Connect to the Drive Tool: Attach the socket to a 1/2" drive ratchet, torque wrench, or breaker bar.

• Seat the Socket: Place the hex opening over the fastener and verify it sits flat with no movement before applying force.

• Apply Torque: Drive the fastener in the correct direction - do not exceed 331Nm.

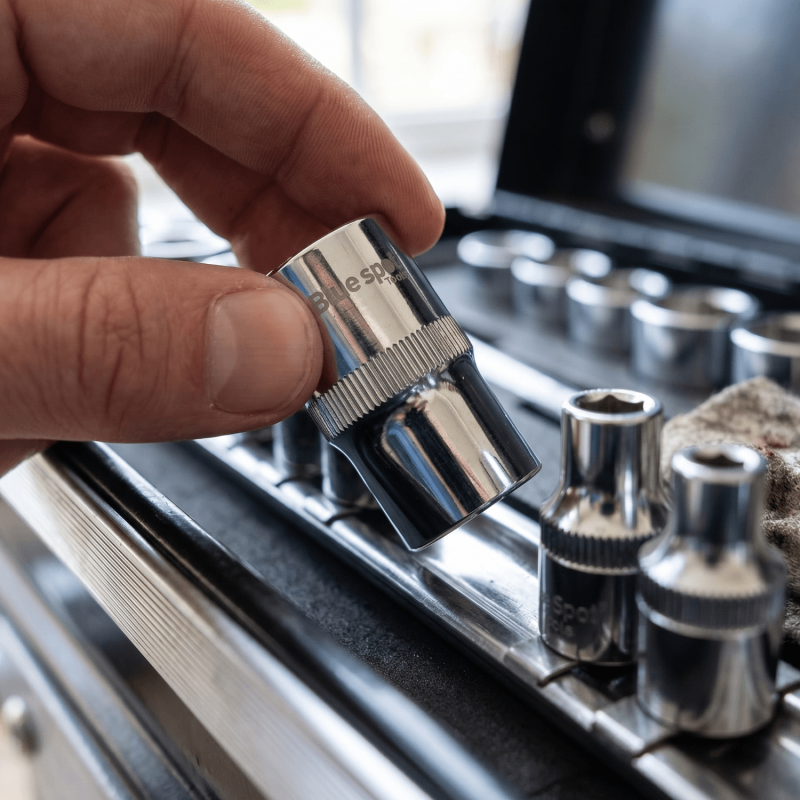

• Remove the Socket: Disengage the drive tool and grip the knurled band to pull the socket free.

Frequently Asked Questions (FAQs)

• What is a 15mm socket typically used for?
  A 15mm socket handles a range of smaller automotive fasteners, including timing belt tensioner bolts, engine cover hardware, brake line bracket fixings, and ancillary mounting bolts. It covers a metric size found across a wide range of vehicles and light machinery.

• Can a 1/2" drive socket be used with a smaller drive ratchet via an adapter?
  Yes, a drive adapter allows a 1/2" drive socket to connect to a smaller drive tool, such as a 3/8" ratchet. Bear in mind that the drive size determines how much torque the connection safely handles, so using a 1/2" socket on a smaller drive reduces the effective torque capacity of the assembly. Match the drive size to the torque demands of the fastener where possible.

• What happens if a bolt is overtightened with a socket and ratchet?
  Overtightening can stretch or deform the bolt, strip the thread, or crack the mating component. On components with a manufacturer-specified torque value, exceeding that figure risks mechanical failure or immediate joint damage. Use a calibrated torque wrench whenever a torque specification applies to the fastener.

• Are there different grades of chrome vanadium steel used in tool manufacturing?
  Chrome vanadium refers to an alloy family rather than a fixed single specification. The exact composition and heat treatment vary by manufacturer. What matters practically is that reputable CrV tools are produced and hardened to meet the rated torque and wear requirements for their intended application.

• Can chrome vanadium sockets be used on aluminium components?
  Yes. The socket material does not damage aluminium directly. The risk lies in applying too much torque to aluminium-threaded fasteners, which strip more easily than steel. Always follow the manufacturer's torque specification for aluminium components and use a torque wrench rather than a ratchet alone where a figure is given.

Summary

The Blue Spot Tools 15mm Shallow Hex Socket is a CrV 1/2" drive hand tool socket rated to 331Nm. The 38mm depth suits bolt heads in locations where overhead clearance is restricted. This socket is backed by the Blue Spot Tools Lifetime Guarantee.
