Blue Spot Tools Individual 14mm Shallow Hex Socket (1/2" Drive) 01726

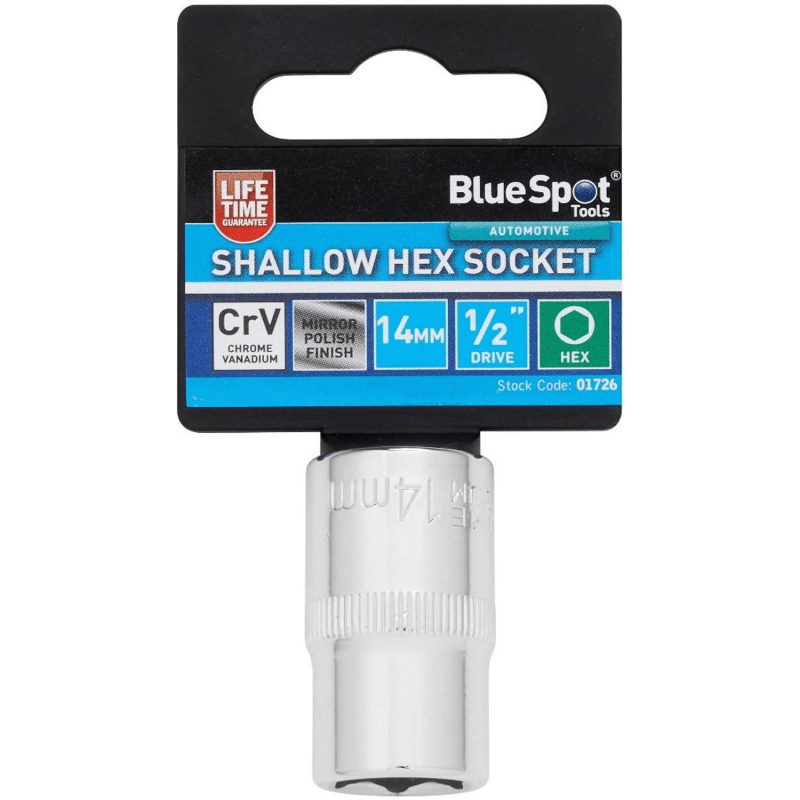

Blue Spot Tools Individual 14mm Shallow Hex Socket (1/2" Drive)

MPN: 01726

Barcode: 5028734017267

Size: 14mm

Weight: 0.06kg

Overview:

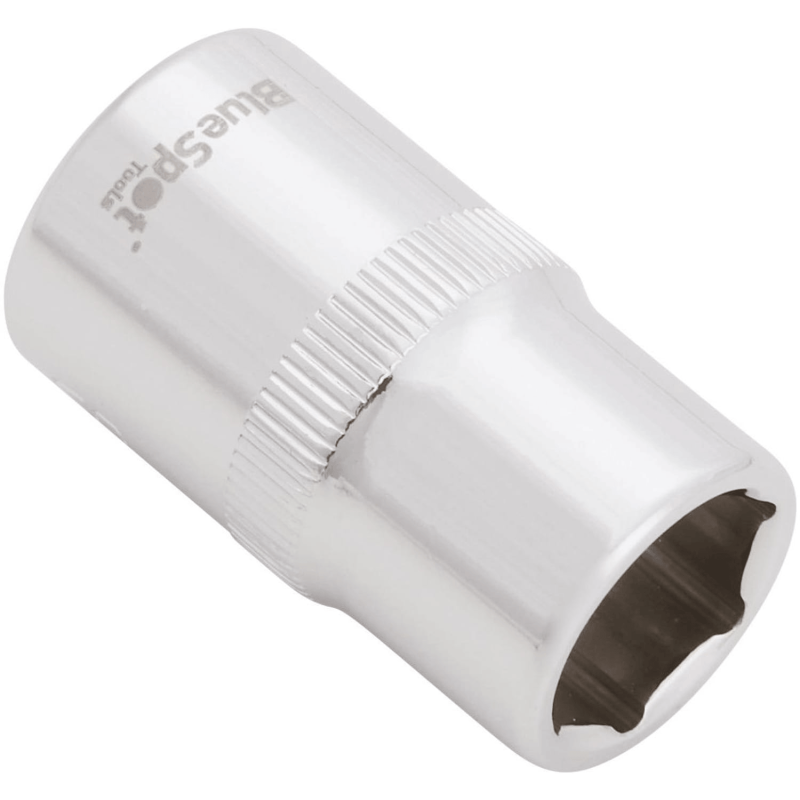

The Blue Spot Tools 14mm Shallow Hex Socket is a chrome vanadium, 1/2" drive hand tool socket. The six-point hex opening contacts all six flat faces of the fastener head simultaneously.

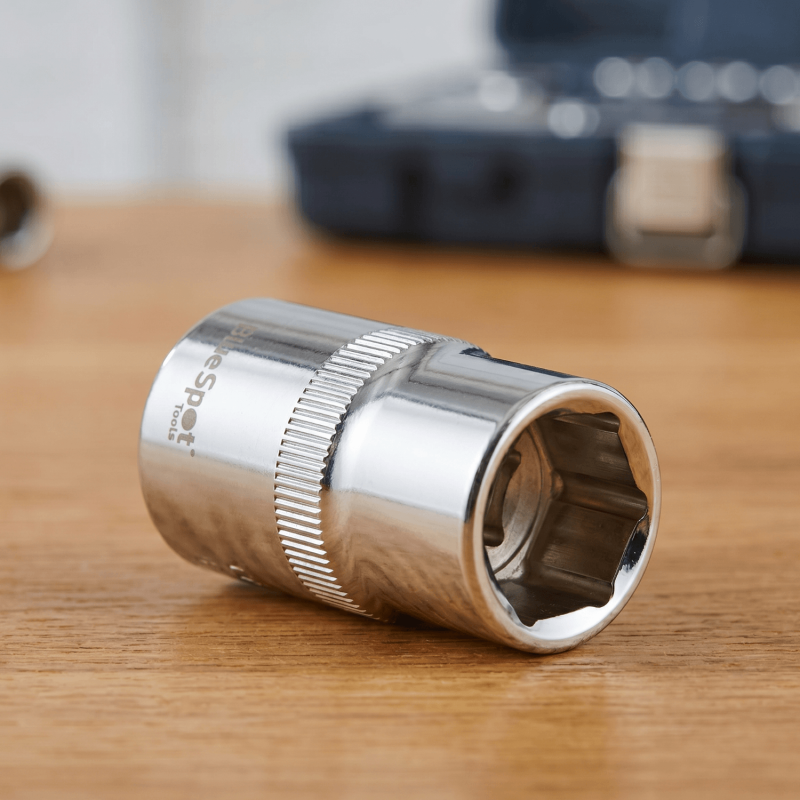

Chrome vanadium(CrV) provides the balance of hardness and wear resistance needed for repeated torque applications. The mirror-polished outer surface is easy to wipe clean, and the knurled grip band around the mid-body gives a secure hold.

The 38mm depth keeps the socket height compact. Any standard 1/2" drive ratchet, breaker bar, or torque wrench connects directly.

Key Features and Benefits

• Chrome Vanadium Steel: Provides hardness and wear resistance for repeated torque applications
• 288Nm Torque Rating: Rated for high-torque hand tool work on 14mm metric fasteners
• Six-Point Hex Opening: Contacts all six flat faces of the fastener simultaneously, spreading the load
• Mirror Polished Outer Surface: Easy to wipe down and stays presentable in workshop use
• Knurled Grip Band: Secure hold when handling in greasy or oily conditions
• 1/2" Drive Connection: Pairs directly with ratchets, breaker bars, and torque wrenches
• Compact 38mm Depth: Works in recessed or obstructed fastener locations

Specs & Attributes

• Size: 14mm
• Drive: 1/2"
• Type: Hex (6-point)
• Material: Chrome Vanadium (CrV)
• Finish: Mirror polished with knurled grip band
• Max Torque: 288Nm
• Depth: 38mm
• Weight: 0.06kg

Typical Applications

• Engine sump and gearbox drain plug removal and refitting, where applicable
• Smaller suspension and steering component fasteners
• Auxiliary and accessory bracket hardware
• Timing cover and engine bay bracket bolts
• General hand tool work on 14mm metric fasteners with 1/2" drive tools

How to Use

• Confirm the Fastener Size: Check that the bolt head or nut measures 14mm across the flat faces before fitting.

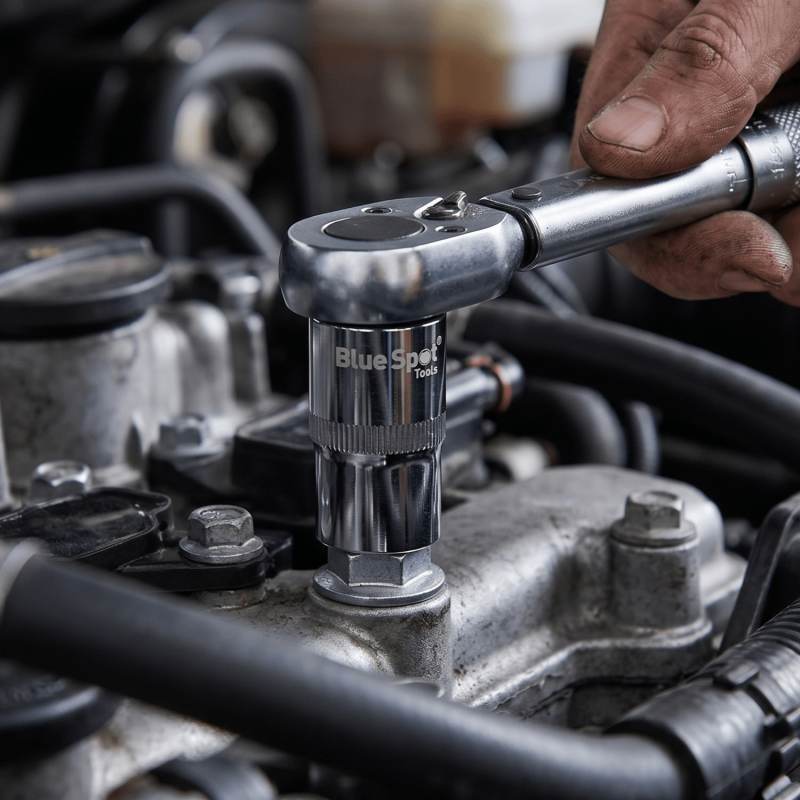

• Attach to the Drive Tool: Connect the socket to a 1/2" drive ratchet, torque wrench, or breaker bar.

• Seat the Socket: Place the hex opening squarely over the fastener and check for full engagement before applying force.

• Drive the Fastener: Apply force in the required direction, staying within the 288Nm limit.

• Remove After Use: Disengage the drive tool and use the knurled band to grip and pull the socket free.

Frequently Asked Questions (FAQs)

• What is a 14mm socket used for?
  A 14mm socket covers engine sump drain plugs on certain vehicles, timing cover hardware, auxiliary bracket bolts, and smaller suspension and steering fasteners. It is a common metric size across many European and Asian vehicle platforms.

• What is the role of chromium in chrome vanadium steel?
  Chromium is added to steel to improve resistance to surface corrosion and oxidation. In chrome vanadium alloys, it works alongside vanadium, which increases hardness and wear resistance, to produce a tool steel with the properties required for repeated high-torque hand tool work.

• How is a hex socket manufactured?
  Sockets are typically produced by cold forging - a process where steel is pressed into shape at room temperature under high pressure. The formed blank is then machined to precise dimensions, heat-treated to achieve the required hardness, and finished with a surface treatment such as mirror polishing.

• Can socket extensions and drive adapters be used together in the same setup?
  Yes. An extension bar and a drive adapter can be combined to add reach and change drive sizes in the same assembly. Each additional connection point in the chain introduces a potential point of stress under high loads, so keep the setup as short as the job allows when applying significant torque.

• Why do bolts have specific torque values?
  A torque value sets the correct clamping force for the joint. Too little torque leaves the fastener loose, which can cause movement, wear, and fatigue failure over time. Exceeding the specified value risks deforming the bolt, stripping threads, or cracking the mating component. The value is calculated by the manufacturer for each specific application.

Summary

The Blue Spot Tools 14mm Shallow Hex Socket is a CrV 1/2" drive hand tool socket rated to 288Nm for metric fasteners in automotive and workshop applications. The compact 38mm depth suits bolt heads in tight or recessed locations. This socket is backed by the Blue Spot Tools Lifetime Guarantee.
