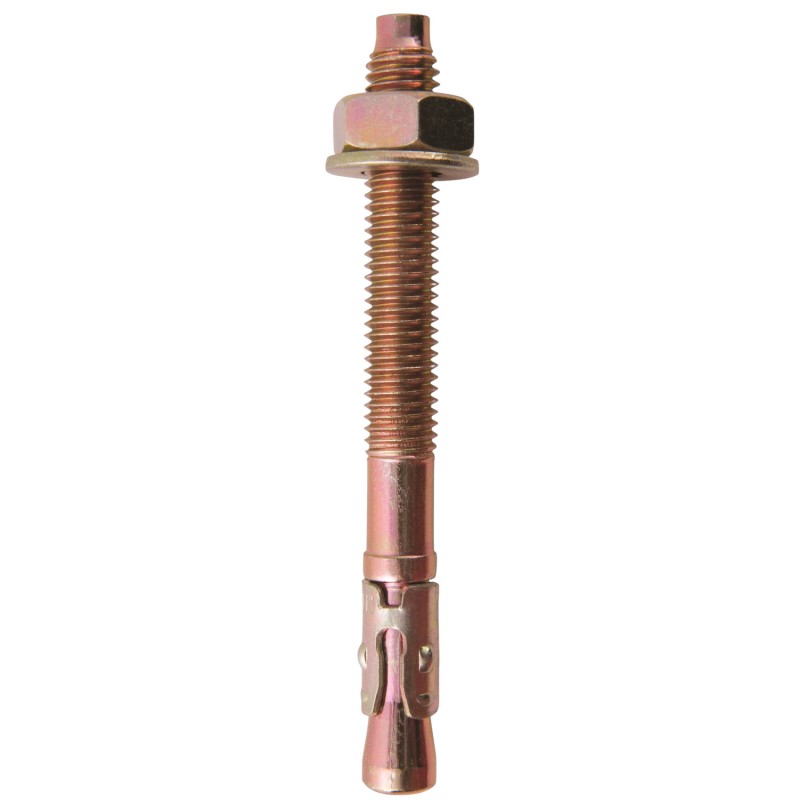

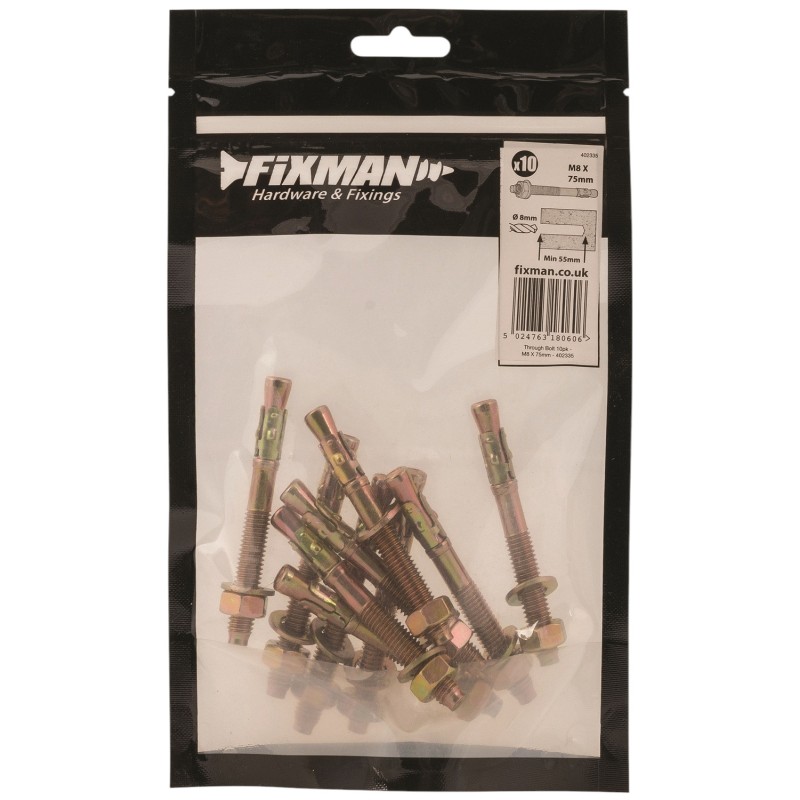

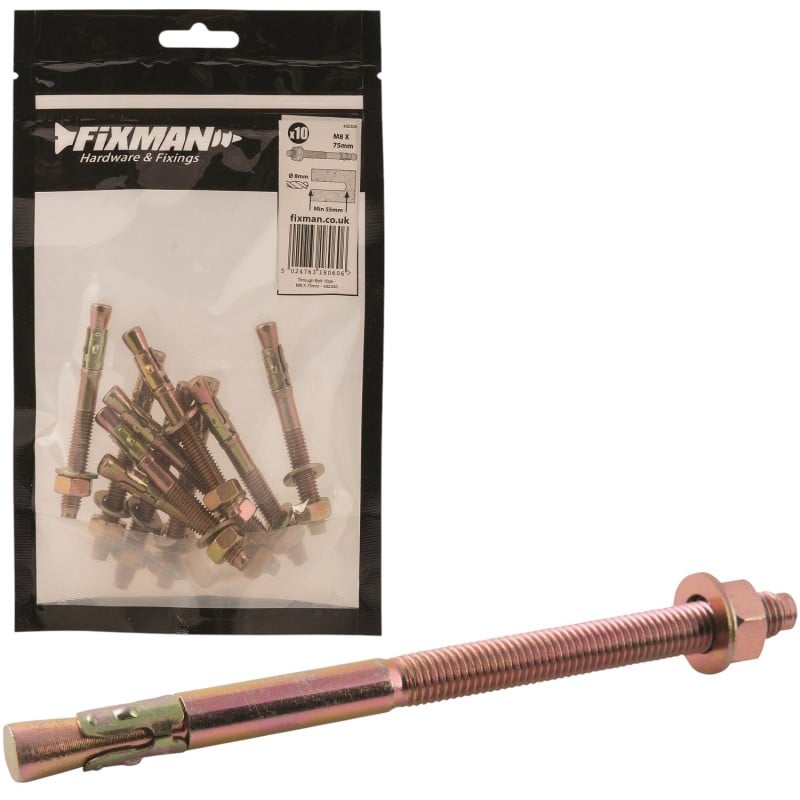

Fixman Through Bolt Masonry Anchor Fixing Pack of 10
M8 - 8 x 35 x 75mm
MPN: 402335
Barcode: 5024763180606
Fixman zinc-plated steel bolts for use in concrete, masonry, metal and wood.
Torque-controlled, heavy duty expansion anchor for rapid fixing of steel and timber assemblies, structural components, baseplates and brackets.
Load-assisted through fixing, eliminating the need for setting out.
Yellow chromated for corrosion resistance
Quick and easy to use:
Simply drill through the work piece.
Insert the through bolt and tighten.
Size guide:
M8 - 8 x 35 x 75mm
M8 = Drill size
35 = maximum material thickness the bolt will fasten 35mm
75mm = length of fixing
Minimum Hole Depth 55mm
Drill Size Required 8mm
Data | |
Reference Code | 402335 |
Option Text | M8 75mm |
