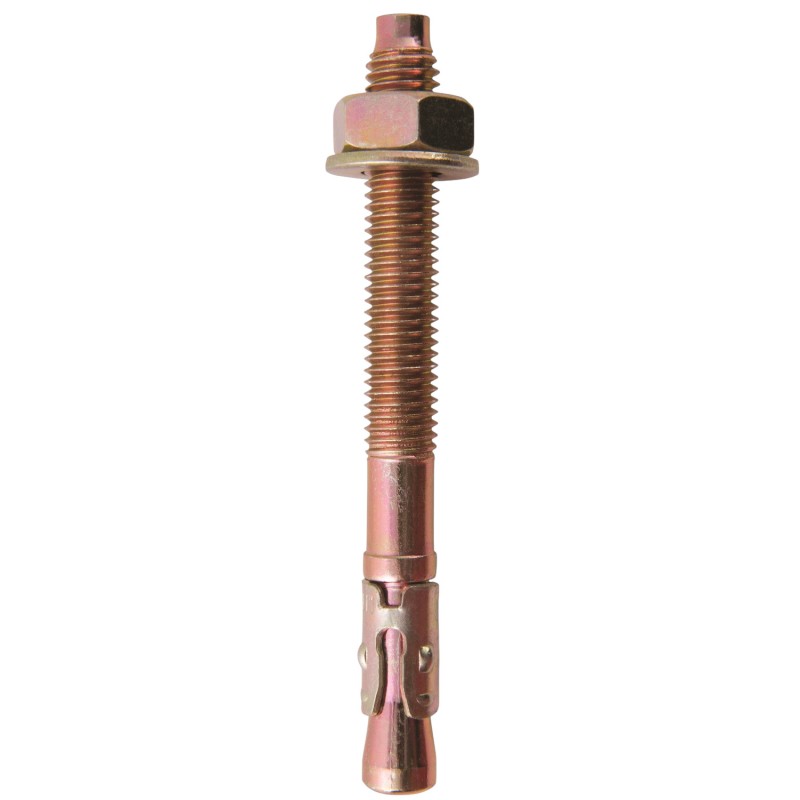

Fixman Masonry Anchor Through Bolt Fixing M12 130mm 10pk 589040

Fixman Masonry Anchor Through Bolt Fixing M12 x 130mm (Pack of 10) – 589040

Size: M12 - 12 x 60 x 130mm

MPN: 589040

Barcode: 5024763181412

Product Overview:

The Fixman M12 x 130mm Masonry Anchor Through Bolt Fixings are built for heavy-duty anchoring in solid masonry such as concrete, brick, and stone. With a 130mm length and M12 diameter, these bolts offer deeper embedment and enhanced holding power, making them ideal for structural and load-bearing applications. Supplied in a pack of 10, they are suitable for professional construction, industrial use, or demanding domestic fixings where strength and reliability are essential.

• Fixman zinc-plated steel bolts for use in concrete, masonry, metal and wood.
• Torque-controlled, heavy duty expansion anchor for rapid fixing of steel and timber assemblies, structural components, baseplates and brackets.
• Load-assisted through fixing, eliminating the need for setting out.
• Yellow chromated for corrosion resistance

Quick and easy to use:

1. Simply drill through the work piece.
2. Insert the through bolt and tighten.

Size guide:

• M12 - 12 x 60 x 130mm.
• M12 = Drill size.
• 60 = maximum material thickness the bolt will fasten 60mm.
• 130mm = length of fixing.
• Minimum Hole Depth 80mm.
• Drill Size Required 12mm

Key Features and Applications:

• Long 130mm length for deeper anchoring

• M12 diameter for superior load capacity

• Zinc-plated steel for corrosion resistance

• Secure through-fix design for fast, accurate installation

• Supplied in a trade-friendly 10 pack

• Ideal for permanent, heavy-duty installations

• Anchoring structural steel and heavy equipment

• Securing base plates, brackets, and racking

• Fixing posts, railings, and metal frames

• Heavy-duty masonry applications in commercial or domestic settings

Specifications:

• Product Code: 589040

• Size: M12 x 130mm

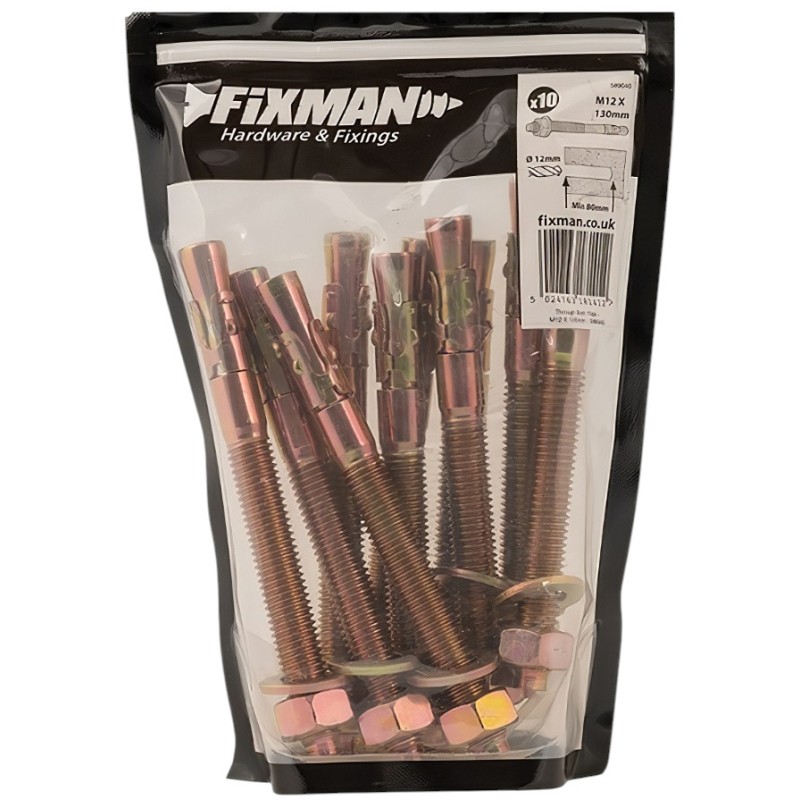

• Quantity: 10 fixings per pack

• Material: Zinc-plated steel

• Installation: Drill correct size hole, insert bolt through fixture, tighten to expand and secure

Frequently Asked Questions:

1. What substrate is this fixing suitable for?
   These are intended for use in solid materials like concrete, brick, and stone.

2. What drill size is required?
   Use a 12mm masonry drill bit for best fit and holding performance.

3. Are nuts and washers included?
   Yes, each bolt comes with a nut and washer for full installation.

4. Can these fixings be used outdoors?
   They offer some corrosion resistance due to zinc plating, suitable for sheltered outdoor or indoor use.

5. Are these bolts suitable for very heavy loads?
   Yes, the M12 size and extended length offer excellent load-bearing strength for demanding applications.

6. Can they be reused after removal?
   No, through bolts are designed for permanent installations and should not be reused.

7. Can I use them overhead or in vertical installations?
   Yes, they are suitable for overhead, wall, and floor fixings with correct load consideration.

8. Are they suitable for hollow blocks or cavity walls?
   No, they must be used in solid masonry for proper expansion and anchoring.

9. How should I prepare the hole for installation?
   Drill to the correct diameter and depth, clean out dust, and ensure a tight fit.

10. What tool is needed to install these bolts?
    A socket wrench or spanner is recommended for tightening the nut and expanding the anchor securely.
