Fixman Through Bolt Masonry Anchor Fixing Pack of 10
Size M10 - 10 x 60 x 120mm
MPN: 891712
Barcode: 5024763180613

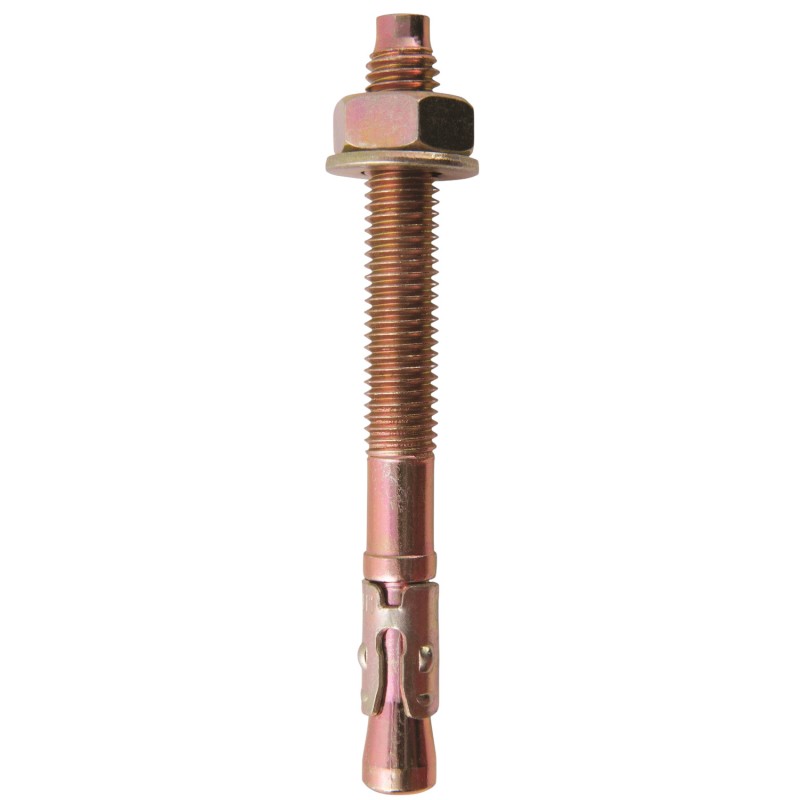

Fixman zinc-plated steel bolts for use in concrete, masonry, metal and wood.
Torque-controlled, heavy duty expansion anchor for rapid fixing of steel and timber assemblies, structural components, baseplates and brackets.
Load-assisted through fixing, eliminating the need for setting out.
Yellow chromated for corrosion resistance
Quick and easy to use:
Simply drill through the work piece.
Insert the through bolt and tighten.
Size guide:
M10 - 10 x 60 x 120mm
M10 = Drill size
60 = maximum material thickness the bolt will fasten 60mm
120mm = length of fixing
Minimum Hole Depth 70mm
Drill Size Required 10mm
Data | |
Reference Code | 891712 |
Option Text | M10 120mm |
