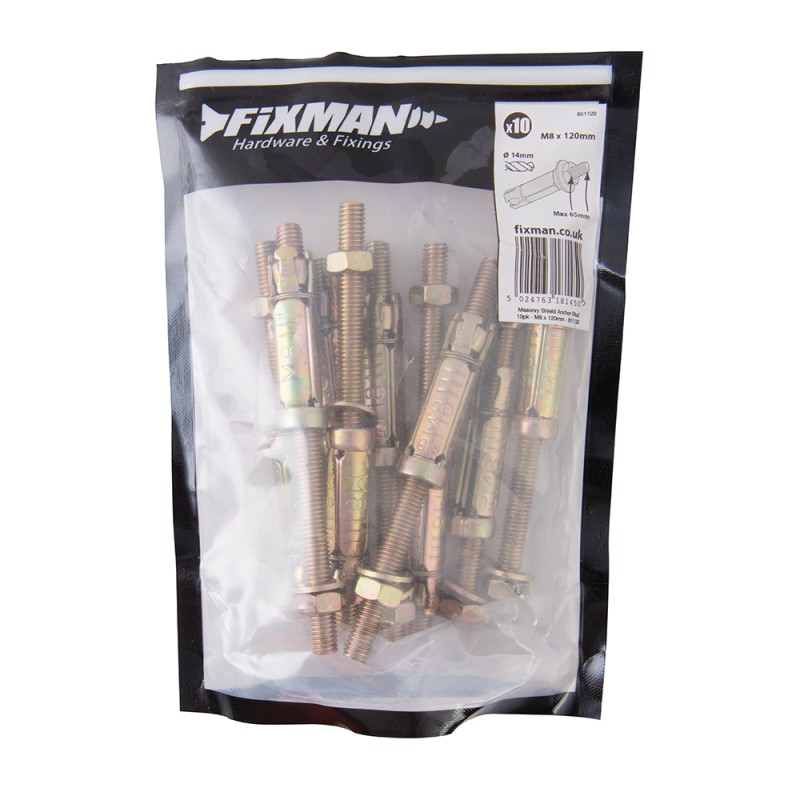

Fixman Masonry Shield Anchor Stud Fixing M8 65 x 120mm 10pk 851120

Fixman Masonry Shield Anchor Stud Fixing M8 - 65 x 120mm, Pack of 10

Barcode: 5024763181450

Code: 851120

Overview:

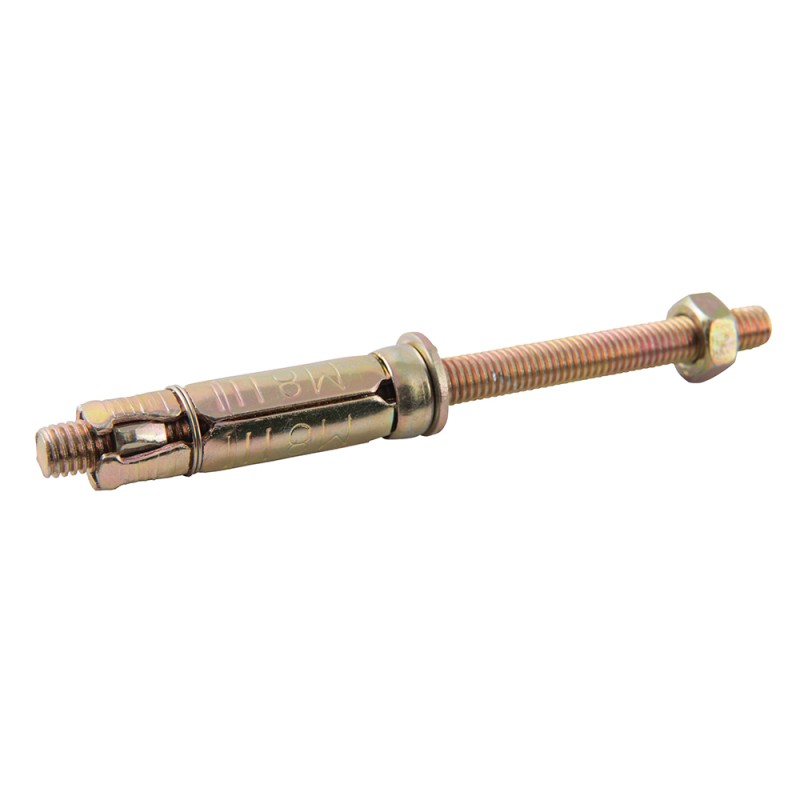

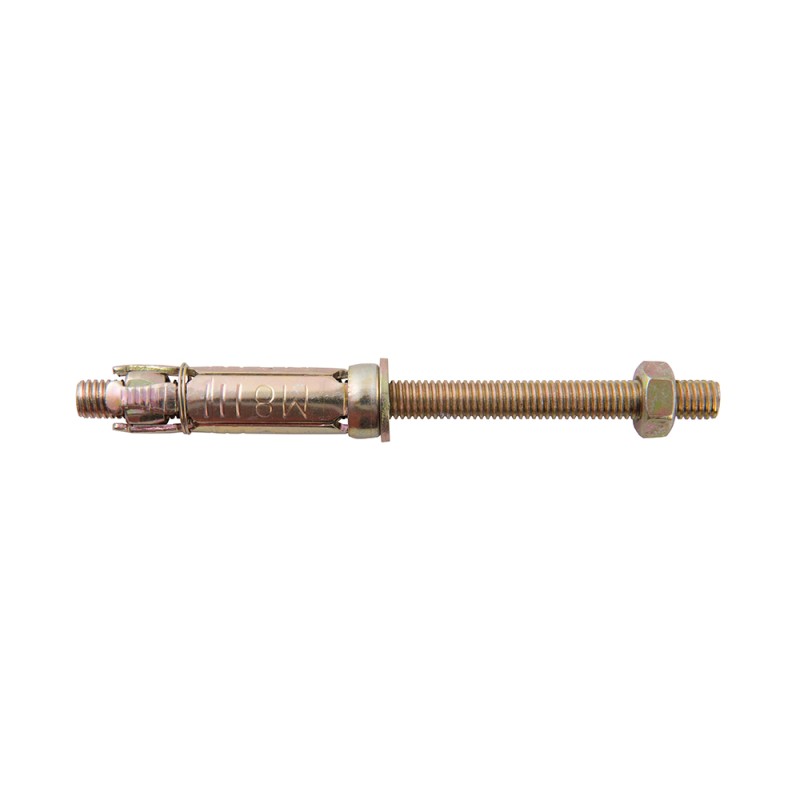

The Fixman M8 (65 x 120mm) Masonry Shield Anchor Stud Fixing is a heavy-duty, torque-controlled expansion anchor designed for strong, dependable fixings in masonry and concrete. Ideal for securing racking, handrails, barriers, storage systems and machinery, it uses a four-way expansion shield to grip firmly as the nut is tightened. Supplied as a complete fixing with shield, stud and nut, this anchor is suitable for both internal and external installations where a reliable hold is essential.

Key Features

• Heavy-duty torque-controlled expansion anchor for masonry and concrete

• Four-way expansion shield for a secure, high-hold fixing

• Yellow passivated finish for improved durability

• Complete fixing supplied with shield, stud and nut

• Suitable for walls and floors, indoor or outdoor use

• Ideal for racking, handrails, barriers, storage systems and machinery

Specifications

• Brand: Fixman

• Product Code: 851120

• Type: Masonry shield anchor stud fixing (torque-controlled expansion)

• Bolt Size: M8

• Max Material Thickness: 65mm

• Total Length: 120mm

• Required Drill Size: 14mm

• Finish: Yellow passivated

• Expansion Type: Four-way expansion shield

• Pack Quantity: 10

Applications

• Fixing racking and shelving systems to masonry/concrete

• Installing handrails, barriers and guard rails

• Securing machinery, brackets and frames

• Anchoring storage systems to walls or floors

• General heavy-duty fixings indoors and outdoors

How to Use

• Drill a 14mm hole to the required depth in sound masonry or concrete

• Clear dust from the hole for best holding performance

• Insert the shield anchor through the fixture and into the hole

• Tighten the nut to expand the shield and secure the fixing

• Check the fixture is firmly seated and re-tighten if required

Fixman Masonry Shield Anchor Stud Fixing M8 65 x 120mm – Key FAQs

• What surfaces can these M8 shield anchors be used in?
  They’re designed for use in masonry and concrete, suitable for fixing into both walls and floors where a strong expansion anchor is required.

• What drill size do I need for this anchor?
  You need a 14mm drill bit to create the correct hole size for the shield to expand and grip properly.

• What does “65 x 120mm” mean?
  It refers to a maximum material thickness of 65mm and a total anchor length of 120mm, helping you choose the right fixing for your installation depth.

• Is everything included in the pack?
  Yes, each fixing includes the expansion shield, stud and nut, so you have the components needed for installation.

• Can these be used outdoors?
  Yes, they’re suitable for internal and external use. The yellow passivated finish improves durability, but always match fixings to the environment and load requirements.
