Fixman Masonry Shield Anchor-Bolt Fixing M8 35 x 90mm 10pk 498997

Fixman Masonry Shield Anchor-Bolt Fixing M8 35 x 90mm 498997 Pack of 10

Barcode: 5024763180736

Code: 498997

Overview:

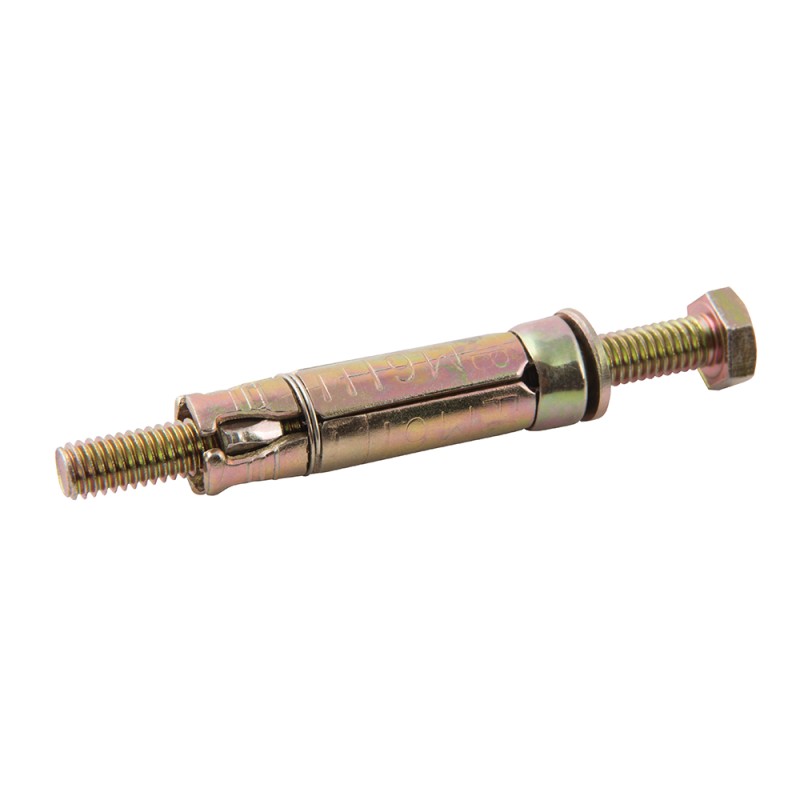

The Fixman M8 35 x 90mm Masonry Shield Anchor-Bolt Fixing (498997) is a heavy-duty, torque-controlled expansion anchor for strong, dependable fixings in masonry and concrete. With a four-way expansion shield and yellow passivated finish, it’s built for secure hold and durability in both indoor and outdoor installations. Ideal for fastening racking, handrails, barriers, storage systems and machinery where a firm, vibration-resistant fixing is essential.

Key Features

• Heavy-duty torque-controlled expansion for secure anchoring

• Four-way expansion shield for strong grip and stability

• Yellow passivated finish for improved corrosion resistance

• Suitable for internal and external masonry/concrete applications

• Complete fixing supplied: shield, stud and nut included

• Reliable option for structural and equipment mounting tasks

Specifications

• Brand: Fixman

• Product Code: 498997

• Size / Type: Masonry shield anchor-bolt (expansion)

• Thread Size: M8

• Max Fixture Thickness: 35mm

• Overall Length: 90mm

• Finish: Yellow passivated

• Expansion: Four-way shield

• Recommended Drill Size: 14mm

• Pack Size: 10

Applications

• Racking and shelving systems

• Handrails, brackets and wall-mounted supports

• Barriers, posts and light structural fixings

• Storage frames and equipment mounting

• Machinery, plant and workshop installations

• General anchoring into brickwork and concrete

How to Use

• Drill a 14mm hole to the required depth in sound masonry or concrete

• Clear dust from the hole (blow out/brush) for best grip

• Insert the shield anchor through the fixture and into the hole

• Tighten the nut to expand the shield and clamp the fixture securely

• Check the fixing is firm and re-tighten if required after initial seating

Fixman Masonry Shield Anchor-Bolt Fixing M8 35 x 90mm – Key FAQs

• What does “M8 35 x 90mm” mean on this Fixman anchor bolt?
  The M8 is the thread size, 35mm is the maximum fixture/material thickness it can clamp, and 90mm is the overall anchor length.

• What drill bit size do I need for the Fixman M8 shield anchor?
  Use a 14mm drill bit to create the correct hole size for the expansion shield to seat and expand properly.

• Can I use these shield anchors in concrete and brick?
  Yes—these are designed for solid masonry and concrete where the expansion shield can grip firmly inside the drilled hole.

• Are these Fixman anchor bolts suitable for outdoor use?
  They can be used externally thanks to the yellow passivated finish, but choose the right fixing for highly corrosive environments.

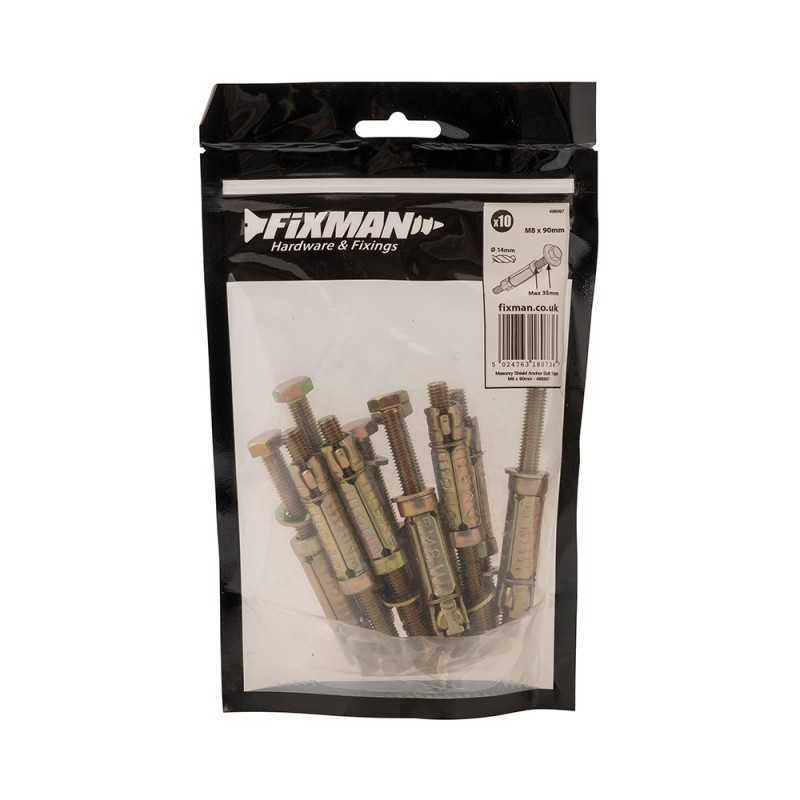

• What’s included in the pack?
  Each anchor is supplied as a complete fixing with the expansion shield, stud and nut, ready for installation.

• What are these anchors best used for?
  They’re ideal for heavy-duty mounting such as racking, handrails, brackets, barriers, storage systems and machinery fixings.

• How do torque-controlled expansion anchors work?
  As you tighten the nut, the shield expands against the sides of the hole, creating a strong mechanical grip in the substrate.
