Fixman Masonry Shield Anchor-Bolt Fixing M8 20 x 75mm 10pk 980160

Fixman Masonry Shield Anchor Bolt Fixing M8 - 20 x 75mm, Pack of 10

Barcode: 5024763180729

MPN: 980160

Overview:

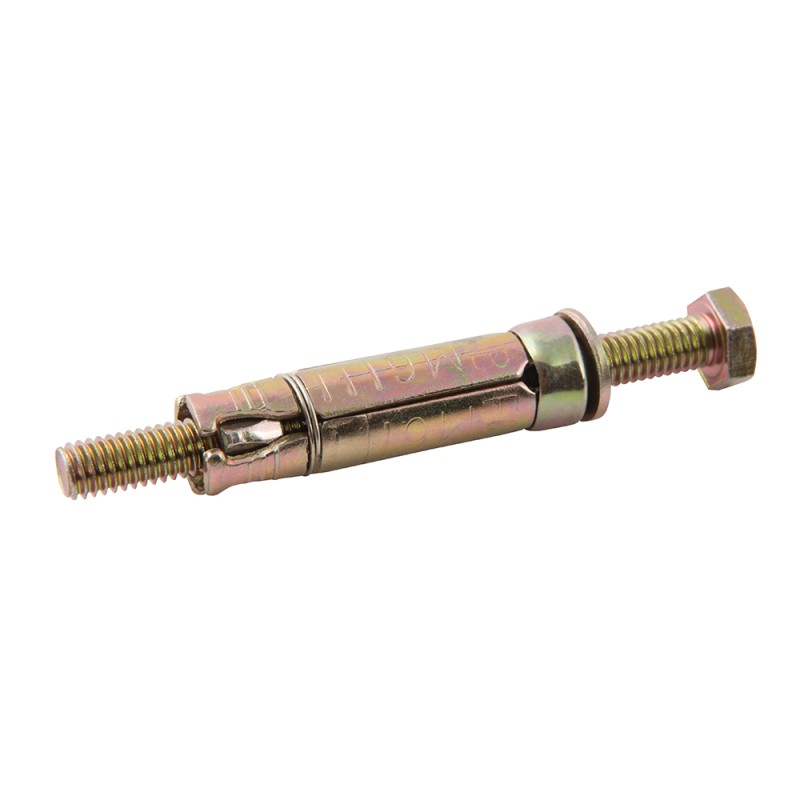

The Fixman M8 20 x 75mm Masonry Shield Anchor Bolt Fixing (MPN 980160) is a heavy-duty, torque-controlled expansion anchor built for secure fastening into masonry and concrete. With a four-way expansion shield and yellow passivated finish, it delivers a strong, stable hold and improved corrosion resistance for both internal and external installations. Supplied in a 10 pack, it’s a dependable choice for fixing racking, handrails, barriers, storage systems, brackets and machinery where a reliable anchor is essential.

Key Features

• Heavy-duty torque-controlled expansion for a secure fixing

• Four-way expansion shield for strong grip and stability

• Yellow passivated finish helps improve corrosion resistance

• Designed for fixing into masonry and concrete

• Suitable for internal and external applications

• Complete fixing supplied: shield, stud and nut included

Specifications

• Brand: Fixman

• MPN: 980160

• Type: Masonry shield anchor bolt (expansion)

• Thread Size: M8

• Max Fixture Thickness: 20mm

• Overall Length: 75mm

• Finish: Yellow passivated

• Expansion: Four-way shield

• Recommended Drill Size: 14mm

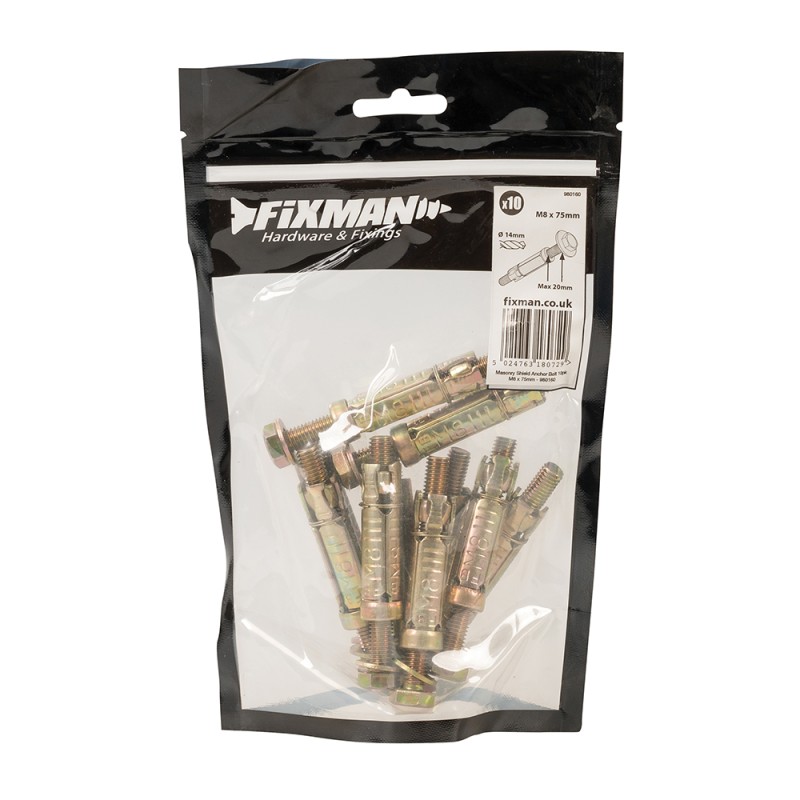

• Pack Size: 10

Applications

• Racking and shelving installation

• Handrails, brackets and wall-mounted supports

• Barriers, frames and general building fixings

• Storage systems and heavy fixtures

• Machinery mounting and workshop equipment

• Secure anchoring into brickwork and concrete

How to Use

• Drill a 14mm hole to the required depth in sound masonry or concrete

• Clear dust and debris from the hole for best performance

• Insert the anchor through the fixture and into the drilled hole

• Tighten the nut to expand the shield and clamp the fixture securely

• Check the fixing is firm and re-tighten after initial seating if needed

Masonry Shield Anchor Bolt Fixing M8 20 x 75mm – Key FAQs

• What does “M8 20 x 75mm” mean on this Fixman anchor bolt?
  M8 is the thread size, 20mm is the maximum fixture thickness it can clamp, and 75mm is the overall length of the fixing.

• What drill bit size do I need for the Fixman M8 shield anchor?
  A 14mm drill bit is recommended to create the correct hole diameter for the expansion shield to seat and expand securely.

• Can I use these Fixman anchors in both brick and concrete?
  Yes, they’re designed for solid masonry and concrete substrates where the shield can expand and grip firmly inside the hole.

• Are these M8 shield anchor bolts suitable for external use?
  Yes, the yellow passivated finish helps resist corrosion, making them suitable for many outdoor and damp-area applications.

• What comes included with each anchor in the pack?
  Each fixing includes the expansion shield, stud and nut, so you have a complete anchor ready to install.

• What are these anchors typically used for?
  They’re ideal for racking, handrails, barriers, brackets, storage systems and machinery mounting where a strong mechanical fixing is required.

• How does a torque-controlled expansion anchor work?
  Tightening the nut expands the shield against the hole walls, creating a strong mechanical grip that clamps the fixture securely in place.
