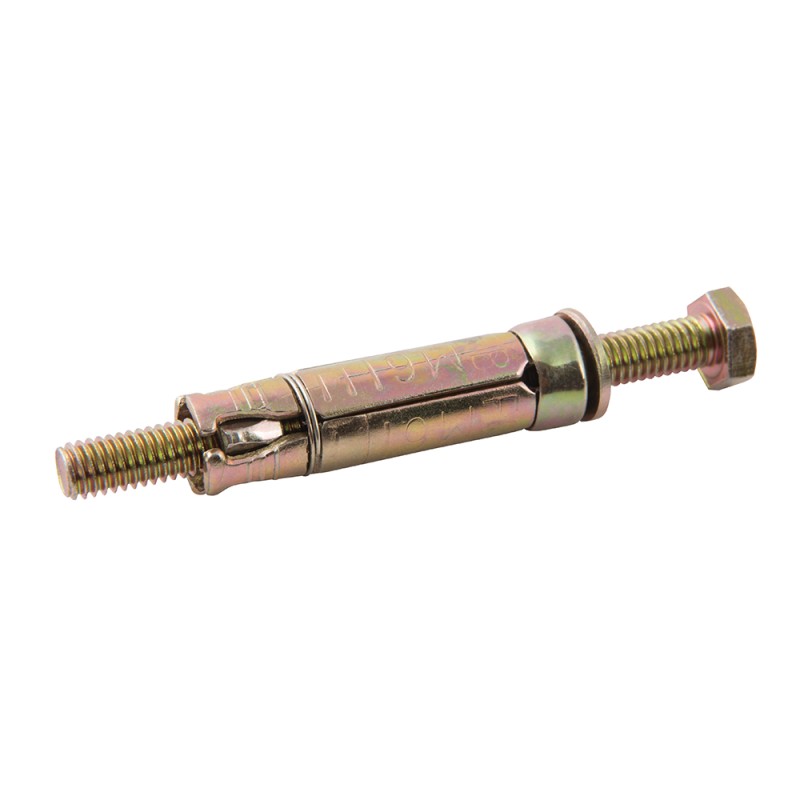

Fixman Masonry Shield Anchor-Bolt Fixing M8 15 x 70mm 10pk 767127

Fixman Masonry Shield Anchor-Bolt Fixing M8 - 15 x 70mm Pack of 10

Barcode: 5024763180712

Code: 767127

Overview:

The Fixman M8 15 x 70mm Masonry Shield Anchor-Bolt Fixing (Code 767127) is a heavy-duty, torque-controlled expansion anchor designed for strong, dependable fixing into masonry and concrete. Featuring a four-way expansion shield and yellow passivated finish, it provides a secure hold and improved corrosion resistance for demanding internal and external installations. Supplied as a 10 pack, it’s ideal for fastening racking, handrails, barriers, storage systems, brackets and machinery with confidence.

Key Features

• Heavy-duty torque-controlled expansion for a secure fixing

• Four-way expansion shield for strong grip and stability

• Yellow passivated steel finish helps resist corrosion

• Designed for fixing into masonry and concrete

• Suitable for internal and external applications

• Complete fixing supplied: shield, stud and nut included

Specifications

• Brand: Fixman

• Product Code: 767127

• Type: Masonry shield anchor-bolt (expansion)

• Thread Size: M8

• Max Fixture Thickness: 15mm

• Overall Length: 70mm

• Finish: Yellow passivated

• Expansion: Four-way shield

• Recommended Drill Size: 14mm

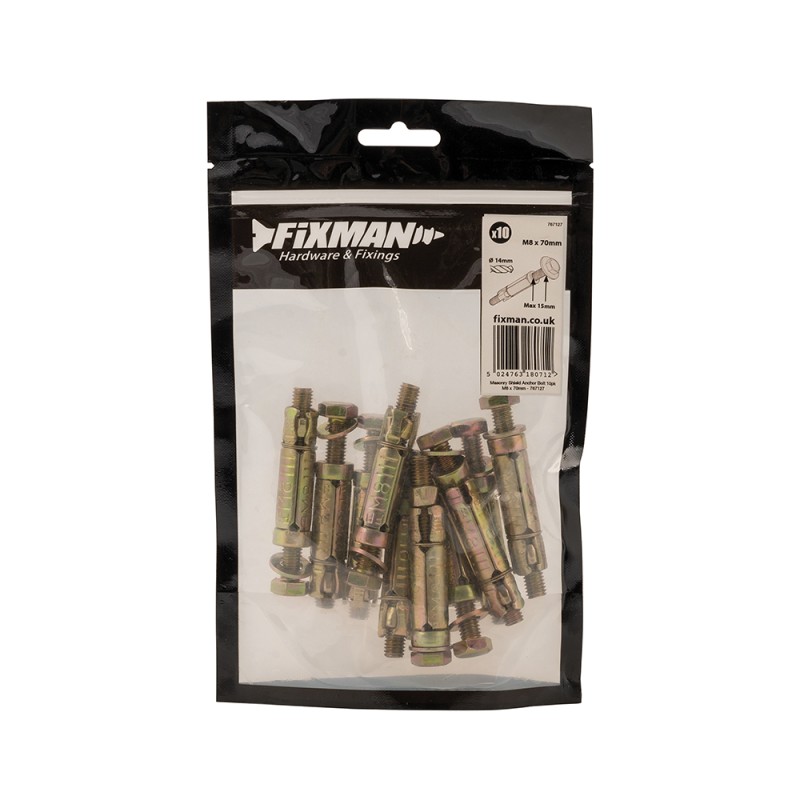

• Pack Size: 10

Applications

• Racking and shelving installation

• Handrails, brackets and wall-mounted supports

• Barriers, frames and light structural fixings

• Storage systems and general building fixings

• Machinery mounting and workshop equipment

• Anchoring into brickwork and concrete

How to Use

• Drill a 14mm hole to the required depth in sound masonry or concrete

• Clear out drilling dust for improved grip and expansion performance

• Insert the anchor through the fixture and into the drilled hole

• Tighten the nut to expand the shield and clamp the fixture securely

• Check the fixing is firm and re-tighten after initial seating if required

Masonry Shield Anchor-Bolt Fixing M8 15 x 70mm – Key FAQs

• What does “M8 15 x 70mm” mean on this Fixman anchor bolt?
  M8 is the thread size, 15mm is the maximum fixture thickness it can clamp, and 70mm is the overall length of the fixing.

• What drill bit size is required for the Fixman M8 shield anchor?
  A 14mm drill bit is recommended to create the correct hole diameter for the shield to seat and expand properly.

• Can I use these anchors in both concrete and brick?
  Yes, they’re designed for solid masonry and concrete where the expansion shield can grip firmly inside the drilled hole.

• Are these Fixman anchor bolts suitable for outdoor use?
  Yes, the yellow passivated finish helps improve corrosion resistance, making them suitable for many exterior and damp-area jobs.

• What comes included with each fixing?
  Each anchor includes the expansion shield, stud and nut, giving you a complete fixing ready for installation.

• What are these M8 shield anchors commonly used for?
  They’re ideal for installing racking, handrails, brackets, barriers, storage systems and equipment where a strong mechanical fixing is needed.

• How does a torque-controlled expansion anchor work?
  Tightening the nut expands the shield against the hole walls, creating a strong mechanical grip that securely clamps the fixture in place.
