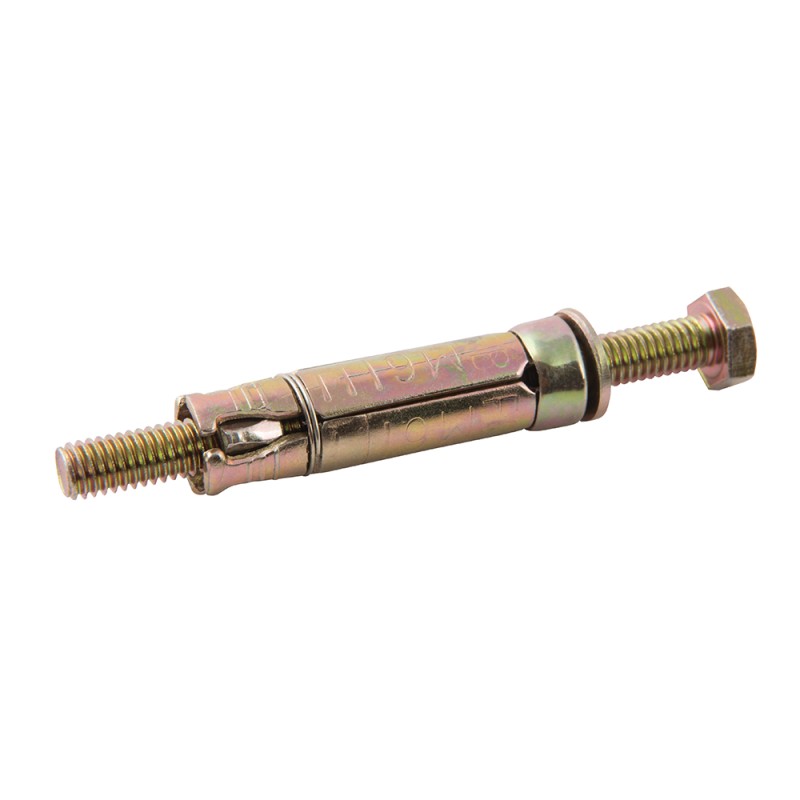

Fixman Masonry Shield Anchor-Bolt Fixing M8 12 x 65mm 10pk 321461

Fixman Masonry Shield Anchor Bolt Fixing M8 12 x 65mm Pack of 10

Barcode: 5024763180705

Code: 321461

Overview:

The Fixman M8 65mm Masonry Shield Anchor Bolt Fixing 12 x 65mm (321461) is a heavy-duty, torque-controlled expansion anchor designed for strong, dependable fixing into masonry and concrete. With a four-way expansion shield and yellow passivated finish, it provides a secure hold and improved corrosion resistance for demanding installations, indoors or out. Supplied as a 10 pack, it’s ideal for fixing racking, handrails, barriers, storage systems, brackets and machinery where you need a firm, stable anchor.

Key Features

• Heavy-duty torque-controlled expansion for a secure fixing

• Four-way expansion shield for strong grip and stability

• Yellow passivated finish helps improve corrosion resistance

• Designed for fixing into masonry and concrete

• Suitable for internal and external applications

• Complete fixing supplied: shield, stud and nut included

Specifications

• Brand: Fixman

• Product Code: 321461

• Type: Masonry shield anchor bolt (expansion)

• Thread Size: M8

• Max Fixture Thickness: 12mm

• Overall Length: 65mm

• Finish: Yellow passivated

• Expansion: Four-way shield

• Recommended Drill Size: 14mm

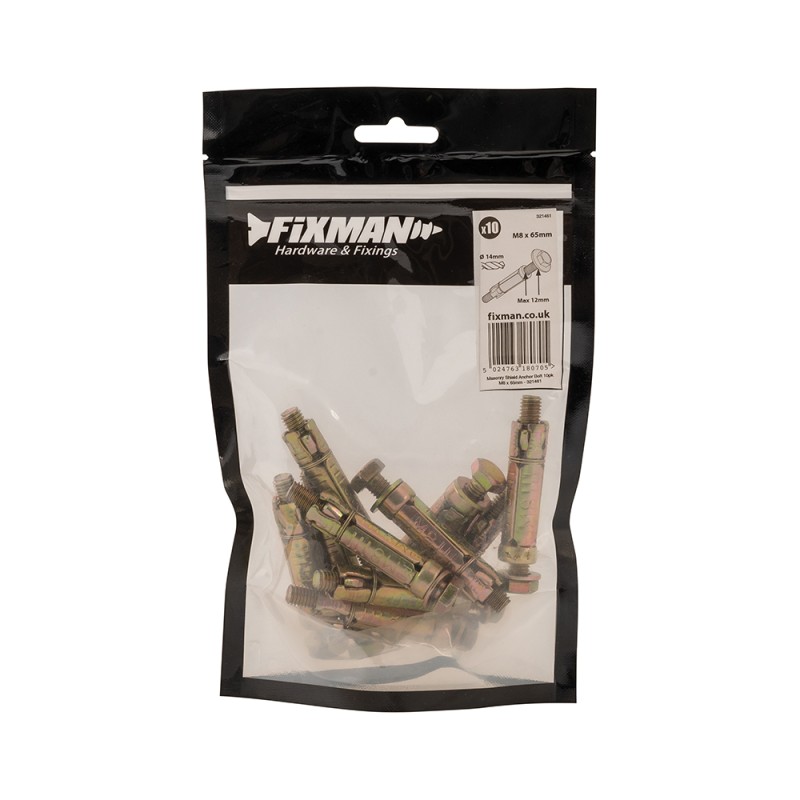

• Pack Size: 10

Applications

• Racking and shelving installation

• Handrails, brackets and wall-mounted supports

• Barriers, frames and general building fixings

• Storage systems and heavier fixtures

• Machinery mounting and workshop equipment

• Secure anchoring into brickwork and concrete

How to Use

• Drill a 14mm hole to the required depth in sound masonry or concrete

• Clear dust and debris from the hole for best expansion performance

• Insert the anchor through the fixture and into the drilled hole

• Tighten the nut to expand the shield and clamp the fixture securely

• Check the fixing is firm and re-tighten after initial seating if required

M8 Masonry Shield Anchor Bolt Fixing 12 x 65mm – Key FAQs

• What does “M8 12 x 65mm” mean on this Fixman anchor bolt?
  M8 is the thread size, 12mm is the maximum fixture thickness it can clamp, and 65mm is the overall length of the fixing.

• What drill bit size do I need for the Fixman M8 shield anchor?
  A 14mm masonry drill bit is recommended to create the correct hole size for the shield to seat and expand securely.

• Can I use these M8 shield anchors in brick and concrete?
  Yes, they’re designed for solid masonry and concrete where the four-way shield can expand and grip firmly in the drilled hole.

• Are these Fixman anchor bolts suitable for outdoor use?
  Yes, the yellow passivated finish helps resist corrosion, making them suitable for many external and damp-area applications.

• What’s included with each fixing in the pack?
  Each anchor includes the expansion shield, stud and nut, giving you a complete fixing ready for installation.

• What are these M8 shield anchor bolts commonly used for?
  They’re ideal for racking, handrails, brackets, barriers, storage systems and equipment mounting where a strong mechanical fixing is required.

• How does a four-way expansion shield work?
  Tightening the nut expands the shield in multiple directions against the hole walls, increasing contact area for a secure, stable hold.
