Fixman Masonry Shield Anchor-Bolt Fixing M10 8 x 68mm 5pk 805235

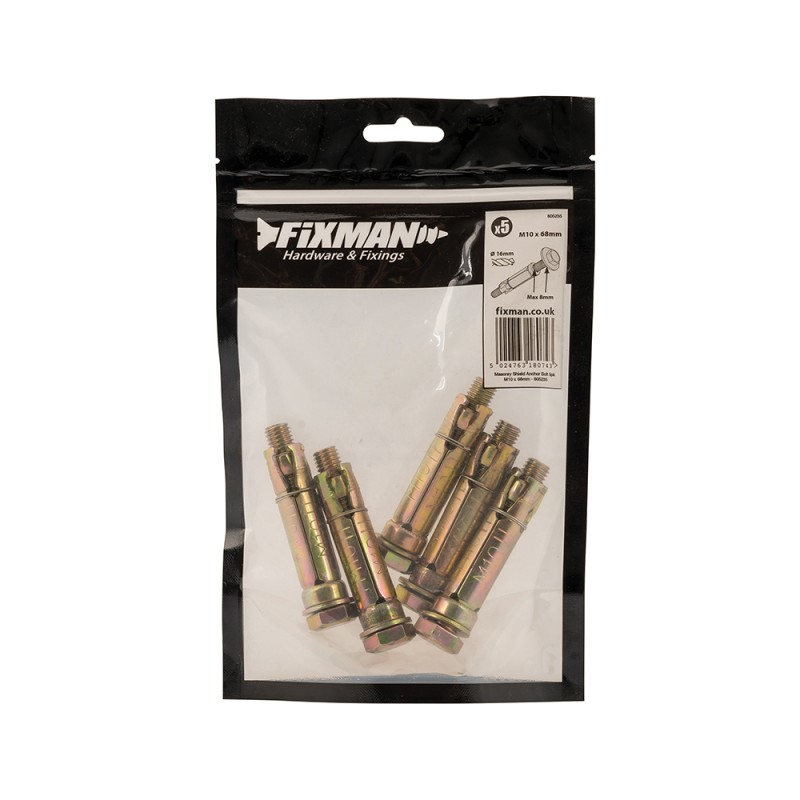

Fixman Masonry Shield Anchor-Bolt Fixing M10 - 8 x 68mm Pack of 5

Barcode: 5024763180743

Code: 805235

Overview:

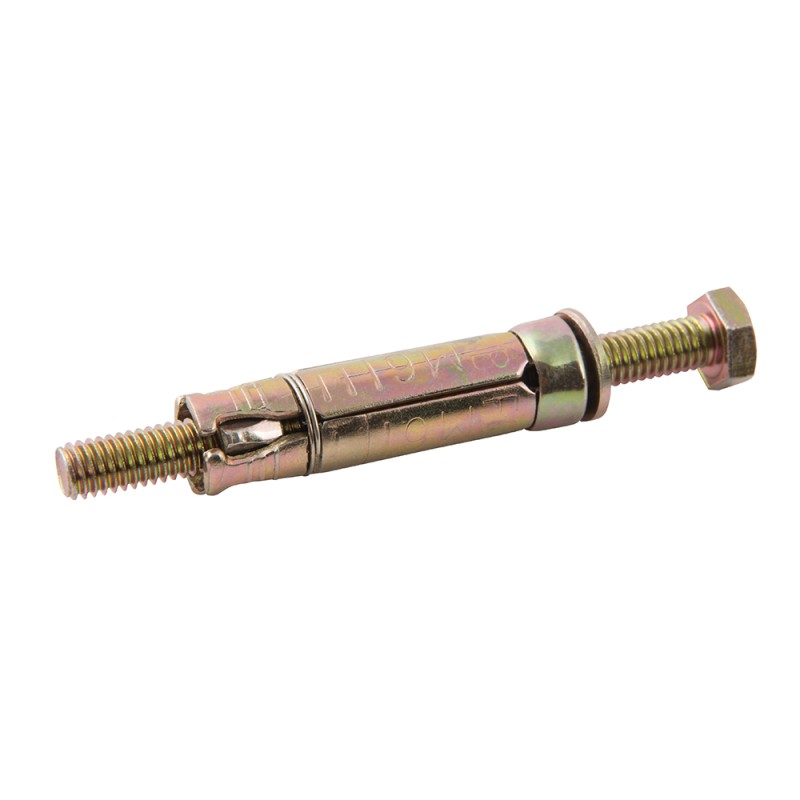

The Fixman M10 8 x 68mm Masonry Shield Anchor-Bolt Fixing (805235) is a heavy-duty, torque-controlled expansion anchor designed for secure fastening into masonry and concrete. Featuring a four-way expansion shield and a yellow passivated finish, it delivers strong holding power and dependable clamping for installations where stability matters. Supplied as a pack of 5, it’s ideal for trade and maintenance jobs needing reliable fixings for equipment, frames and structural supports.

Key Features

• Heavy-duty torque-controlled expansion for a secure, stable fixing

• Four-way expansion shield for improved grip in masonry and concrete

• Yellow passivated finish to help resist corrosion

• Suitable for internal and external installations

• Complete fixing supplied: shield, stud and nut included

• Ideal for mounting brackets, frames, rails and heavy fixtures

Specifications

• Brand: Fixman

• Product Code: 805235

• Type: Masonry shield anchor-bolt (expansion)

• Thread Size: M10

• Max Fixture Thickness: 8mm

• Overall Length: 68mm

• Finish: Yellow passivated

• Expansion: Four-way shield

• Recommended Drill Size: 16mm

• Pack Size: 5

Applications

• Racking, shelving and storage systems

• Handrails, brackets and wall-mounted supports

• Barriers, frames and light structural installations

• Machinery mounting and workshop equipment

• General anchoring into brickwork and concrete

How to Use

• Drill a 16mm hole to the required depth in sound masonry or concrete

• Remove dust from the hole for best grip and performance

• Position the fixture and insert the anchor through the fixing point

• Tighten the nut to expand the shield and clamp the fixture securely

• Check the fixing is firm and re-tighten after initial seating if needed

Masonry Shield Anchor-Bolt Fixing M10 8 x 68mm – Key FAQs

• What does “M10 8 x 68mm” mean on this Fixman anchor bolt?
  M10 is the thread size, 8mm is the maximum fixture thickness it can clamp, and 68mm is the overall length of the anchor.

• What drill bit size is required for the Fixman M10 shield anchor?
  A 16mm drill bit is recommended to create the correct hole size for the shield to seat and expand securely.

• Can I use this anchor in both brick and concrete?
  Yes, it’s designed for solid masonry and concrete where the expansion shield can grip properly inside the drilled hole.

• Is this Fixman anchor bolt suitable for outdoor use?
  Yes, the yellow passivated finish helps with corrosion resistance, making it suitable for many exterior jobs and damp areas.

• What comes included in the pack?
  Each fixing includes the expansion shield, stud and nut, providing a complete anchor solution ready to install.

• What types of jobs is this M10 anchor best for?
  It’s ideal for brackets, frames, rails, racking and equipment mounting where a strong, torque-set expansion fixing is required.

• How does a torque-controlled shield anchor work?
  Tightening the nut draws the stud and expands the shield against the hole walls, creating a strong mechanical grip in the substrate.
