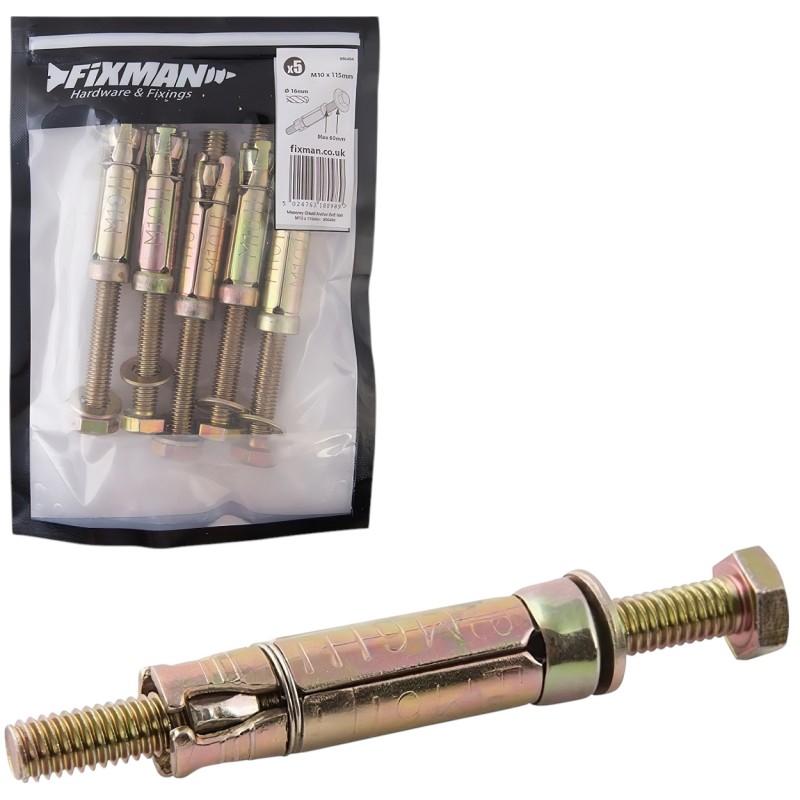

Fixman Masonry Shield Anchor-Bolt Fixing M10 60mm Capacity x 115mm 5pk 956484

Fixman Masonry Shield Anchor Bolt Fixing M10 60mm Capacity x 115mm 956484 Pack of 5

MPN: 956484

Barcode: 5024763180989

Size: M10 60mm x 115mm

Fixman Masonry Shield Anchor Bolt Fixing M10 x 60mm x 115mm (5 Pack) – 956484

Product Overview:
The Fixman M10 x 60mm x 115mm Masonry Shield Anchor Bolt Fixings are designed for securing heavy loads into solid masonry, concrete, stone, and brick. Supplied in a practical 5-pack, these heavy-duty expansion bolts provide exceptional holding power through a mechanical sleeve action that expands when the bolt is tightened. Built for strength and durability, they are ideal for structural fixings, industrial applications, and demanding installations where safety and reliability are critical.

• Fixman heavy duty torque-controlled expansion anchor for installation of racking, hand rails, barriers, storage systems, machinery and numerous other applications.
• Yellow passivated anchor bolt fixing with four-way expansion shield for secure fixing.
• Designed for fixing into masonry and concrete.
• Ideal for internal and external applications.
• Includes shield, stud and nut.

Size guide:

• M10 - 60 x 115mm
• M10 = bolt size
• 60 = maximum material thickness the bolt will fasten 60mm
• 115mm = length of fixing
• Drill Size Required 16mm

Key Features:

• Heavy-duty shield anchor bolts for high-load fixings

• M10 thread with 60mm Capacity and 115mm overall length

• Expanding steel sleeve design provides strong grip in solid masonry

• Zinc-plated steel for corrosion resistance

• Suitable for concrete, brick, block, and stone surfaces

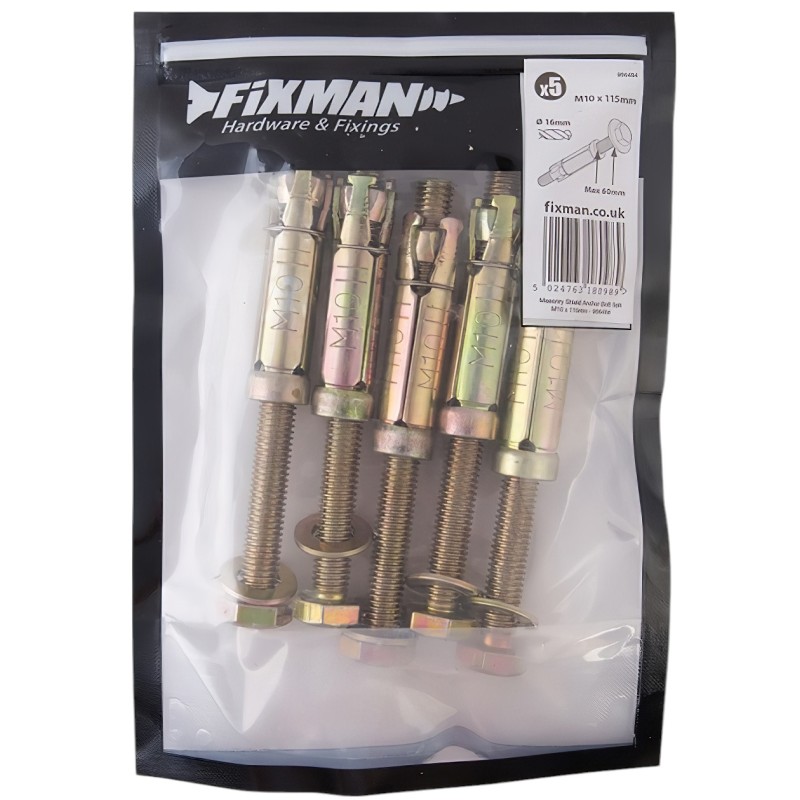

• Supplied in a 5-pack for convenience and value

Applications:

• Securing structural steel and heavy brackets

• Fixing machinery, racking, and frameworks

• Anchoring support rails and safety barriers

• Industrial, construction, and commercial installations

• Heavy-duty fixings in solid walls or floors

Specifications:

• Product Code: 956484

• Thread Size: M10

• Embedment Length: 60mm

• Overall Length: 115mm

• Drill Size Required: 16mm

• Material: Zinc-plated steel

• Fixing Type: Expansion bolt with mechanical sleeve

• Quantity: 5 pieces per pack

Frequently Asked Questions:

1. What type of surfaces are these suitable for?
   These are ideal for solid materials like concrete, brick, and stone—not suitable for hollow walls.

2. What size drill bit is needed?
   A 16mm masonry drill bit is recommended for M10 fixings.

3. Can these be used for outdoor applications?
   Yes, the zinc-plated finish offers corrosion resistance for most outdoor uses.

4. How do the bolts work?
   As the bolt is tightened, the outer sleeve expands inside the hole to grip the masonry securely.

5. Are these reusable?
   No, shield anchors are generally designed for one-time installation.

6. What is the load capacity of each bolt?
   Load capacities depend on the substrate and installation quality—refer to manufacturer guidelines for specific ratings.

7. Is this fixing suitable for hanging radiators or boilers?
   Yes, provided the wall is solid and the load does not exceed the bolt's capacity.

8. Can I install these with hand tools?
   Yes, a wrench or spanner is all that’s needed to tighten the bolt after drilling the hole.

9. Is any additional adhesive or resin required?
   No, these are mechanical fixings and do not require adhesives.

10. Do they come with washers and nuts?
    Yes, the bolts are supplied complete with washer and hex nut for secure fastening.
