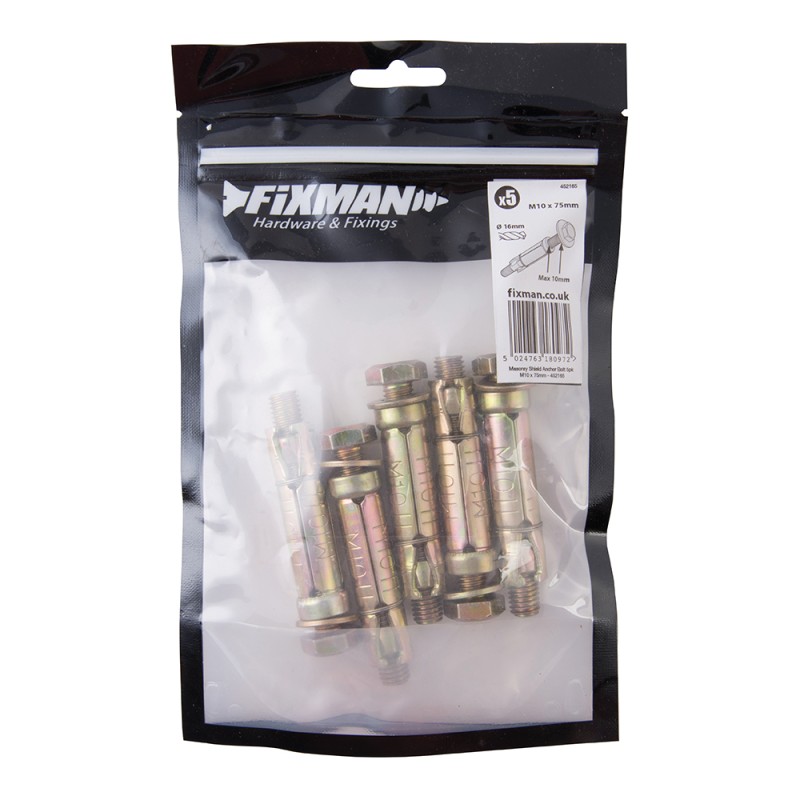

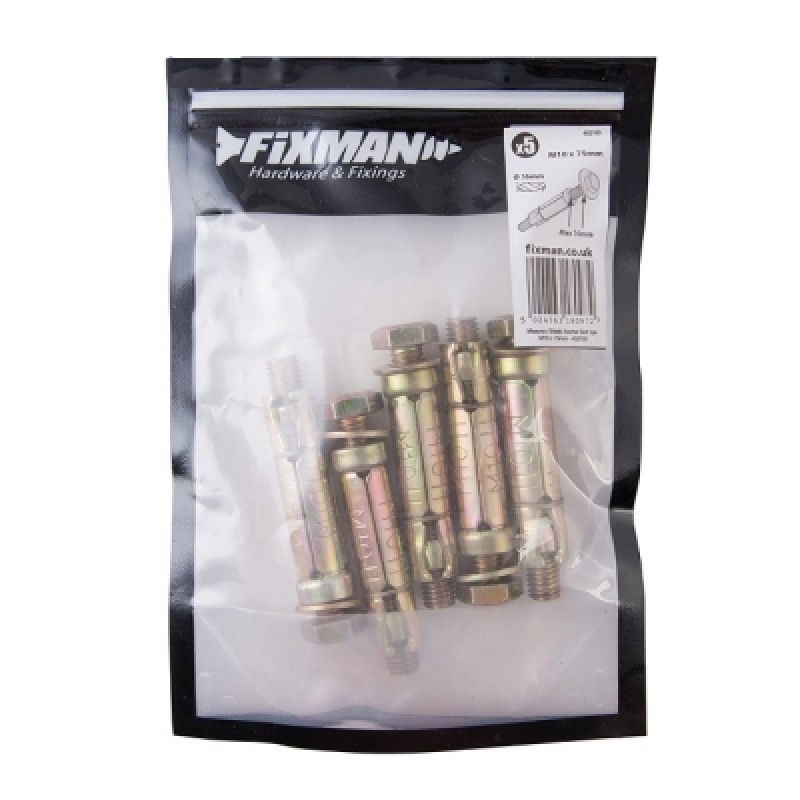

Fixman Masonry Shield Anchor-Bolt Fixing M10 10 x 75mm 5pk 452165

Fixman Masonry Shield Anchor Bolt Fixing M10 10 x 75mm Pack of 5

Barcode: 5024763180972

MPN: 452165

Overview:

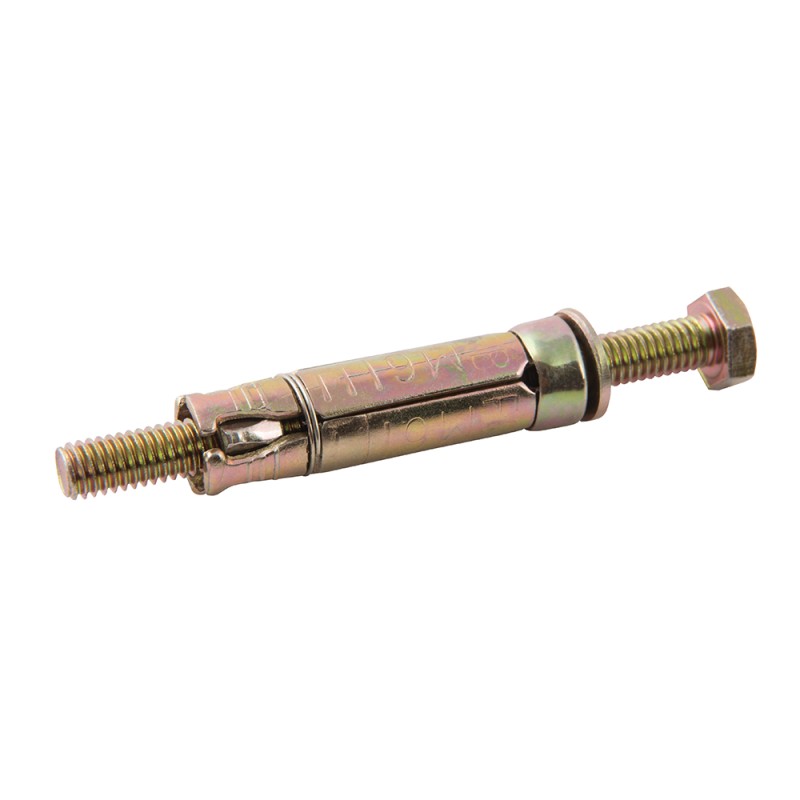

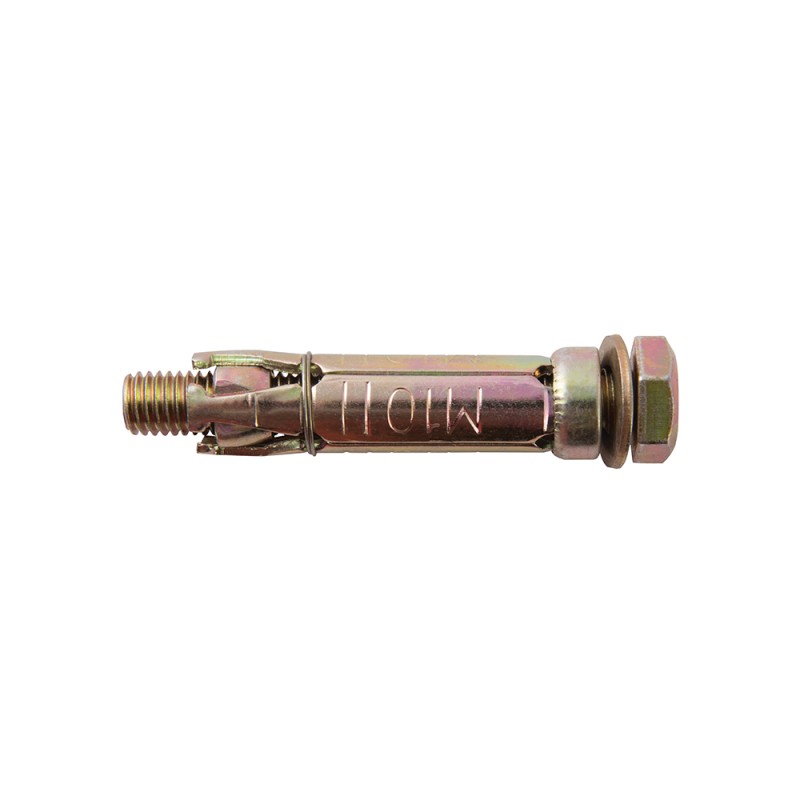

The Fixman M10 10 x 75mm Masonry Shield Anchor Bolt Fixing (MPN 452165) is a heavy-duty, torque-controlled expansion anchor designed for strong, dependable fixing into masonry and concrete. With a four-way expansion shield and yellow passivated finish, it delivers a secure hold for demanding installations, indoors or out. Supplied as a convenient 5 pack, it’s ideal for mounting racking, handrails, barriers, storage systems, brackets and machinery where a firm, reliable anchor is essential.

Key Features

• Heavy-duty torque-controlled expansion for a secure fixing

• Four-way expansion shield for maximum grip and stability

• Yellow passivated finish to help resist corrosion

• Designed for fixing into masonry and concrete

• Suitable for internal and external applications

• Complete fixing supplied: shield, stud and nut included

Specifications

• Brand: Fixman

• MPN: 452165

• Type: Masonry shield anchor bolt (expansion)

• Thread Size: M10

• Max Fixture Thickness: 10mm

• Overall Length: 75mm

• Finish: Yellow passivated

• Expansion: Four-way shield

• Recommended Drill Size: 16mm

• Pack Size: 5

Applications

• Racking and shelving installation

• Handrails, brackets and wall-mounted supports

• Barriers, posts and frames

• Storage systems and general building fixings

• Machinery mounting and workshop equipment

• Secure anchoring into brickwork and concrete

How to Use

• Drill a 16mm hole to the required depth in sound masonry or concrete

• Clear dust and debris from the hole for best performance

• Insert the anchor through the fixture and into the drilled hole

• Tighten the nut to expand the shield and clamp the fixture securely

• Check for a firm hold and re-tighten after initial seating if required

Masonry Shield Anchor Bolt Fixing M10 10 x 75mm – Key FAQs

• What does “M10 10 x 75mm” mean on this Fixman anchor bolt?
  M10 is the bolt thread size, 10mm is the maximum fixture thickness it can clamp, and 75mm is the overall length of the fixing.

• What drill size do I need for the Fixman M10 shield anchor?
  A 16mm drill bit is required to create the correct hole diameter for the expansion shield to seat and expand securely.

• Can I use these anchors in brick and concrete?
  Yes, they’re designed for solid masonry and concrete substrates where the expansion shield can grip tightly inside the hole.

• Are these Fixman anchor bolts suitable for outdoor use?
  Yes, the yellow passivated finish helps improve corrosion resistance, making them suitable for many exterior and damp-area jobs.

• What’s included with each fixing in the pack?
  Each anchor comes complete with the shield, stud and nut, so you have everything needed for installation.

• What are common uses for this type of M10 expansion anchor?
  They’re ideal for mounting racking, handrails, barriers, storage systems, brackets and machinery where a strong mechanical fixing is needed.

• How does a torque-controlled expansion shield work?
  As you tighten the nut, the shield expands against the hole walls, creating a strong mechanical hold that clamps the fixture securely.
