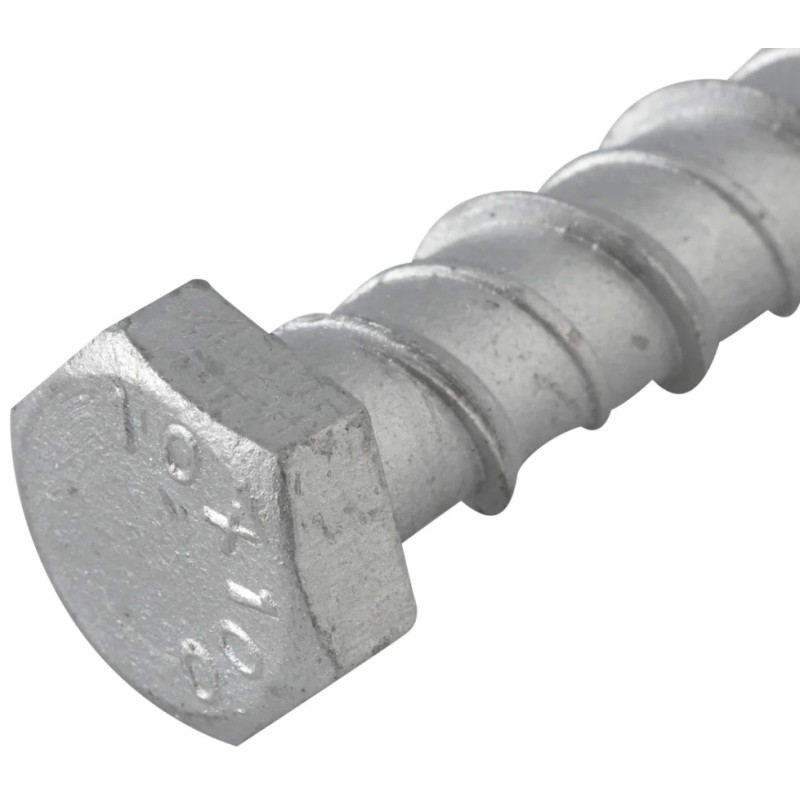

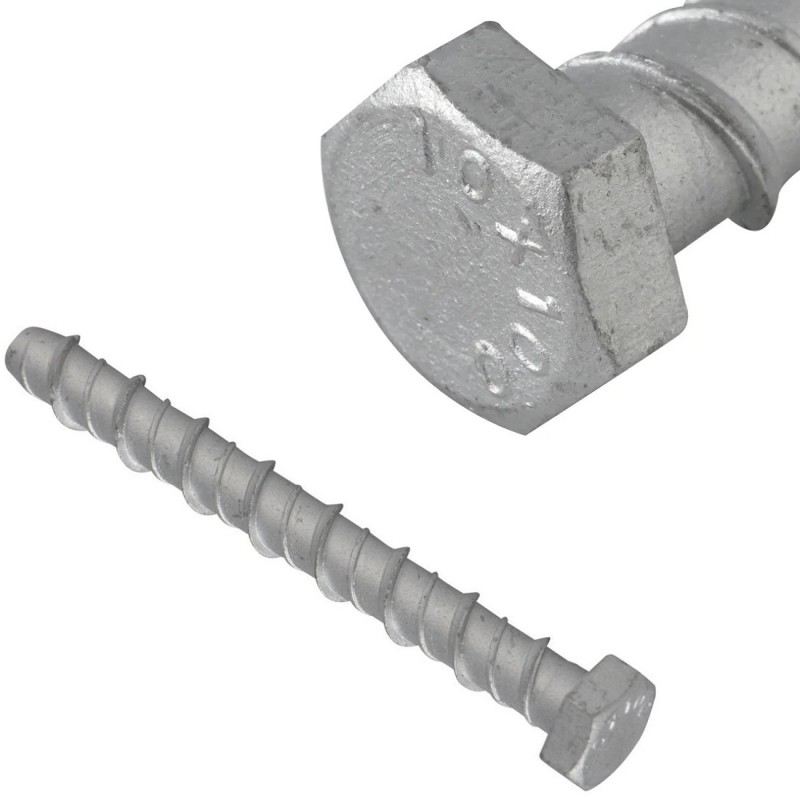

ForgeFix Lightning Concrete Hex Bolt Fixing M10 100mm 10 Pack 10LGB10100

ForgeFix Lightning Concrete Bolts - M10 x 100mm, Grey, Pack of 10

MPN: FORLGB10100

Product Option: LGB10100-10

Barcode: 5028485115045

Product Overview:

The ForgeFix Lightning Bolt is a highly effective, rotation-setting anchor, offering total removability.This medium to heavy-duty thread-forming anchor is ideal for both temporary and permanent anchoring into a variety of base materials, such as brick, concrete, hollow brick, or block work.

The design of the Lightning Bolt makes it especially useful for applications close to the edge, as it does not expand or burst the surrounding base material.With its through-fixing capability, it eliminates the need for marking and repositioning, making installation much faster and more accurate.

Constructed with an Elementech coating, these bolts are designed for superior anti-corrosion protection, having been salt spray tested for 1,000 hours.The integral flange functions as a fixed washer, distributing the load under the bolt head for improved strength.

The hex head allows for optimum torque when used with spanners or sockets, providing a firm and secure hold on the material.Commonly used for securing batons, balustrades, handrails, racking, machinery, and other installation applications, the ForgeFix Lightning Bolt is a reliable solution for various construction needs.

Key Features:

• Drill through the fixture and into the base.
• Simply screw and tighten for a secure hold.

Specifications:

• Head: Hex flange
• Size: M10 x 100mm
• Drill size: 10mm
• Length: 100mm
• Maximum fastening: 50mm
• Minimum hole depth: 50mm
• Quantity: Bag of 10
• Finish: Elementech coated

Frequently Asked Questions:

• What materials are the ForgeFix Lightning Bolts suitable for? The ForgeFix Lightning Bolts are ideal for use with various masonry substrates, including concrete, brickwork, and hollow blocks.Their thread design allows them to anchor securely into these materials for a strong hold.
• Can these bolts be used for outdoor applications? Yes, these bolts feature an Elementech anti-corrosion coating, making them highly resistant to rust and ideal for outdoor use.They've been salt spray tested for 1,000 hours to ensure long-lasting performance even in harsh weather conditions.

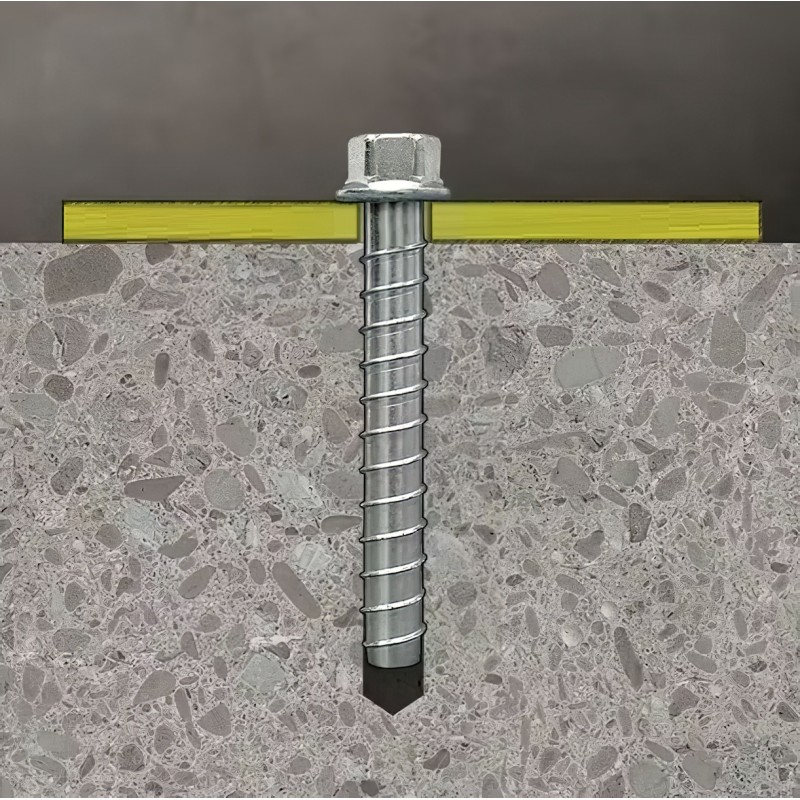

• How do I install the ForgeFix Lightning Bolts? Simply drill a 10mm hole into the base material, then screw the bolt directly into the hole.There's no need for a sleeve or plug, and the bolt acts as a through-fixing, eliminating the need for repositioning.
• What load capacity can the ForgeFix Lightning Bolts handle? These bolts offer a high load capacity due to their thread interlocking into the base material, ensuring a firm and secure fixing.The exact load capacity will depend on the specific material being used.
• Are these bolts reusable? While the ForgeFix Lightning Bolts are designed to be removable, they are primarily intended for one-time use in most applications.However, their self-threading nature allows for easy removal if needed.
• What size hole do I need to drill for the ForgeFix Lightning Bolts? You'll need to drill a 10mm hole to accommodate these M10 x 100mm bolts.Ensure the hole depth is at least 50mm for proper installation.
