Faithfull FAIPLANE4AV Smoothing and Block Hand Plane Set

Faithfull Smoothing and Block Hand Plane Set

MPN: FAIPLANE4AV

Barcode: 5023969226088

Product Overview:

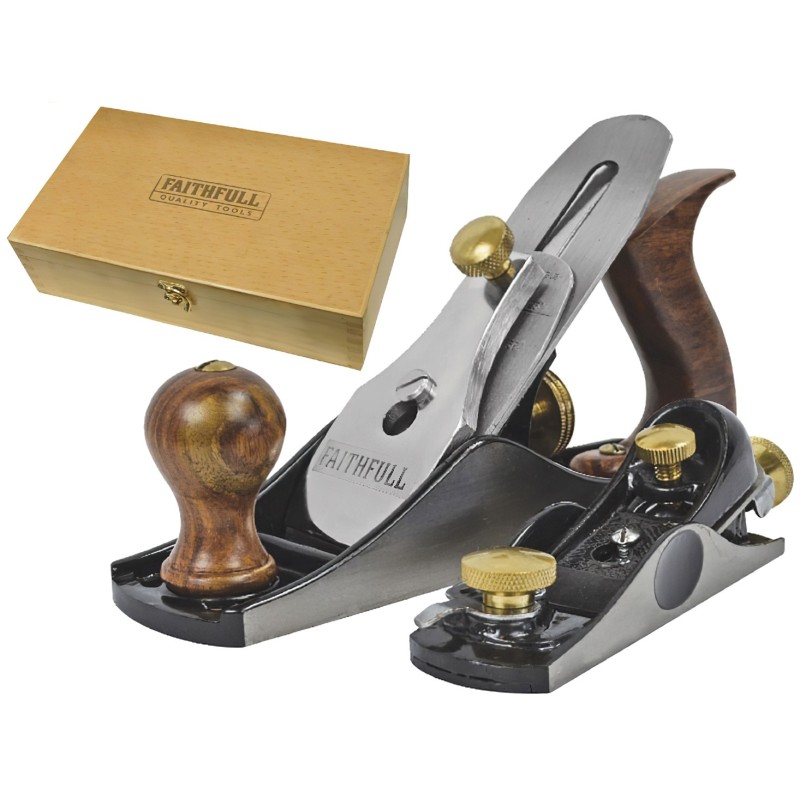

The Faithfull Smoothing and Block Hand Plane Set is a versatile two-piece carpentry tool kit ideal for woodworkers needing reliable planing solutions. This set includes two of the most widely used hand planes, offering quality, precision, and user comfort for any woodworking project.

Product Details:

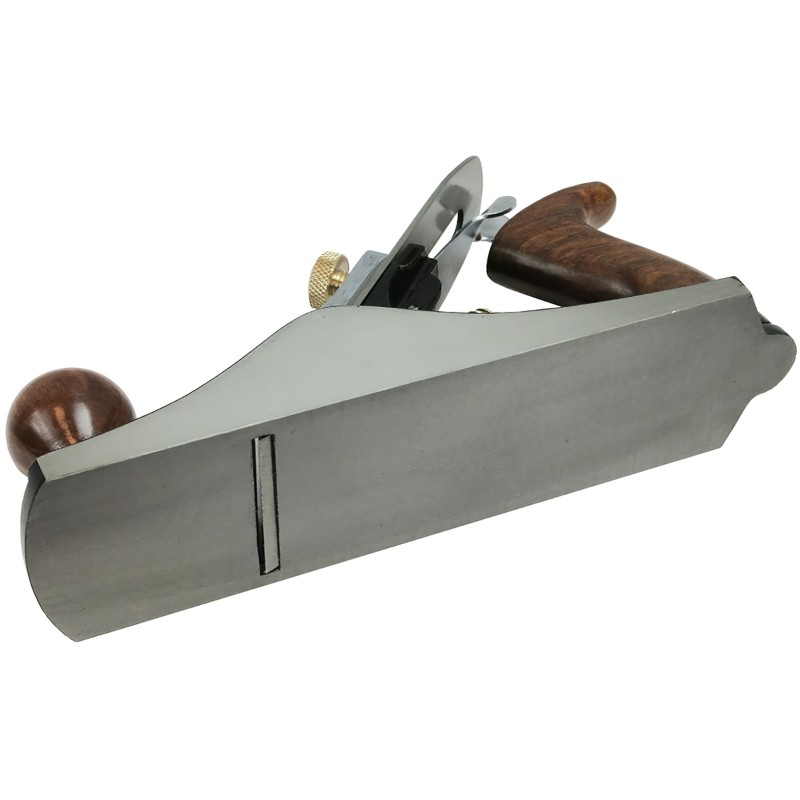

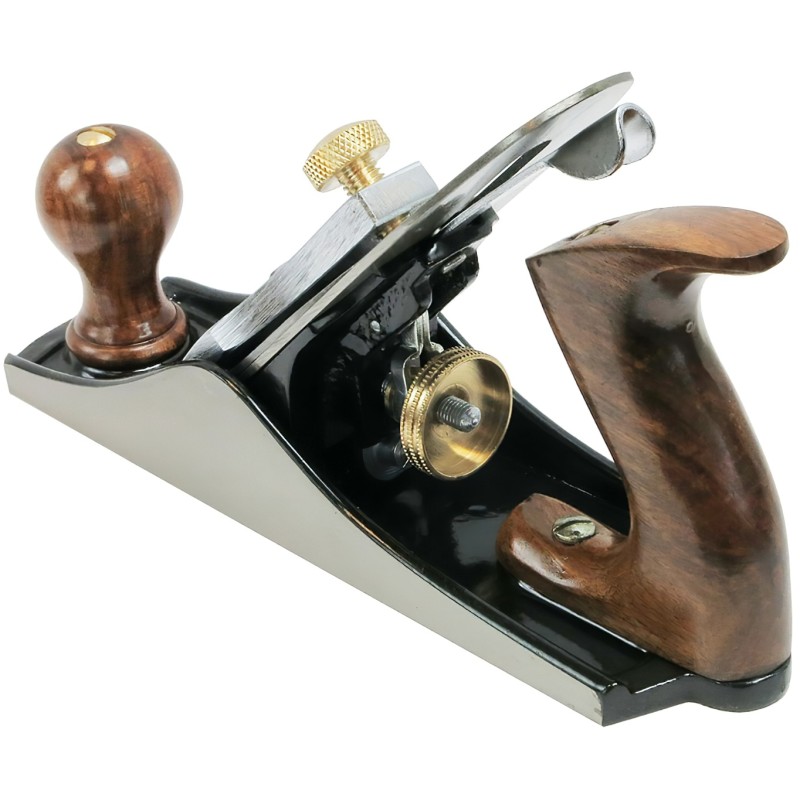

1 x No.4 Smoothing Plane
This No.4 Smoothing Plane is designed to deliver a smooth, refined finish on wood surfaces. Built from robust grey cast iron, it provides strength and stability, with a precision-ground base and sides to ensure flatness and squareness. The plane’s machined seating holds the blade firmly in place, reducing movement and preventing juddering. A brass lever cap locking screw secures the blade assembly, making it easy to release for sharpening when needed. Traditional wooden handles and guidance knobs ensure comfortable handling, while a solid brass blade adjustment nut allows for precise blade positioning.

Smoothing Plane Dimensions:

• Cutter Width: 50mm
• Overall Length: 250mm

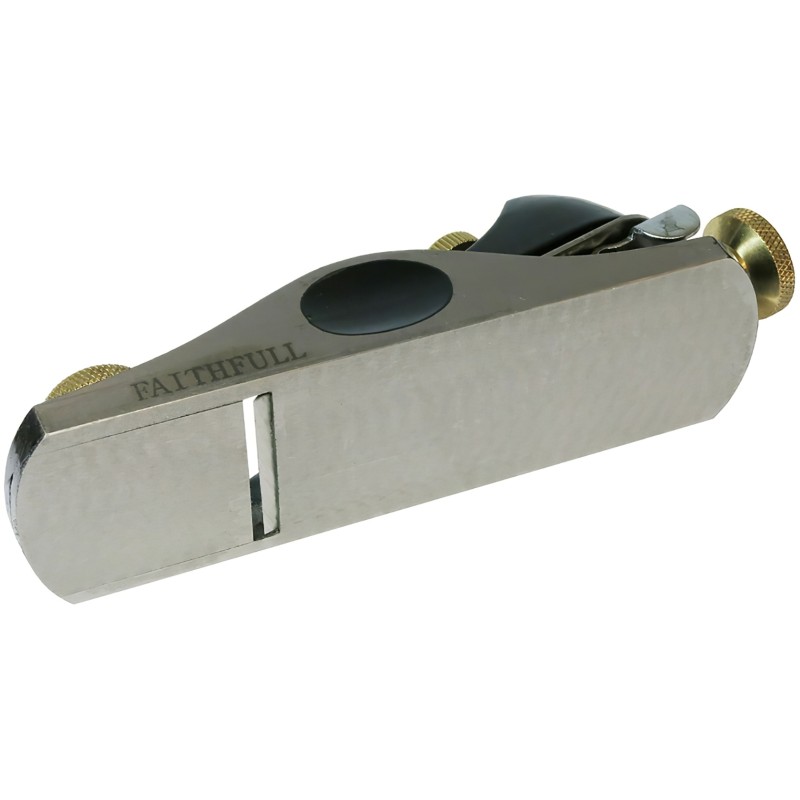

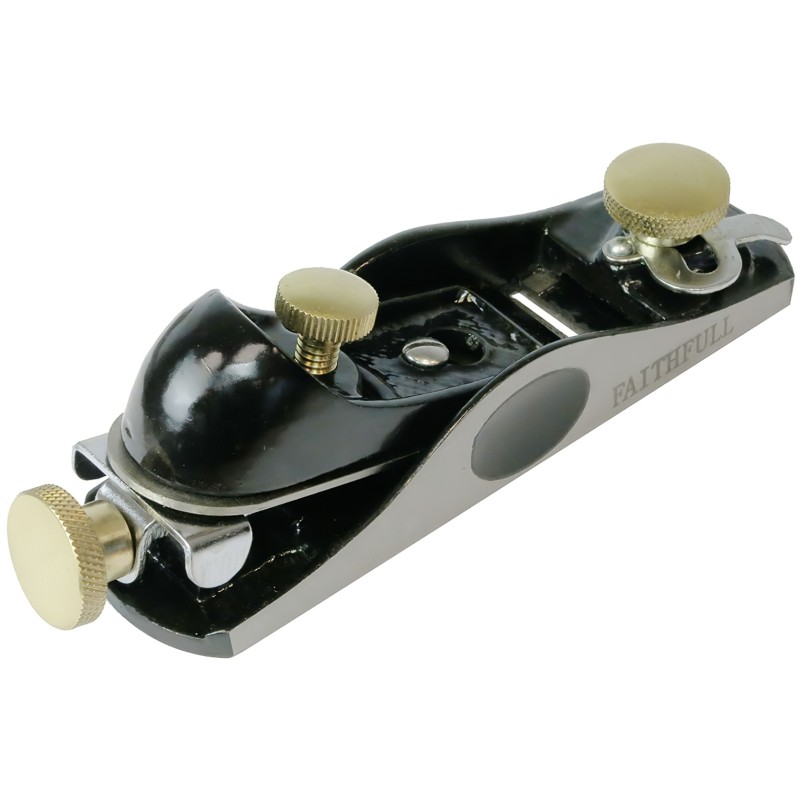

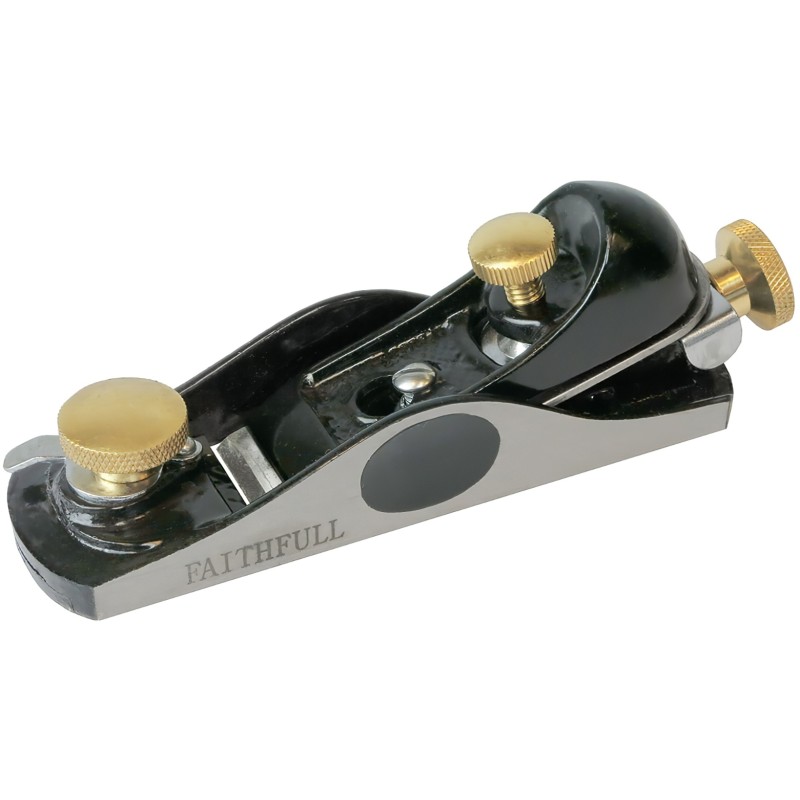

1 x No.60 1/2 Block Plane
The No.60 1/2 Block Plane features a plane iron set at a low angle of 13.5°, making it highly effective on end grain and plastic laminates. This block plane is ideal for fine, delicate work and has been expertly designed for one-handed operation. Its adjustable mouth can be set wide for coarse work or narrowed for detailed shaving, making it an excellent choice for managing awkward grain with finesse.

Block Plane Dimensions:

• Cutter Width: 35mm
• Overall Length: 160mm

Key Benefits:

• Comprehensive Carpentry Kit: This two-piece set includes a smoothing plane and a block plane, covering a wide range of woodworking tasks.
• Enhanced User Comfort: Wooden handles and knobs provide a comfortable grip, reducing hand strain during prolonged use.
• Quality Build: This set is constructed from high-grade cast iron with brass components and is designed for durability and precision.
• Versatile Applications: This set easily supports various woodworking tasks, from smoothing wood surfaces to precision work on end grain.

Storage and Care:

• Maintenance: Regularly clean and oil the planes to maintain peak performance and protect against rust.
• Sharpening: Keep blades sharp for optimal results, and release them easily with the brass locking screw for routine maintenance.

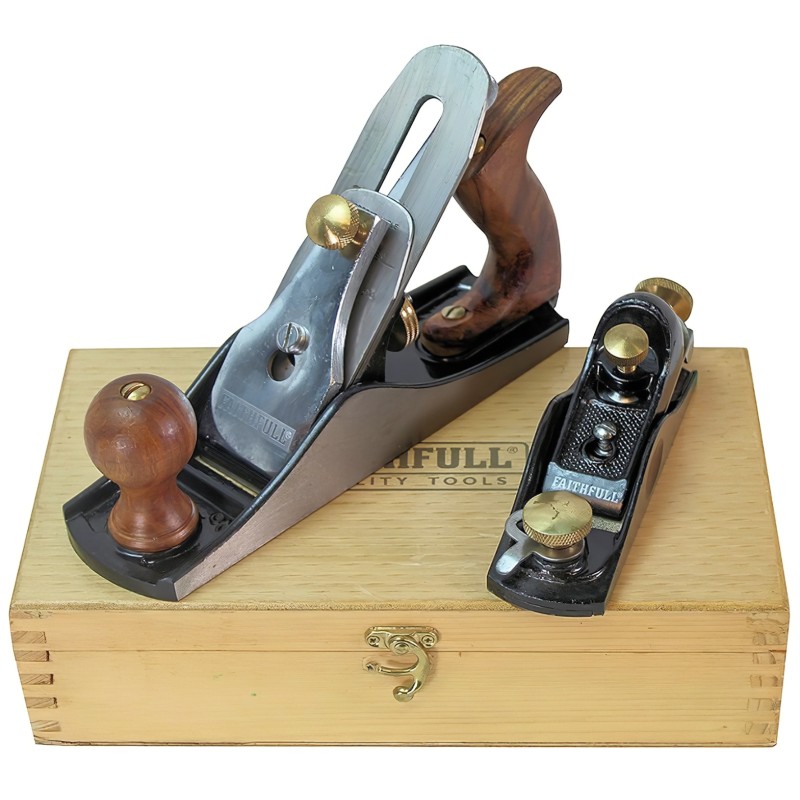

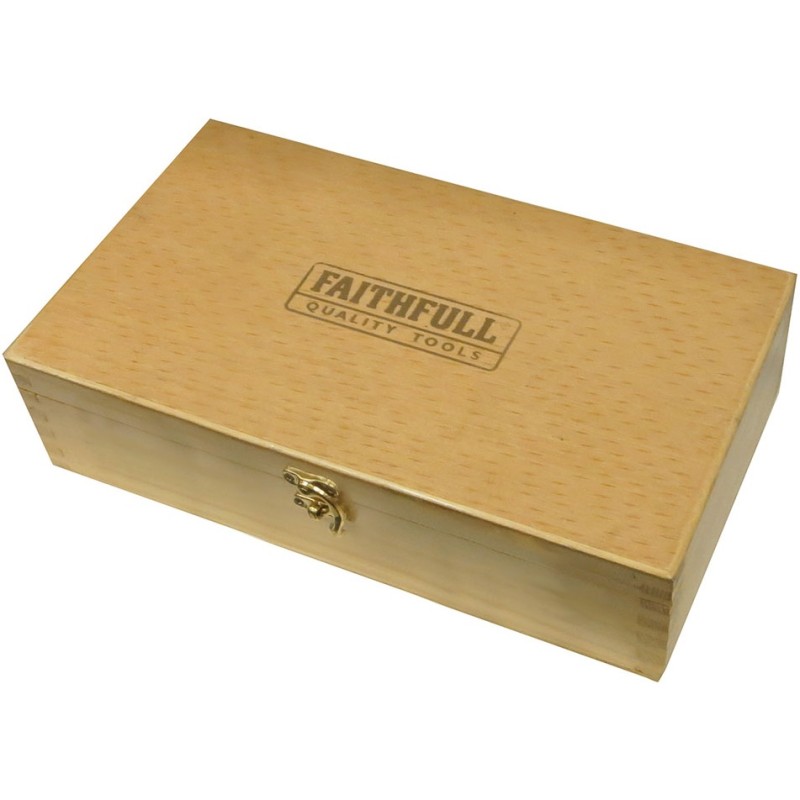

• Storage: The planes come in a wooden storage box, which protects your tools from damage and organises them for convenient access.

Technical Details:

• Material: Grey cast iron body with brass adjustment nuts and locking screw.
• Handles: Wooden for a traditional feel and improved user control.
• Cutting Angles: No.4 Smoothing Plane with standard angle, No.60 1/2 Block Plane at 13.5° low angle for precision.

Frequently Asked Questions (FAQs):

• Is this set suitable for professional woodworking?
  Yes, the Faithfull Smoothing and Block Hand Plane Set is designed for professional and frequent use and can handle demanding woodworking tasks.
• Can the block plane be used on softwood and hardwood?
  Absolutely. The block plane’s low angle and adjustable mouth make it effective for both hardwood and softwood applications.
• How do I maintain the cutting edges of the planes?
  Regular sharpening is recommended. You can easily release the blades using the brass locking screw for straightforward sharpening.
• Does the wooden storage box provide protection for the tools?
  Yes, the storage box is crafted to shield your tools from dust and damage, keeping them in excellent condition.
• Are these planes pre-sharpened and ready to use?
  The planes come with pre-ground edges; however, additional sharpening may be required to achieve the desired level of sharpness.
• What materials are the handles made from?
  The handles are made of wood, providing a comfortable grip and a traditional feel for enhanced control.

Equip yourself with this reliable Faithfull Smoothing and Block Hand Plane Set, ensuring precision and durability for all your woodworking needs.
