Blue Spot Tools Ironmongery 450mm Black Powder Coated Tee Hinge 78032

Blue Spot Tools Ironmongery 450mm Black Powder Coated Tee Hinge

MPN: 78032

Barcode: 5028734780321

Size: 450mm

Weight: 0.82kg

Colour: Black

Overview:

This 450mm tee hinge from Blue Spot Tools uses a carbon steel body. The black powder coat finish protects against corrosion. It suits permanent outdoor use on wooden gates, fences, and shed doors.

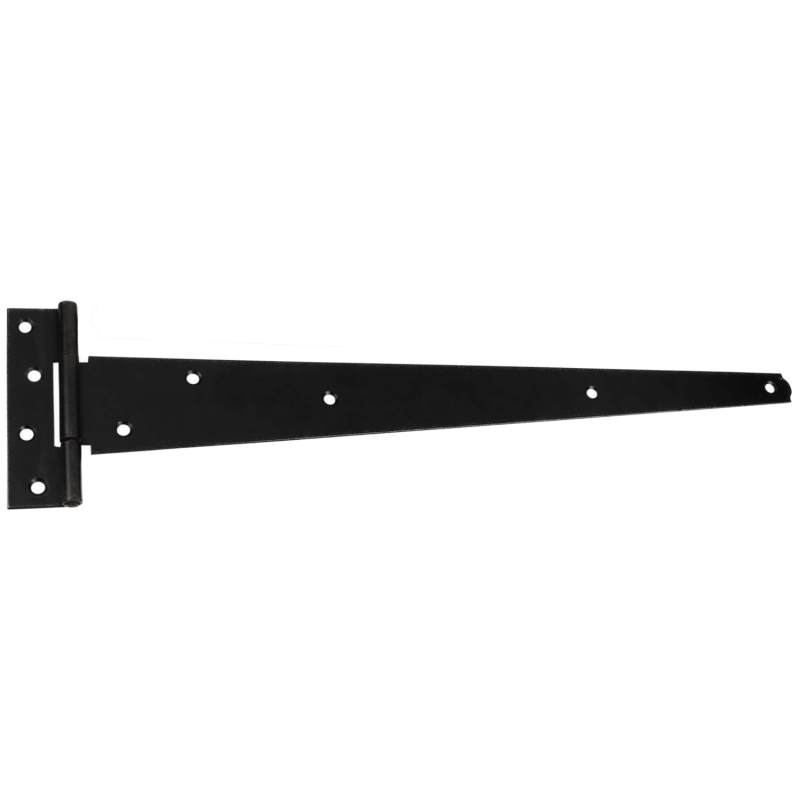

The hinge has a rectangular knuckle plate for the gate post and a tapered strap for the gate face. Both parts mount directly to the surface without recessing into the wood.

Key Features and Benefits

• Structural Strength: The carbon steel body holds its shape under the everyday weight and movement of outdoor gates and doors.
• Corrosion Protection: The black powder coat finish actively protects the metal against rust in outdoor conditions.
• Permanent Outdoor Use: Designed for fixed, weather-exposed installations rather than temporary fixes.

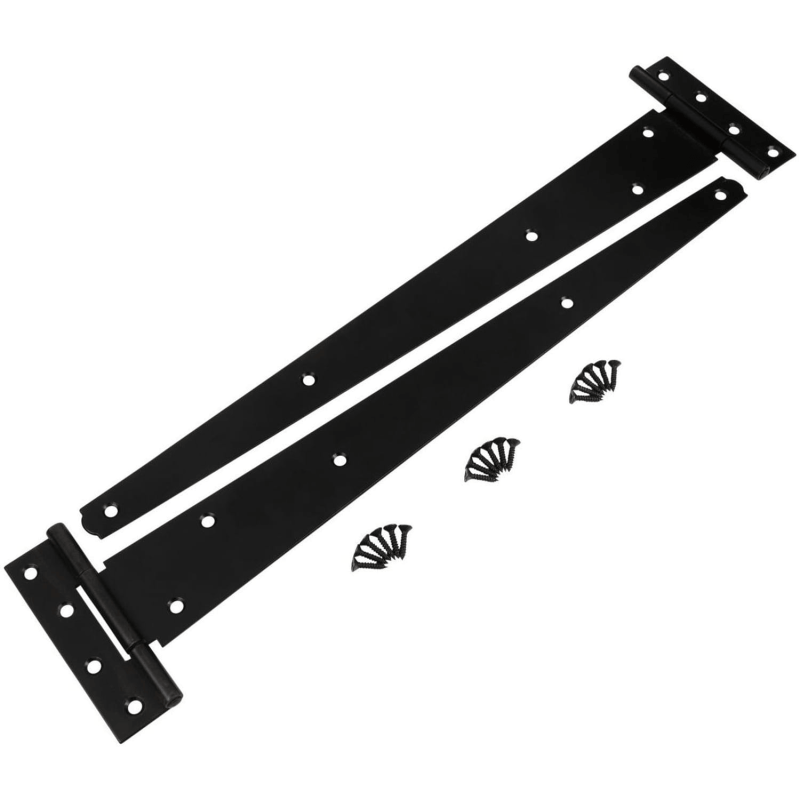

• Ready to Install: All fixing hardware comes in the box - no separate fittings required.
• Manufacturer's Guarantee: Blue Spot Tools backs this hinge with a 5 year guarantee.

Specs & Attributes

• Material: Carbon steel
• Finish: Black powder coat
• Size: 450mm
• Weight: 0.82kg
• Use: External

Typical Applications

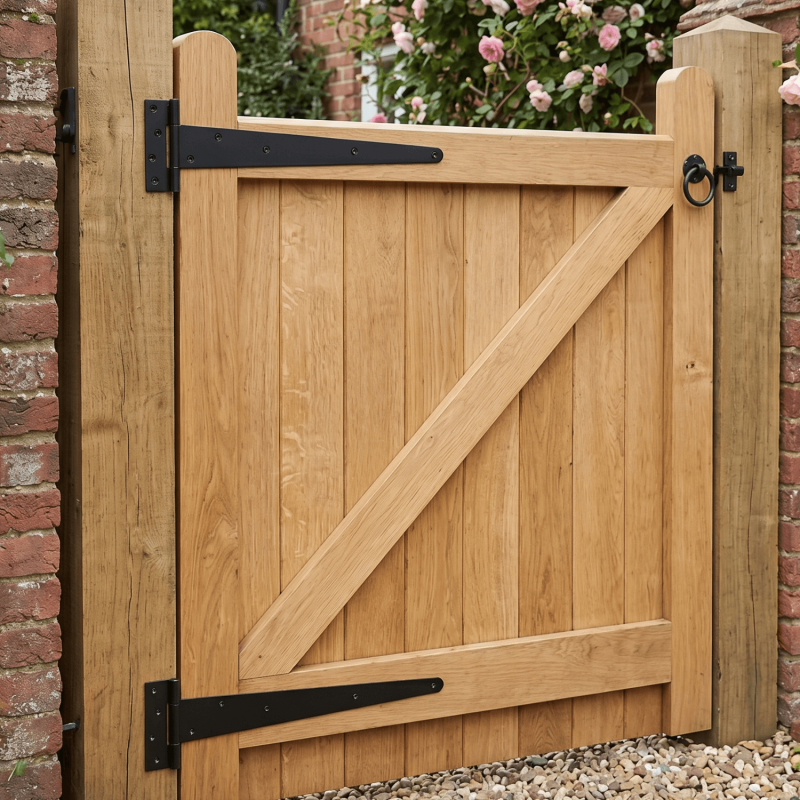

• Wooden garden gates
• Shed doors
• Fence gates and access points
• Timber outbuilding doors
• Side gates
• Workshop door openings

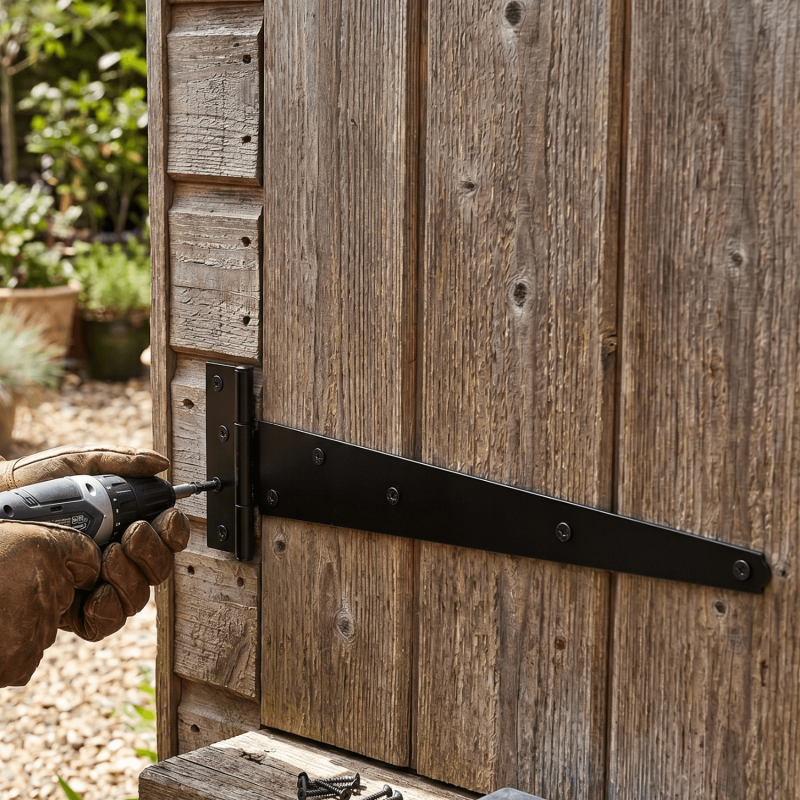

How to Use

• Mark: Hold the hinge in position and mark all fixing hole locations with a pencil.

• Pre-drill: Drill pilot holes at each marked point to prevent the wood from splitting.

• Attach the Strap: Fix the long tapered arm to the gate face using the provided screws.

• Attach the Plate: Secure the short rectangular knuckle plate to the gate post or frame.

• Test: Open and close the gate to confirm it swings freely and sits level when closed.

Frequently Asked Questions (FAQs)

• What size tee hinge do I need for my gate?
  As a general rule, the hinge length should be at least half the width of the gate. A 900mm wide gate needs a 450mm tee hinge. Heavier or wider gates may benefit from a longer hinge for greater support.

• How many tee hinges does a wooden gate need?
  Two hinges suit most standard wooden gates. For gates taller than around 2100mm, a third hinge fitted midway along the hanging edge helps prevent sagging under the additional weight.

• Can tee hinges be used on both left and right-handed gates?
  Yes. A tee hinge is not handed - the same hinge works on gates that open in either direction. Simply position the knuckle plate on the post and the strap on the gate face, regardless of which side the gate is hung.

• What is the difference between a tee hinge and a strap hinge?
  A tee hinge has a short rectangular plate for the post and a longer tapered strap for the gate face. A strap hinge uses two long arms instead. Strap hinges are typically found on bi-folding gates, where one gate leaf hangs from another.

• What is the difference between a tee hinge and a band and hook hinge?
  A tee hinge screws directly to both the post and the gate, making it a fixed fitting. A band and hook hinge uses a separate hook pin set into the post. This allows the gate to be lifted free without removing any screws.

Summary

The Blue Spot Tools 450mm black powder coated tee hinge is a surface-mounted outdoor hinge for wooden gates, fences, and shed doors. Its carbon steel body and powder coat finish make it well suited to permanent, weather-exposed installations. All necessary fittings are included, and it carries a 5 year guarantee from Blue Spot Tools.
