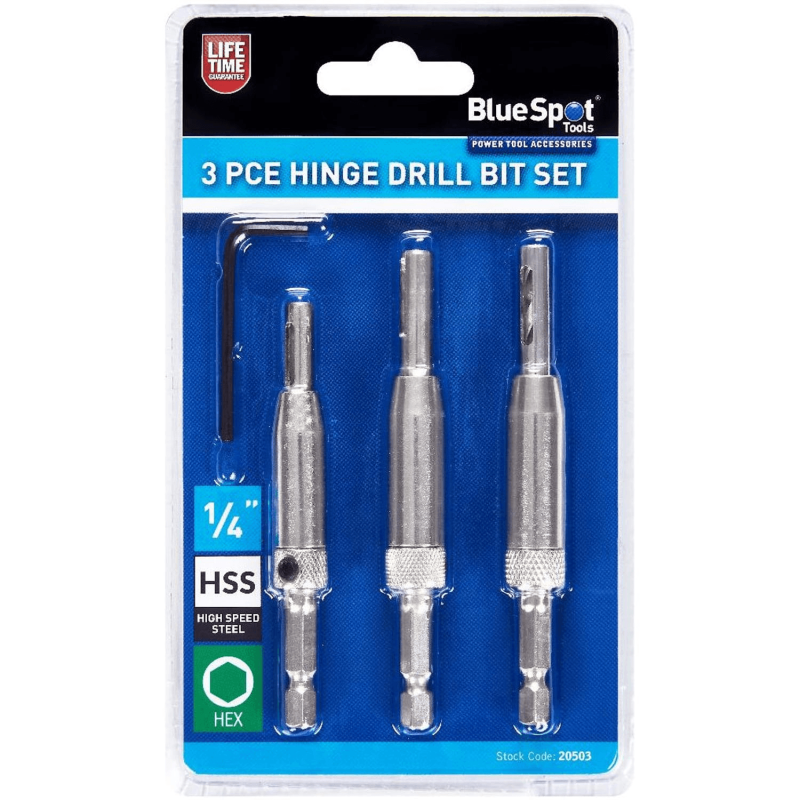

Blue Spot Tools 3 Piece HSS Hinge Drill Bit Set (2.8mm, 3.5mm, 4.2mm) 20503

Blue Spot Tools 3 Piece HSS Hinge Drill Bit Set (1/4" Hex Shank)

MPN: 20503

Barcode: 5028734205039

Sizes: 2.8mm, 3.5mm, 4.2mm

Weight: 0.12kg

Overview:

This BlueSpot Tools hinge drill bit set covers three pilot hole sizes for fitting hinges, drawer guides, and door hardware. The set contains 2.8mm, 3.5mm, and 4.2mm bits, each made from high-speed steel (HSS).

The hex shank fits quick-change chuck systems, including those found on 1/4" impact drivers. The bits are replaceable, and the set includes a hex key for swapping them out.

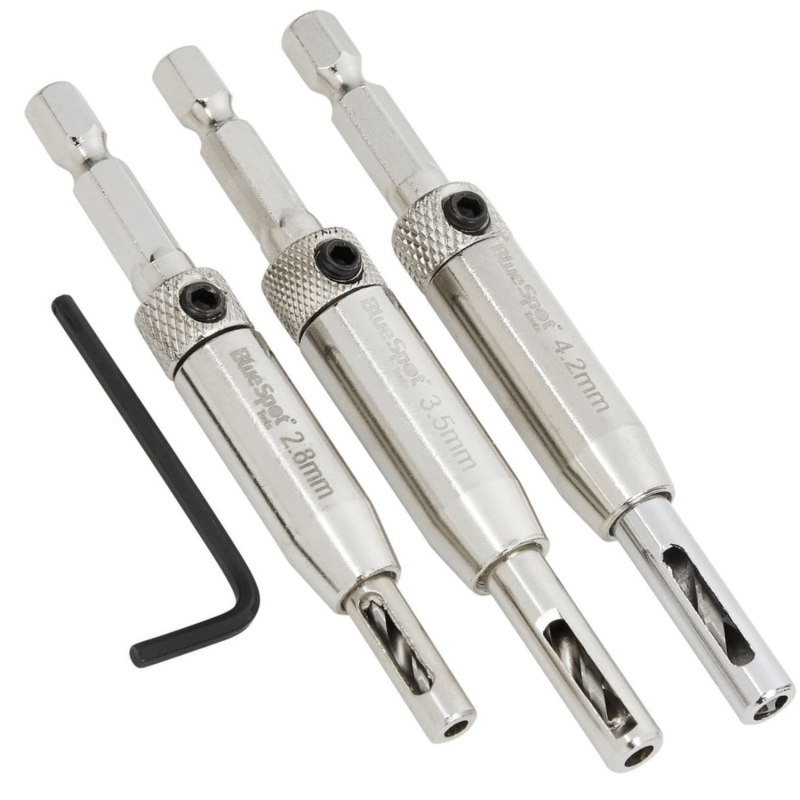

What's Included

• Hinge Drill Bits:
  • 1 x 2.8mm (7/64")
  • 1 x 3.5mm (9/64")
  • 1 x 4.2mm (11/64")
• Hex Key:
  • x 1 Included

Key Features and Benefits

• Three Sizes in One Set: Covers three commonly used pilot hole sizes for hinges and hardware, removing the need to buy bits separately.
• Spring-Loaded Guide Sleeve: Sits inside the hinge screw hole and centres the bit automatically - no manual marking needed.
• Holds a Cutting Edge Through Repeated Use: High-speed steel construction reduces the need for early replacement compared to lower-grade steel bits.
• Fits Quick-Change Chucks and Impact Drivers: Drop the hex shank straight in and get to work - no adapter, no adjustment needed.
• Replaceable Bits: Swap out a single worn bit rather than replacing the whole set.
• Hex Key Included: Nothing extra to source - the tool for bit changes comes with the set.
• Lifetime Guarantee: BlueSpot Tools backs this set with their lifetime guarantee.

Specs & Attributes

• Sizes: 2.8mm (7/64"), 3.5mm (9/64"), 4.2mm (11/64")
• Shank: 1/4" Hex (fits all 1/4" quick-change chucks)
• Material: HSS (High Speed Steel)
• Weight: 0.12kg

Typical Applications

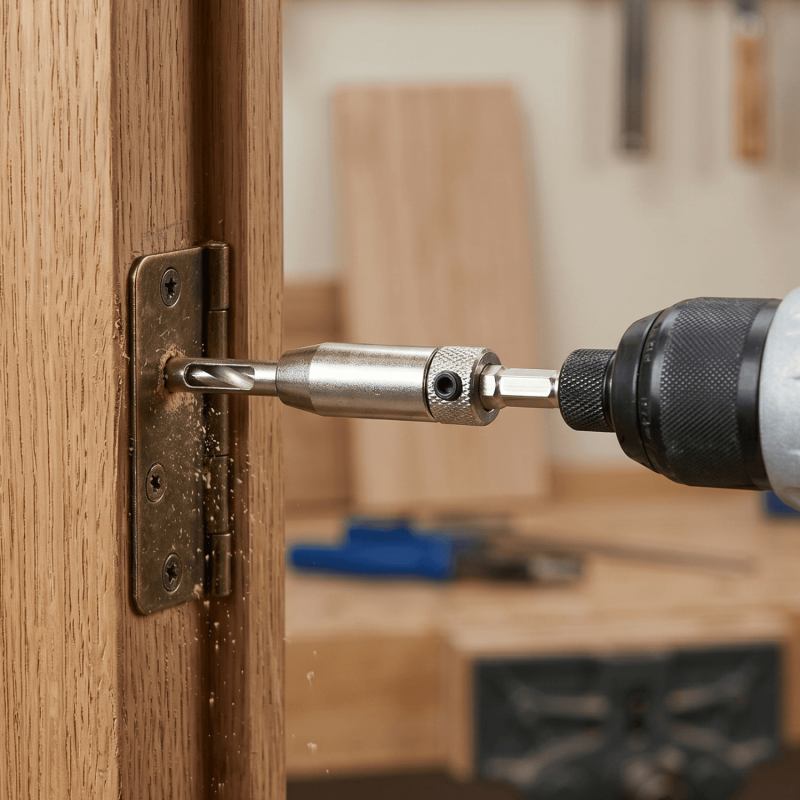

• Fitting door hinges
• Installing cabinet hinges
• Pre-drilling pilot holes for drawer guides
• Fitting door handles and hardware
• Installing furniture hinges
• Pre-drilling for lock face plates

How to Use

• Select the Correct Bit Size: Choose the bit that matches the pilot hole size required for your hardware.

• Fit to Your Drill: Insert the 1/4" hex shank into a quick-change chuck or impact driver.

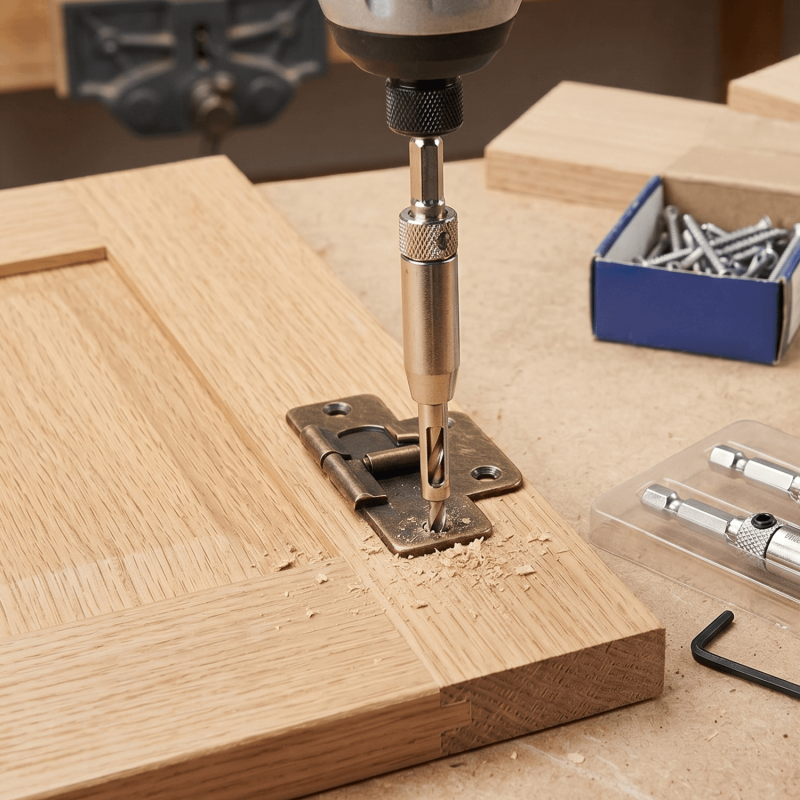

• Position the Bit: Place the guide sleeve into the countersunk screw hole of the hinge. The sleeve centres the bit automatically over the correct position.

• Drill the Pilot Hole: Apply steady pressure and drill at a speed suited to the material.

• Replace a Worn Bit: Use the included hex key to swap out any bit that needs changing.

Frequently Asked Questions (FAQs)

• What are hinge drill bits used for?
  Hinge drill bits drill pilot holes for fitting hinges and hardware to doors, cabinets, and furniture. The bit sits inside the screw hole of the hinge and guides the drill to the correct position. This produces an accurately placed pilot hole each time.

• What does HSS mean on a drill bit?
  HSS stands for High Speed Steel. It is a steel alloy that resists the heat generated during drilling. This allows the bit to stay hard and keep its edge at higher cutting speeds compared to standard carbon steel.

• Can hinge drill bits be used on MDF and manufactured boards?
  Yes. HSS hinge drill bits cut through MDF, plywood, and other manufactured boards. These materials are common in flat-pack and cabinet fitting work, where pilot hole accuracy matters most. Use a steady speed and avoid excessive pressure to keep the edges of the hole clean.

• What materials can HSS drill bits cut through?
  HSS drill bits cut through wood, plastic, and softer metals such as brass, copper, and aluminium. They are not suited to harder metals like stainless steel, which requires cobalt or carbide-tipped bits instead.

• What is the difference between a hinge drill bit and a regular twist drill bit?
  A standard twist drill bit requires manual positioning over each hole location. A hinge drill bit has a guide collar that fits inside the countersunk screw hole of the hinge. This directs the bit to the centre and produces an accurately placed pilot hole.

Summary

The BlueSpot Tools 3 Piece Hinge Drill Bit Set (20503) gives joiners, carpenters, and tradespeople a straightforward way to pre-drill accurate pilot holes for hinges and door hardware. Three HSS bit sizes cover the most common applications, the bits are replaceable when worn, and the set comes with a hex key and BlueSpot Tools' lifetime guarantee.
