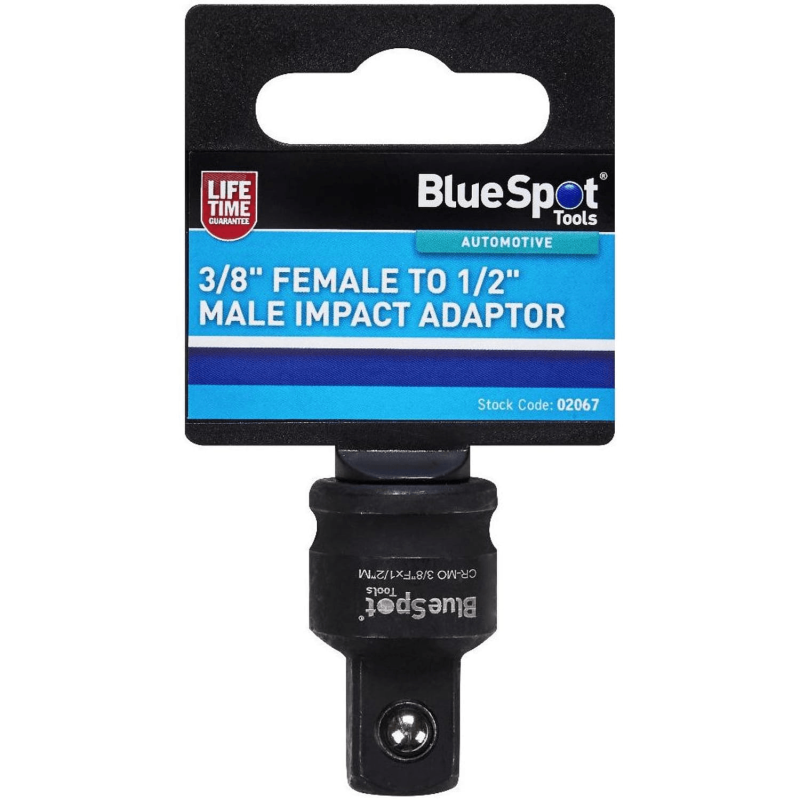

Blue Spot Tools 3/8" Female To 1/2" Male Impact Adaptor 02067 Bluespot
MPN: 02067
Barcode: 5028734020670
Weight: 0.64kg
Overview:

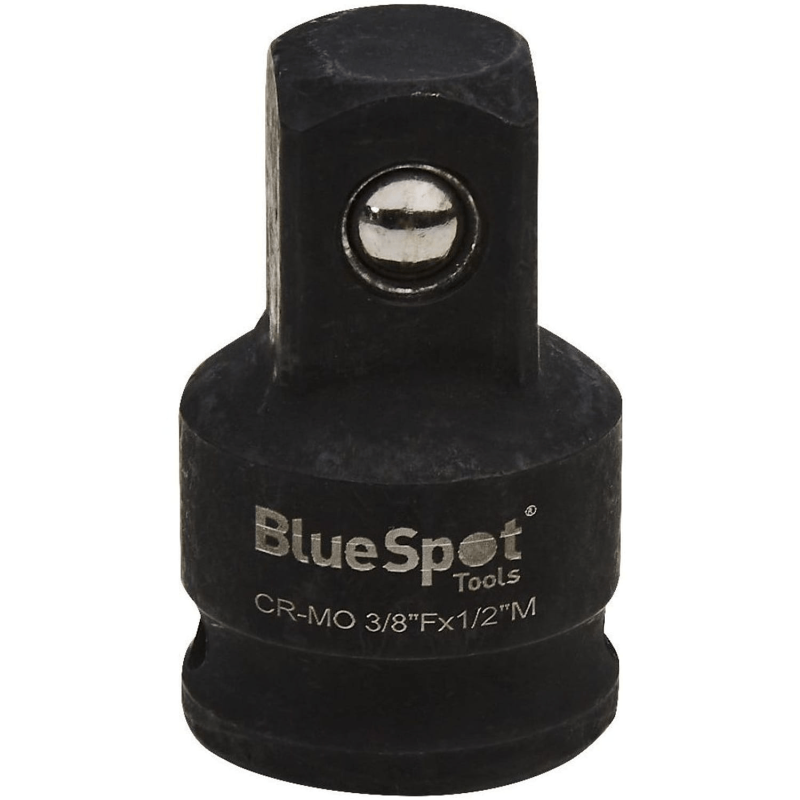

This 3/8" to 1/2" impact adaptor is made from chrome-molybdenum steel, built to handle the demands of high-torque driving. A blackened phosphate coating protects the metal from corrosion. The spring ball socket retainer holds the attached socket firmly in position.
The adaptor bridges two of the most widely used drive sizes in professional and trade toolkits. Fit a 3/8" drive tool to one end and run a 1/2" socket from the other - no need to switch between separate tool sets.
Key Features and Benefits
Specs & Attributes
Typical Applications
How to Use
Select Your Tools: Check that your impact wrench or ratchet has a 3/8" drive and that your socket has a 1/2" drive square.
Attach the Adaptor: Push the 3/8" female end of the adaptor firmly onto the drive of your impact wrench or ratchet until it seats securely.
Fit the Socket: Press your 1/2" drive socket onto the male end of the adaptor. The spring ball retainer will hold it in place.
Apply Torque: Position the socket onto the fastener and drive at the appropriate torque for the application.
Remove the Socket: Pull the socket free from the adaptor once the task is complete. The retainer will release under firm, direct pressure.
Frequently Asked Questions (FAQs)
What is the difference between 3/8" and 1/2" drive?
Drive size refers to the square drive post on a ratchet or wrench that accepts sockets. A 1/2" drive is larger and handles greater torque loads. A 3/8" drive suits medium-duty tasks. An adaptor allows you to use sockets from one drive size with a tool from another.
What is chrome-molybdenum steel and why is it used in impact tools?
Chrome-molybdenum (Cr-Mo) is a steel alloy containing chromium and molybdenum. These elements increase the steel's tensile strength and resistance to deformation under load. This makes Cr-Mo a common choice for impact-rated sockets and adaptors that face sudden, high-torque stress.
Can I use a 3/8" to 1/2" impact adaptor with a hand ratchet?
Yes. Impact adaptors work with both hand ratchets and impact wrenches. The impact-rated construction simply means the adaptor is built to withstand the hammering action of an impact tool. Using it with a hand ratchet puts less demand on the adaptor, not more.
What does a spring ball socket retainer do?
A spring ball retainer is a small ball bearing set into the drive square and held under spring tension. When a socket is pushed on, the ball seats into a detent groove in the socket, holding it in place. The socket releases when pulled off with firm, direct force.
Do I need an impact-rated adaptor for use with an impact wrench?
Standard chrome-vanadium (Cr-V) adaptors are not rated for impact use. An impact wrench delivers rapid rotational blows that can crack or shatter Cr-V accessories. Always use Cr-Mo or impact-rated accessories with an impact driver or wrench.
Summary
The Blue Spot Tools 3/8" to 1/2" male impact adaptor (02067) lets you run 1/2" drive sockets from a 3/8" drive tool. Chrome-molybdenum steel construction and a blackened phosphate finish make it suitable for demanding, high-torque applications. A spring ball socket retainer holds sockets securely in place during use.
| Data | |
| Reference Code | 02067 |
| Finish | Blackened phosphate |
| Input | Input Drive: 3/8" female |
| Weight | 0.64kg |
| Output | Output Drive: 1/2" male |
| Material | Chrome molybdenum |
| Guarantee | Blue Spot Tools - Manufacturers Lifetime Guarantee |
| Colour | Black |
| Name | Link |
|---|---|
| Blue Spot Tool Lifetime Guarantee | Download Attachment |
£5.24 £3.27 £3.92 Inc. VAT
