Blue Spot Tools 25PC 1/4" Quick Release Ratchet, Socket and Bit Set (4-13mm) (T10-T40) 01493

Blue Spot Tools 25PC 1/4" Ratchet, Socket and Bit Set (4-13mm) (T10-T40)

MPN: 01493

Barcode: 5028734014938

Size: 1/4"

Overview:

The Blue Spot Tools 25-piece 1/4" drive set brings together a 72-tooth reversible ratchet, 12 hex sockets and 10 bits in one carry case. The sockets run from 4mm to 13mm, covering the most common metric fastener sizes for small repairs.

It features a 100mm extension bar and a 1/4" square drive to hex bit adaptor. The additional included bits cover three fastener head types: Phillips, hex and Torx. The set uses chrome vanadium (CrV) steel throughout.

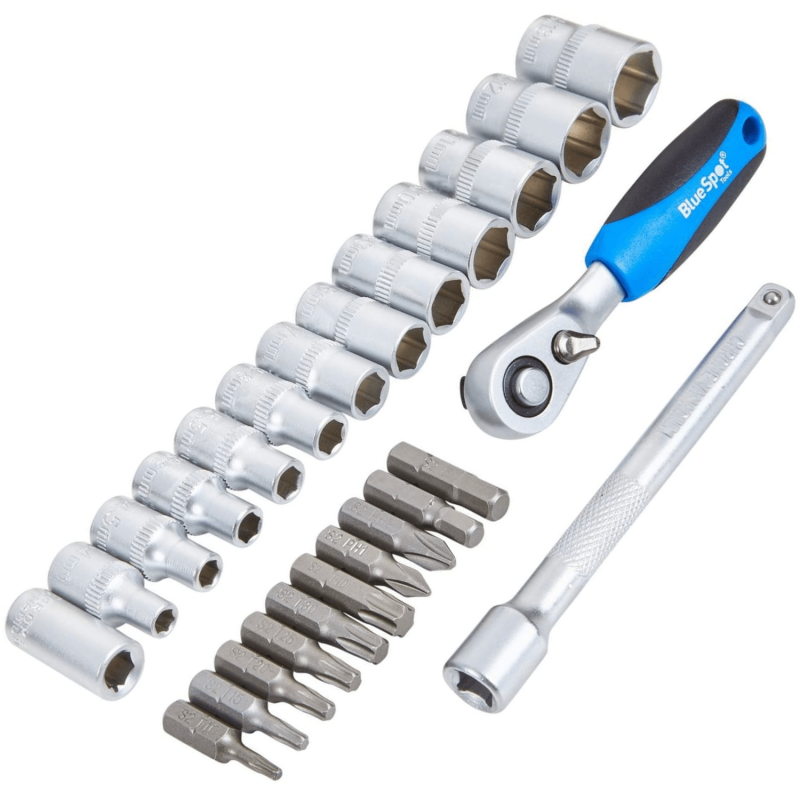

What's Included

• 12 x 1/4" Drive Hex Sockets:
  • 4mm, 4.5mm, 5mm, 5.5mm, 6mm, 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 13mm
• 2 x Phillips Bits:
  • PH1, PH2
• 2 x Hex Bits:
  • H5mm, H6mm
• 6 x Torx Bits:
  • T10, T15, T20, T25, T30, T40
• 1 x 1/4" Square Drive to 1/4" Hex Bit Adaptor
• 1 x 72 Tooth Soft Grip Quick-Release Reversible Ratchet
• 1 x 100mm Extension Bar

Key Features and Benefits

• Chrome Vanadium (CrV): Resists deformation under repeated hand-torque.
• 72-Tooth Ratchet: Only 5° of arc swing per click - workable where handle clearance is limited.
• Quick-Release Button: Sockets change without removing the ratchet from the fastener.
• Soft Grip Handle: Reduces hand fatigue on longer fastening jobs.
• Reversible Drive: Switch between tight and loose without repositioning.
• Extension Bar: Reaches recessed fasteners that a standard drive cannot access.

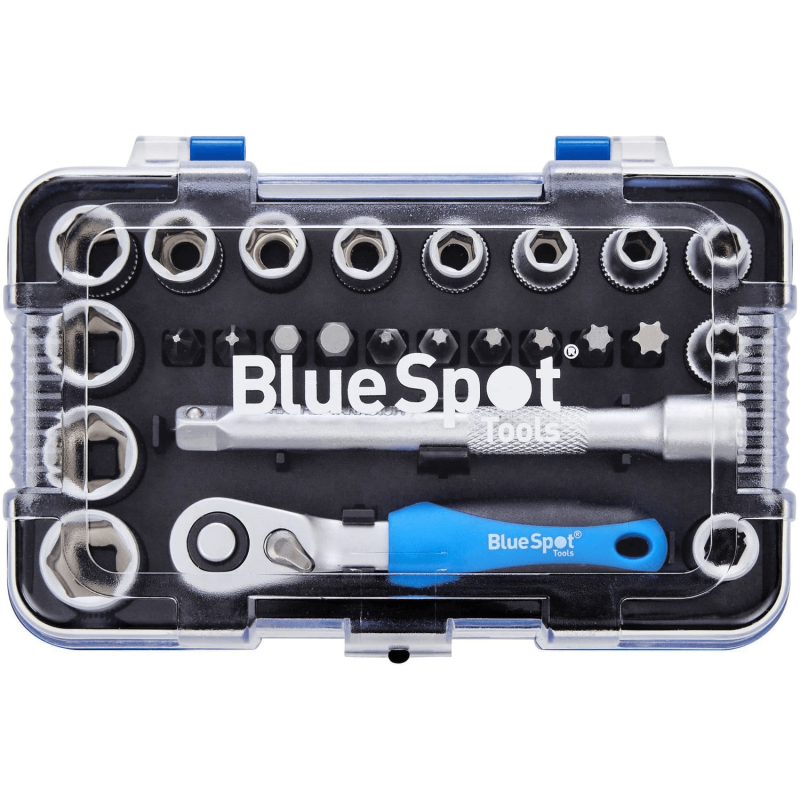

• Carry Case: Keeps all 25 pieces organised and protected.

Specs & Attributes

• Drive Size: 1/4"
• Material: Chrome Vanadium (CrV)
• Ratchet Teeth: 72
• Extension Bar Length: 100mm
• Weight: 0.45kg
• Guarantee: Blue Spot Tools Lifetime Guarantee

Typical Applications

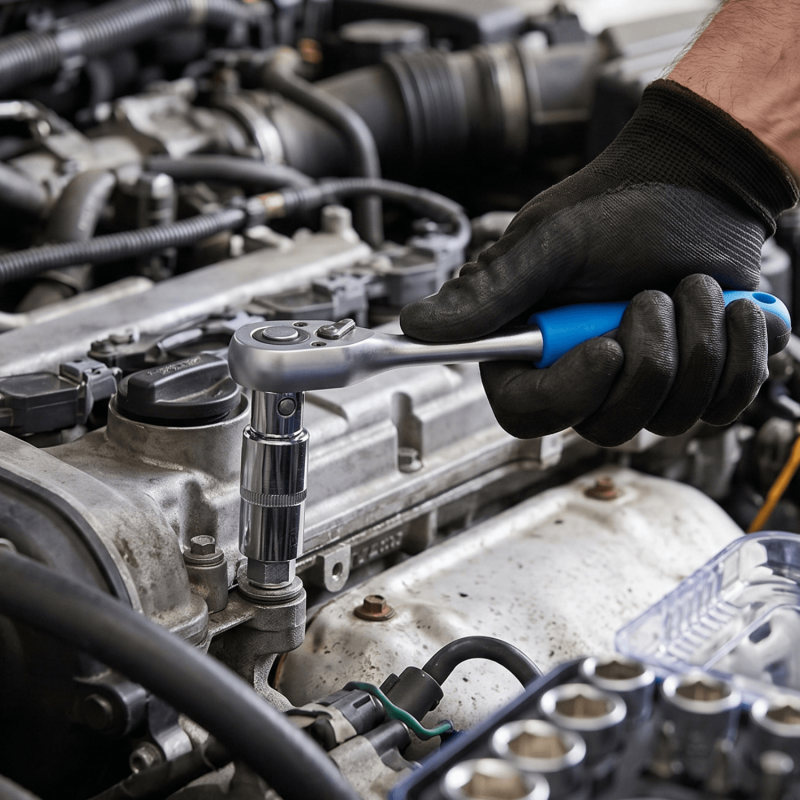

• Automotive interior trim and engine bay maintenance

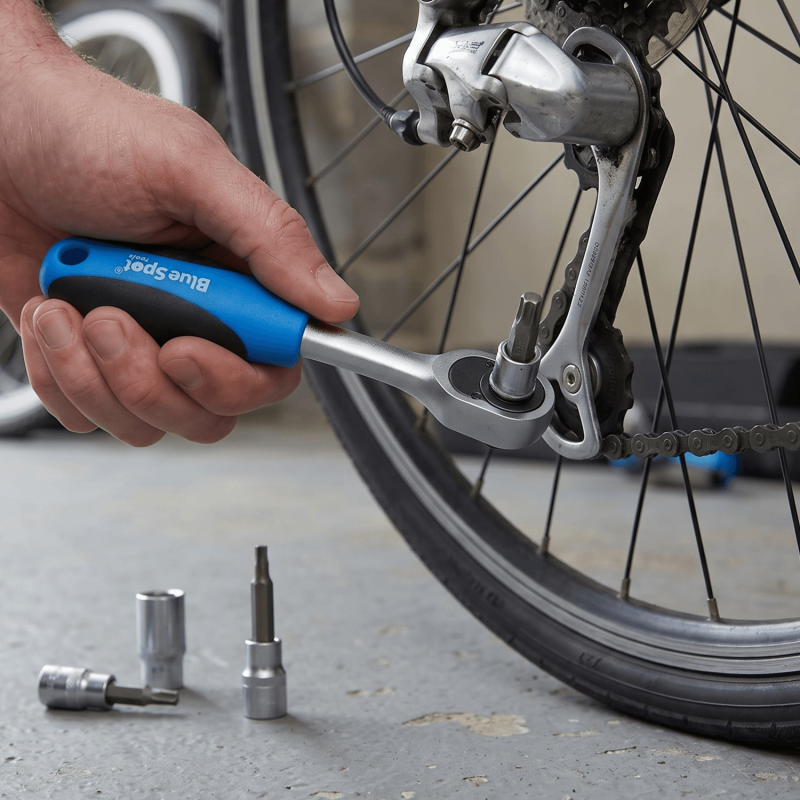

• Bicycle servicing and adjustment
• Electronics and small appliance repair

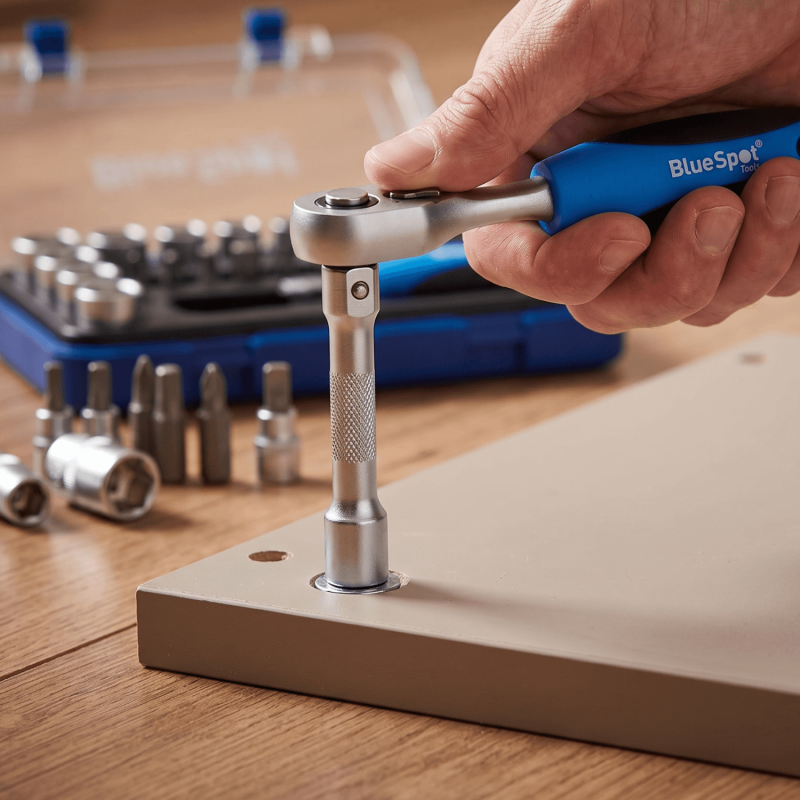

• Furniture assembly using hex and Torx fasteners
• Garden equipment and small engine servicing
• General home maintenance with metric fasteners

How to Use

• Select Your Socket or Bit: Match the correct size to your fastener head.

• Attach to the Ratchet: Press onto the 1/4" square drive until it clicks into place.

• Set the Direction: Use the reversible switch to select between tighten or loosen.

• Add the Extension Bar if Needed: Fit between the ratchet and socket to reach recessed fasteners.

• Work the Ratchet: Apply firm, short strokes to turn the fastener.

• Swap Sockets: Press the quick-release button to change to the next size.

Frequently Asked Questions (FAQs)

• What does a 72-tooth ratchet mean?
  The tooth count refers to the number of gear teeth inside the ratchet head. A higher count means a smaller arc swing per click. A 72-tooth ratchet needs 5° of movement per click, making it practical in confined spaces where the handle cannot swing widely.

• Can chrome vanadium sockets be used with an impact wrench?
  No. Chrome vanadium is rated for hand-tool use only. Impact wrenches deliver rapid hammer blows that the material cannot absorb safely - the socket can crack or shatter under that load. Impact use requires chrome molybdenum (Cr-Mo) sockets.

• What are Torx bits used for?
  Torx bits drive fasteners with a six-pointed star-shaped recess. The star profile spreads force more evenly than a Phillips or flat head, reducing the chance of the bit slipping under load. Torx fasteners are common on automotive parts, bicycles and consumer electronics.

• What is a 1/4" drive socket set suited to?
  A 1/4" drive suits low-torque work on small fasteners in tight spaces. The compact ratchet head fits into areas a larger drive cannot reach. Typical tasks include interior trim, electrical components and small engine work.

• What is the difference between 1/4" and 3/8" drive socket sets?
  The drive size is the square post on the ratchet that the sockets attach to. A 1/4" drive suits smaller fasteners and confined spaces. A 3/8" drive handles larger fasteners and higher torque. The two are not interchangeable without an adaptor.

Summary

The Blue Spot Tools 01493 is a 25-piece 1/4" drive set for small-fastener work. It includes sockets from 4mm to 13mm, a 72-tooth reversible ratchet and bits for Phillips, hex and Torx fastener heads. The set carries the Blue Spot Tools Lifetime Guarantee.
