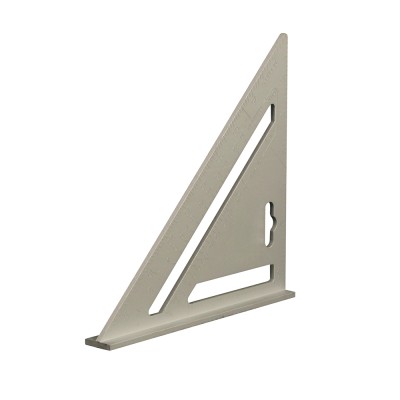

Silverline HD Pro Aluminium Alloy Roofing Rafter Square 734110

Silverline Heavy Duty Pro Thick Aluminium Alloy Square 7 inch

Barcode: 5024763041983

MPN: 734110

Overview:

Heavy Duty Pro Thick Aluminium Alloy Square 7 inch 734110 is a tough, time-saving layout tool for accurate marking and measuring on site, on the roof or at the workbench. Made with a strong cast aluminium alloy body, it features clear embossed imperial graduations for quick read-off and long-lasting visibility. A built-in rafter conversion table supports fast roof and framing calculations, while the 0–90° protractor scale helps you mark common angles with confidence. The lipped edge locates securely on timber edges, and the integrated saw guide makes it easier to set angles for repeatable cuts—ideal for carpenters, joiners and general woodworking tasks.

Key Features

• Heavy duty cast aluminium alloy square for regular site use

• Clear embossed imperial graduations for durable, easy reading

• Lipped edge for secure locating on timber edges

• 0–90° protractor scale for quick angle marking

• Common rafter conversion table for roof and framing layout

• Built-in saw guide for measuring and guiding angled cuts

• Ideal for carpenters, joiners and general woodworking

Specifications

• Brand: Silverline

• Product Type: Aluminium alloy square

• Size: 7 inch

• Graduation Type: Imperial

• Graduations: Embossed

• Material: Aluminium alloy (cast)

• Overall Dimensions: 185mm x 185mm x 260mm

• Weight: 125g

• MPN: 734110

• Barcode: 5024763041983

Applications

• Marking out and measuring timber for carpentry and joinery

• Setting and transferring angles for cuts

• Roof framing and rafter layout using the conversion table

• Quick 90° and angle checks on site or in the workshop

• Repeatable marking and cutting tasks using the saw guide

How to Use

• Place the lipped edge against the timber edge to locate securely

• Use the embossed imperial graduations to measure and mark lengths

• Use the protractor scale to set and mark required angles

• Refer to the rafter conversion table for common framing calculations

• Use the saw guide edge as a reference when setting up angled cuts

7" Aluminium Alloy Square – Key FAQs

• What is this 7 inch aluminium alloy square used for?
  It’s used for measuring, marking and setting angles in carpentry, joinery and roofing work, helping speed up layout tasks and improve accuracy.

• Does it have imperial markings?
  Yes, it features clear embossed imperial graduations designed to stay readable and resist wear over time.

• What does the lipped edge do?
  The lipped edge helps the square locate securely on the edge of timber, improving stability and accuracy when marking out.

• Is there an angle scale on the square?
  Yes, it includes a 0–90° protractor scale for marking and checking angles quickly during layout and cutting tasks.

• What is the rafter conversion table for?
  It provides quick reference information for common rafter and framing calculations, useful for roofing and structural timber work.

• Can it be used as a saw guide?
  Yes, the square includes a saw guide edge that can help you set up and guide angled cuts more consistently.
