Tolsen Triple Lifting Carrying Suction Pad 75kg 62663

Tolsen Triple Lifting Carrying Suction Pad 75kg (62663)

MPN: 62663

Barcode: 6933528762164

Weight: 840g

Overview:

The Tolsen Triple Lifting Carrying Suction Pad lifts loads up to 75kg across three lever-locking suction cups. It gives you a controlled grip on heavy, smooth-faced materials that are difficult to handle bare-handed.

Each cup measures 11.5cm in diameter and forms a firm vacuum seal when its lever clamp is engaged. The triangular three-cup layout spreads the load evenly, keeping heavy panels stable during a carry or placement.

The plastic body weighs just 840g, keeping the tool manageable throughout a full working day. At 310mm x 325mm, it packs away quickly and takes up minimal space in a toolbox or van.

Key Features and Benefits

• 75kg Load Capacity: Lifts materials weighing up to 75kg in a single carry.
• Three Suction Cups: A triangular cup arrangement distributes load evenly across the surface.
• 11.5cm Cup Diameter: Each cup creates a wide contact area for a strong vacuum seal.
• Individual Lever Clamps: Each cup has its own lever for quick engagement and fast release.
• Lightweight Construction: Plastic body keeps total weight to just 840g.
• Compact Dimensions: 310mm x 325mm footprint stores easily between jobs.
• Smooth Surface Compatible: Works on glass, ceramic tiles, polished stone, mirrors, and flat metal panels.
• Non-Marking Rubber Cups: Rubber cup faces grip without scratching or leaving marks on the surface.
• Single-Operator Capable: One person can manage lighter lifts; heavier items may require a second pair of hands.
• Horizontal and Vertical Use: Handles materials flat on the floor or held upright, as shown in glass panel and windscreen work.

Specs & Attributes

• Load Capacity: 75kg
• Number of Suction Cups: 3
• Cup Diameter: 11.5cm
• Body Material: Plastic
• Weight: 840g
• Length: 310mm
• Width: 325mm
• Height: 80mm

Typical Applications

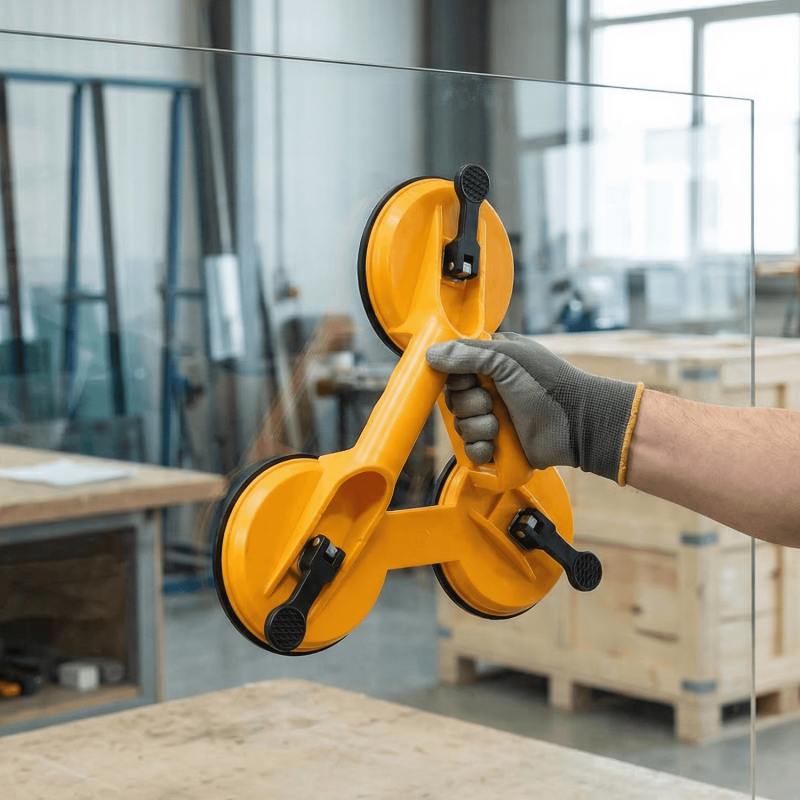

• Lifting and positioning large glass panes during glazing installation

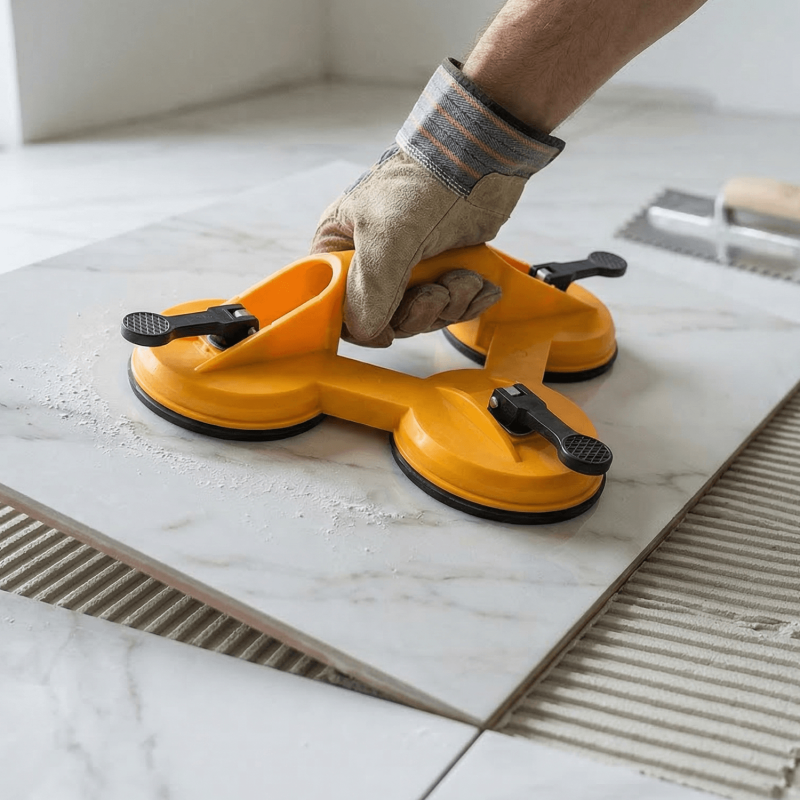

• Placing large-format ceramic or porcelain floor and wall tiles
• Handling mirrors for installation or relocation

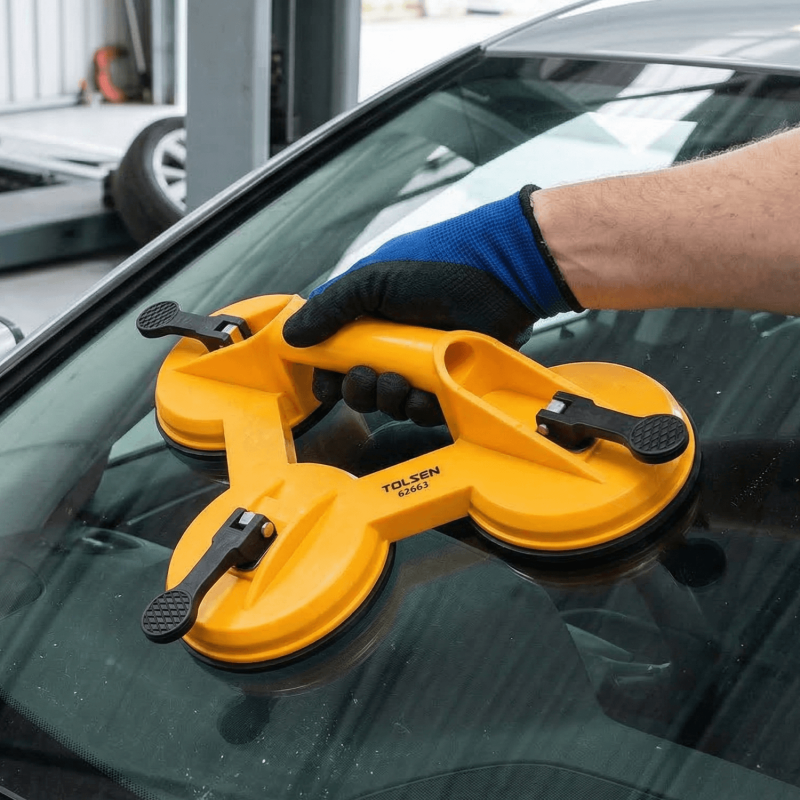

• Removing and refitting car windscreens in automotive workshops
• Moving polished stone worktops, granite, or marble slabs
• Transporting smooth metal or acrylic sheet panels
• Repositioning glazing units on construction sites
• Handling engineered stone during kitchen or bathroom fitting

How to Use

• Clean First: Wipe the material surface and all three rubber cup faces to remove dust, moisture, or grease.

• Position the Lifter: Place the tool onto the material with all three cups sitting flat against the surface.

• Engage Each Lever: Press down firmly on each cup and flip its lever clamp to lock the vacuum in place.

• Check Before Lifting: Confirm all three levers are fully locked, and the cups feel firmly attached before taking the full weight.

• Lift and Carry: Lift steadily and keep the material as level as possible throughout the move.

• Release: Once in position, flip each lever back to break the vacuum and remove the lifter cleanly.

Frequently Asked Questions (FAQs)

• Will this suction pad work on textured or porous surfaces?
  No. The cups need a smooth, non-porous surface to form a proper vacuum. Textured, rough, or porous materials prevent the cups from sealing correctly and should not be attempted.

• Is the 75kg rating the total capacity or per cup?
  75kg is the combined total load capacity across all three cups working together. It is not the individual rating of each cup.

• How can I tell if the suction seal is holding before I lift?
  With all levers locked, apply gentle upward pressure. If the material lifts with the pad without any cup shifting or slipping, the vacuum is secure.

• Can this lifter be used on vertical surfaces?
  Yes. The tool works on vertical smooth surfaces and is commonly used for glass panels and windscreens held upright. Always test the seal with light pressure before proceeding with a full lift.

• How should I maintain the rubber suction cups?
  Keep the cup faces clean and free from oils, solvents, and debris. Store in a cool, dry location away from direct sunlight, which can cause the rubber to harden and lose grip over time.

Summary

The Tolsen Triple Lifting Carrying Suction Pad is a handy tool for tradespeople and home users who regularly handle heavy, smooth-surfaced materials. Three lever-locking cups provide a combined 75kg capacity across glass, tiles, stone, and mirrors. At just 840g and 310mm x 325mm, it stays light and compact enough to carry to every job.
