Tolsen Helping Hand Magnifier 62mm (1-1/2") 38090

Tolsen Helping Hand Magnifier 62mm (1-1/2") 38090

MPN: 38090

Barcode: 6933528738459

Size: 62mm

Weight: 385g

Overview:

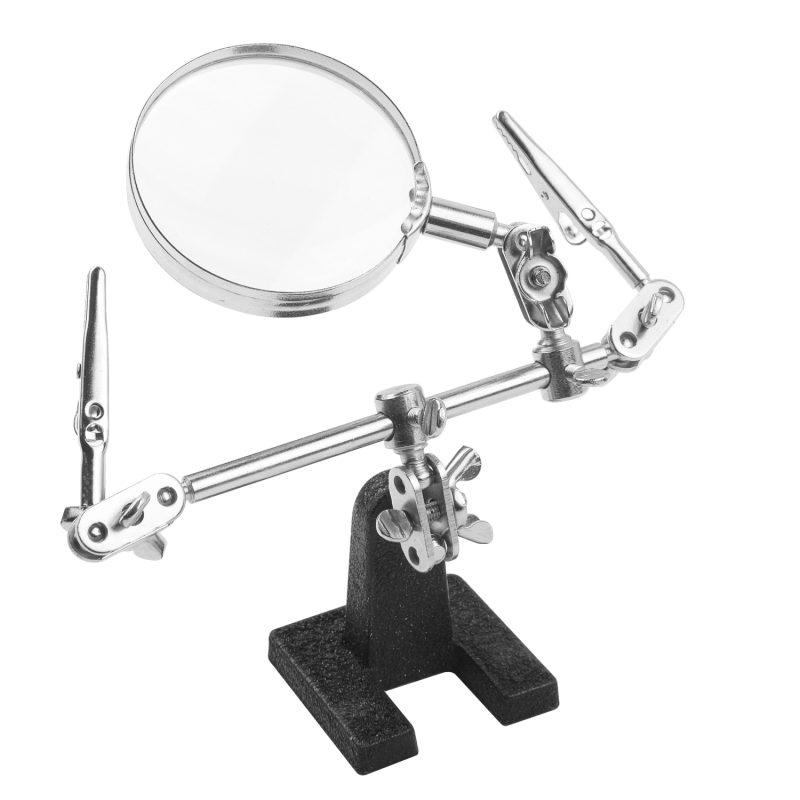

The Tolsen Helping Hand Magnifier features a 62mm (1-1/2") glass lens and a pair of adjustable crocodile clamps, giving you a steady, magnified view for detailed hands-on work. The clamps hold small components, wires, and circuit boards firmly in position, leaving both hands free for soldering, repair, or assembly.

The base contains a steel plate that adds weight and prevents tipping during fine operations. It sits flat on any workbench and takes up minimal space, making it a straightforward addition to a soldering station or craft table.

Key Features and Benefits

• 62mm Glass Lens: The 1-1/2" diameter glass lens provides a clear, magnified view of small components and fine detail work.
• Adjustable Crocodile Clamps: Spring-loaded jaws grip wires, boards, and small parts firmly at a range of angles and heights.
• Steel Plate Weighted Base: The bottom compartment houses a steel plate, adding weight to the base and preventing movement during work.
• Hands-Free Operation: Once the clamps are set, both hands are completely free to hold tools, apply solder, or manipulate fine components.
• Adjustable Lens Arm: The magnifier arm repositions to the height and angle that suits each task.
• Compact Footprint: Fits comfortably on a standard workbench or craft table without occupying excessive space.
• Broad Task Range: Suited to soldering, watch and clock repair, jewellery work, model building, and computer component repair.
• Simple Setup: No complex assembly required - position the clamps, adjust the lens, and start work.
• Stable During Fine Work: The weighted base and firm clamp arms keep the workpiece in place throughout the task.
• Practical Weight: At 385g, the unit is light enough to move between workstations without effort.

Specs & Attributes

• Lens Diameter: 62mm / 1-1/2"
• Clamp Type: Adjustable crocodile clamps
• Base: Weighted steel plate base
• Weight: 385g
• Length: 130mm
• Width: 75mm
• Height: 80mm

Typical Applications

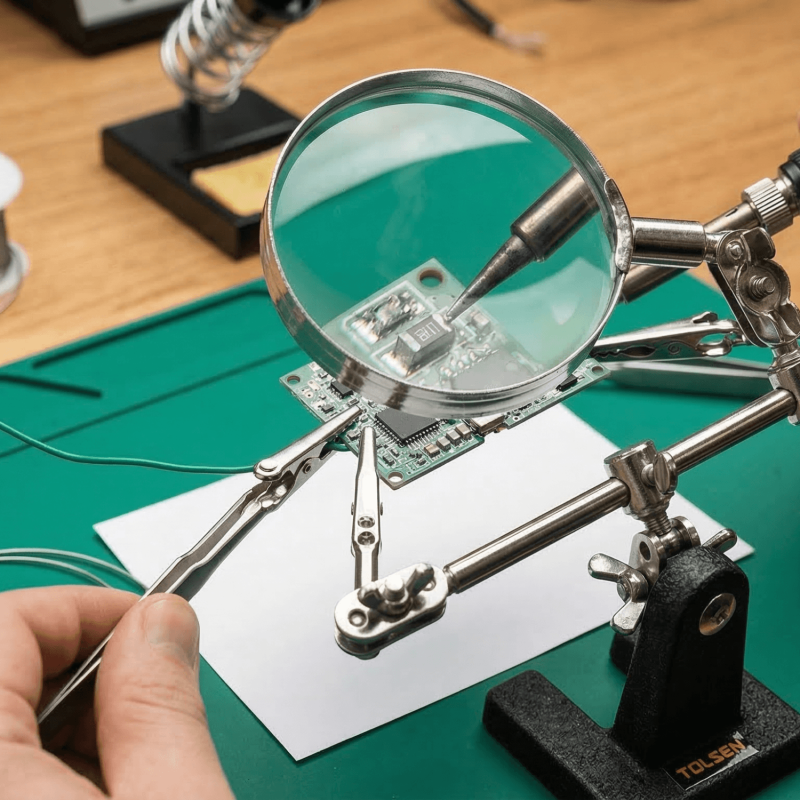

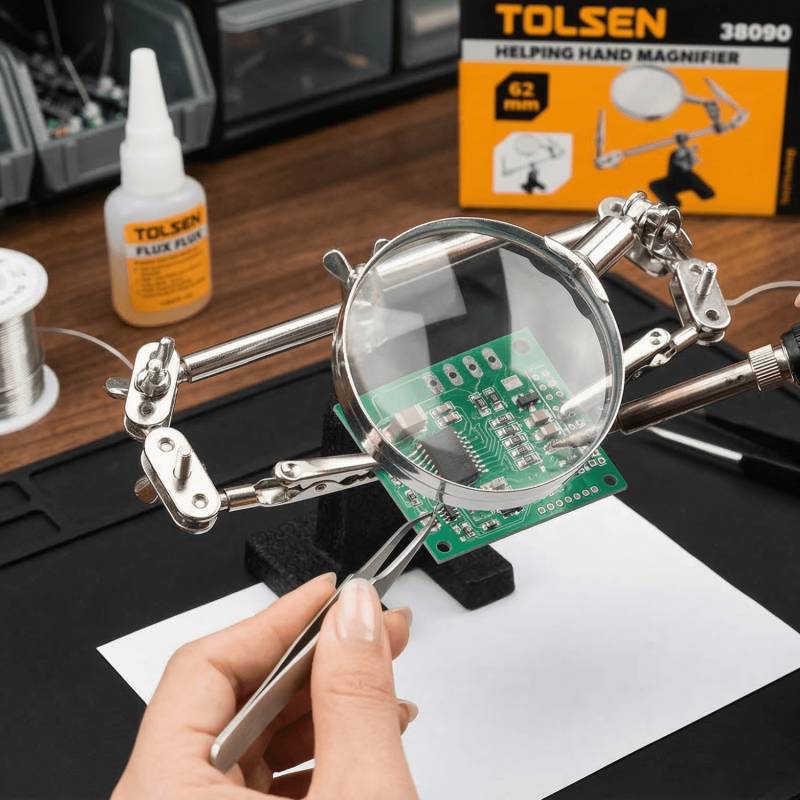

• Soldering small electronics and circuit boards
• Watch and clock repair
• Jewellery making and repair
• Scale model building and assembly
• Computer component inspection and repair
• Fine craft and detail work
• Reading very small text or component markings

How to Use

• Set Up the Base: Place the magnifier on a flat, stable surface close to your work area.

• Attach Your Workpiece: Open the crocodile clamps and position your component, wire, or board between the jaws, then release to grip firmly.

• Adjust the Clamp Arms: Reposition the arms to the angle that best supports the workpiece and holds it steady.

• Position the Lens: Move the magnifier arm over the work area and adjust height until the image comes into clear focus.

• Carry Out Your Work: With the workpiece held in place, use both hands freely to solder, repair, or assemble.

• Inspect the Result: Once finished, use the magnifier to check solder joints, connections, or fine detail before removing the workpiece from the clamps.

Frequently Asked Questions (FAQs)

• What is a helping hand magnifier used for?
  A helping hand magnifier holds small components in place using adjustable clamps, while a mounted lens magnifies the work area. It is commonly used for soldering, watch repair, jewellery work, and model building - any task where both hands need to be free, and the work area needs to be seen more clearly.

• What size is the lens on this magnifier?
  The lens is 62mm (1-1/2") in diameter. This provides a broad, clear view of the work area, making it well-suited to soldering and fine repair tasks.

• Can the clamps hold a circuit board securely?
  Yes. The spring-loaded crocodile clamps are adjustable in both angle and height, allowing them to hold circuit boards, wires, and small components firmly during soldering or inspection. Once positioned, the board stays in place without manual support.

• Is the base stable enough to use during soldering?
  The base includes a steel plate in the bottom compartment, which adds weight and prevents tipping. This holds the unit stable on a flat surface while working with a soldering iron or similar tools.

• What are the dimensions and weight of this helping hand magnifier?
  The unit measures 130mm (length) x 75mm (width) x 80mm (height) and weighs 385g. Its compact size means it sits on most standard workbenches without taking up excessive space.

Summary

The Tolsen Helping Hand Magnifier (38090) is a practical workbench tool with a 62mm glass lens and adjustable crocodile clamps that hold small components in place during soldering, repair, and fine assembly work. The steel plate weighted base prevents tipping, keeping the workpiece steady throughout each task. It is a solid, no-fuss addition to any soldering station, craft table, or repair workspace.
