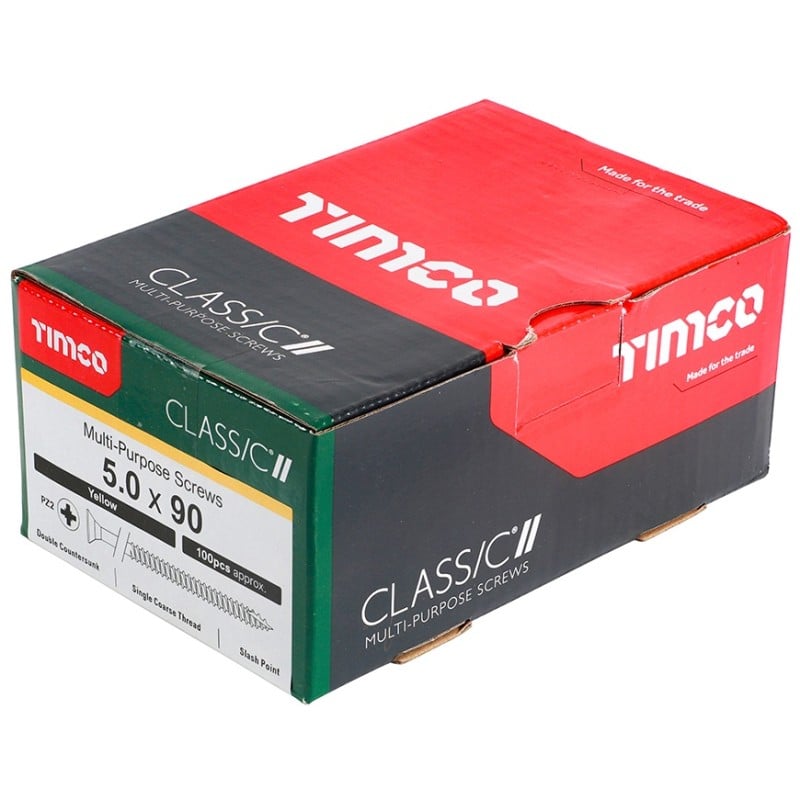

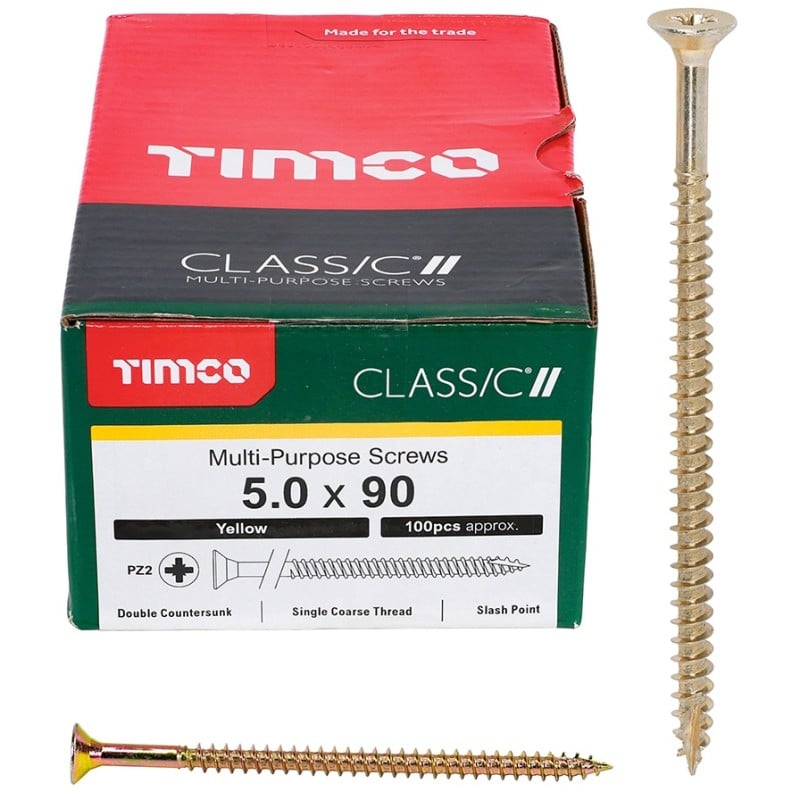

Timco Classic Multi Purpose Screws 5.0 x 90mm PZ D-Countersunk 100 BOX 50090CLAF

Timco Classic Multi Purpose Screws 5.0 x 90mm PZ Double Countersunk 100 BOX 50090CLAF

Approx Contents: Box of 100

Colour: Yellow

Drive: PZ2

MPN: 50090CLAF

Barcode: 5055017507498

Size: 5.0 x 90mm

Overview:

Timco Classic Multi Purpose Screws 5.0 x 90mm are high-performance PZ2 double countersunk screws designed for reliable fixing across a wide range of materials. Supplied in a box of 100, these yellow passivated screws feature a sharp 25° point, special thread design, and patented lubrication to improve insertion and reduce driving resistance. They offer strong holding power in timber and sheet materials, while the double countersunk head helps reduce head shear and supports a neat finish. This 5.0 x 90mm size is partially threaded and is suitable for use in hardwood, softwood, chipboard, MDF, plastic, and thin sheet metal.

Key Features

• Timco Classic multi purpose screw

• Size: 5.0 x 90mm

• PZ2 drive

• Double countersunk head helps reduce head shear

• Partially threaded design (90mm length)

• Sharp 25° point for fast start

• Patented lubrication helps improve insertion time

• Corrosion-resistant yellow zinc finish

• Deep single thread for secure fixing and pull-out resistance

• Single slash (25mm+) helps reduce torque and splitting near edges

Specifications

• Brand: Timco

• Product Range: Classic Multi Purpose Screws

• MPN: 50090CLAF

• Barcode: 5055017507498

• Size: 5.0 x 90mm

• Approx. Contents: Box of 100

• Colour / Finish: Yellow (zinc yellow finish)

• Drive Type: PZ2

• Head Type: Double countersunk

• Thread Type: Deep single thread

• Threading: Partially threaded

• Thread Length (80mm+ sizes): 70mm

• Point Type: 25° sharp point

• Material: Carbon steel

• Lubrication: Gleitmo lubrication

• Suitable Substrates: Hardwood, softwood, chipboard, MDF, plastic, thin sheet metal

Applications

• General wood fixing and joinery work

• Timber to timber fixing

• Chipboard and MDF installation

• Fitting plastic components to timber

• Fixing into hardwood and softwood

• Light-duty fixing into thin sheet metal

• Interior construction, repairs, and DIY projects

How to Use

• Select the correct screw length and diameter for the job.

• Mark and align the materials to be fixed.

• Use a PZ2 screwdriver bit for best fit and reduced cam-out.

• Pilot drill where required, especially in hardwood or near edges.

• Drive the screw until the double countersunk head seats neatly flush.

• Avoid overtightening to protect the material and fixing.

• Use suitable corrosion protection/specification for the environment.

Timco Classic Multi Purpose Screws 5.0 x 90mm – Key FAQs

• What size are these screws?
  These screws are 5.0 x 90mm.

• How many screws are in the box?
  This pack contains approximately 100 screws.

• What drive type do these screws use?
  They use a PZ2 (Pozi 2) drive.

• Are these screws fully threaded?
  No, this 90mm version is partially threaded. Lengths 80mm and above have a 70mm thread length.

• What materials can they be used in?
  They are suitable for hardwood, softwood, chipboard, MDF, plastic, and thin sheet metal.

• What is the benefit of the double countersunk head?
  It helps reduce the likelihood of head shear and assists a cleaner countersunk finish.

• What does the lubrication do?
  The patented lubrication helps improve insertion performance and also contributes to corrosion resistance.

• Do these screws help reduce splitting?
  Yes, the single slash on sizes 25mm+ helps reduce torque and the chance of splitting when fixing near edges.

• What are they made from?
  They are made from carbon steel with a zinc yellow finish and Gleitmo lubrication.

• Are these suitable for trade and DIY use?
  Yes, they are suitable for both professional and DIY fixing applications.

Important Notes

• This 5.0 x 90mm size is partially threaded

• Use a PZ2 bit for correct drive engagement

• Pilot drilling may be required in hardwoods or near edges

• Choose the correct screw type/coating for external or high-corrosion environments
