Silverline Feeler Measuring Gauge 26 Leave 0.051 to 0.636mm 763624

Silverline Feeler Measuring Gauge 26 Leave 0.051 to 0.636mm 763624

Barcode: 5024763034657

MPN: 763624

Product Overview:

The Silverline Feeler Measuring Gauge 763624 is a compact, precision 26 leaf feeler gauge designed for accurately measuring gaps and clearances between components such as spark plugs and valve clearances. With blades ranging from 0.051mm to 0.636mm, it’s ideal for fine adjustment tasks such as spark plug gaps, tappet and valve clearances, shims and other close-tolerance settings in automotive, engineering and maintenance work.

Each leaf is made from hardened and polished carbon steel for durability and corrosion resistance, and is clearly stamped with its size for quick identification. The leaves fold neatly into the body when not in use, protecting them from damage and keeping the gauge easy to carry in a pocket or tool bag.

Key Features:

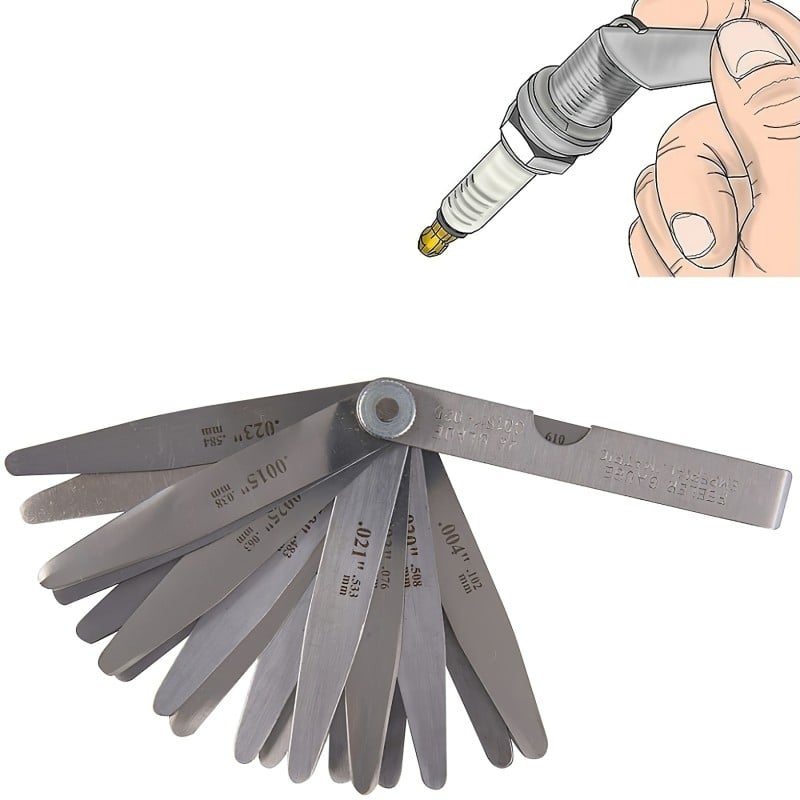

• 26 leaf feeler gauge for precise gap measurement

• Metric range from 0.051mm to 0.636mm (approx. 0.002" to 0.025")

• Hardened and polished carbon steel leaves for accuracy and long life

• Each leaf is clearly marked with its size for quick selection

• Folds into a compact holder for protection and easy storage

• Ideal for fine adjustment and inspection work in automotive and engineering applications

Applications:

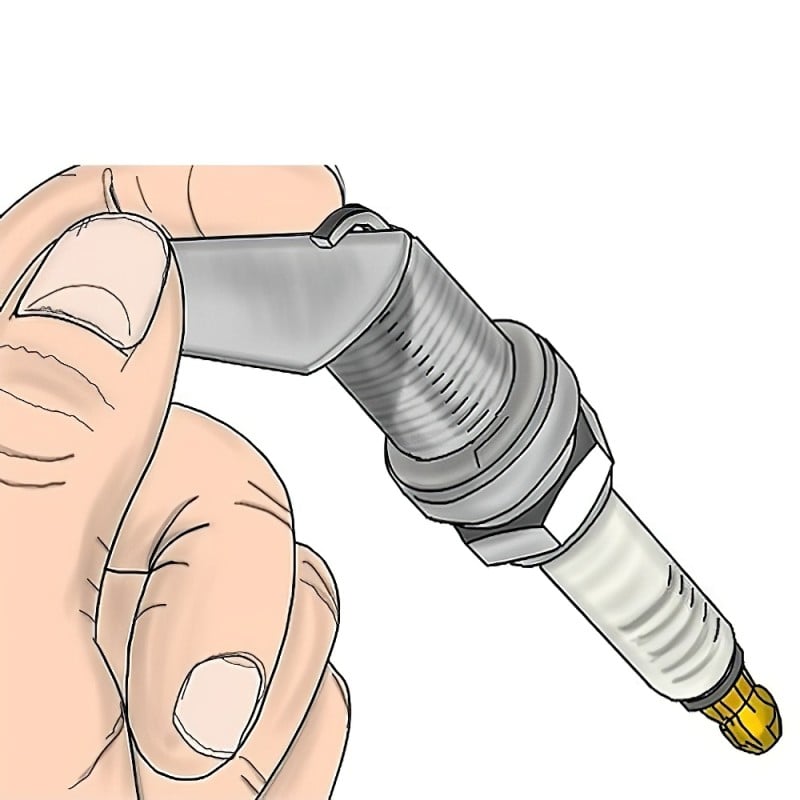

• Setting and checking spark plug gaps

• Measuring tappet and valve clearances

• Checking gaps in bearings, shims and precision assemblies

• General engineering, machine setup and maintenance

• Hobby, workshop and professional automotive use

How to Use:

• Select the leaf (or combination of leaves) closest to the required gap size.

• Slide the leaf gently into the gap between the two components.

• A correct setting will give a slight drag on the leaf—too tight and the leaf will not move; too loose and it will slide freely.

• Adjust the component (e.g. spark plug electrode or tappet) until the desired feel is achieved.

• Wipe the leaves clean after use and fold them back into the holder for protection.

Specifications:

• Number of Leaves: 26

• Measurement Range: 0.051mm to 0.636mm (approx. 0.002"–0.025")

• Material: Hardened carbon steel

• Finish: Polished

• Markings: Size stamped on each leaf

• Type: Combination leaf feeler gauge

FAQs:

• • What is the measurement range of this feeler gauge?
  The gauge covers a metric range from 0.051mm to 0.636mm, suitable for fine gap measurements such as spark plug gaps and valve clearances.

• • Are the leaves individually marked?
  Yes, each leaf is clearly stamped with its size, making it quick and easy to select the correct thickness.

• • What is the gauge made from?
  The leaves are manufactured from hardened and polished carbon steel for accuracy, wear resistance and long service life.

• • Is this suitable for automotive work?
  Absolutely. It is ideal for spark plug gap setting, tappet and valve clearance checks, and other precision measurements on engines.

• • Can I combine leaves to achieve in-between sizes?
  Yes, you can stack two or more leaves together to obtain combined thicknesses where required, provided you note the total value.

• • How should I store and care for the feeler gauge?
  Fold the leaves back into the body after use, wipe them clean, and store in a dry place to help prevent corrosion and maintain accuracy.
