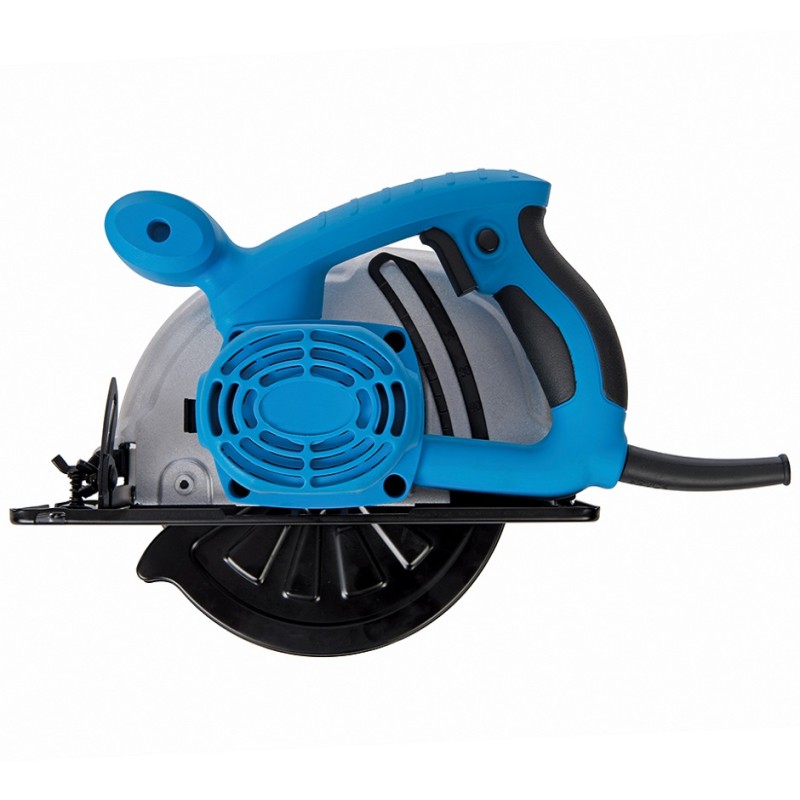

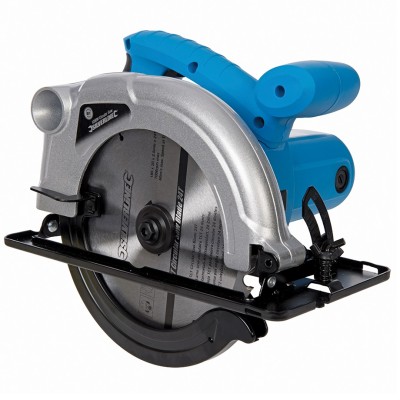

Silverline DIY Electric Power Circular Saw 185mm 1200w 845135

Silverline DIY Electric Power Circular Saw 185mm 1200 watt - 845135

Barcode: 5024763044281

MPN: 845135

Overview:

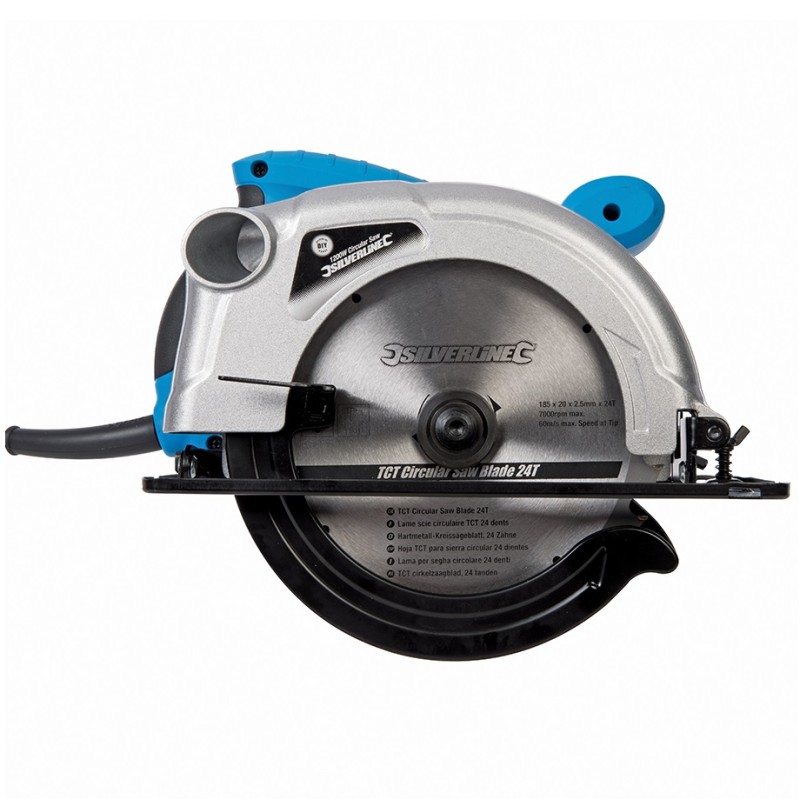

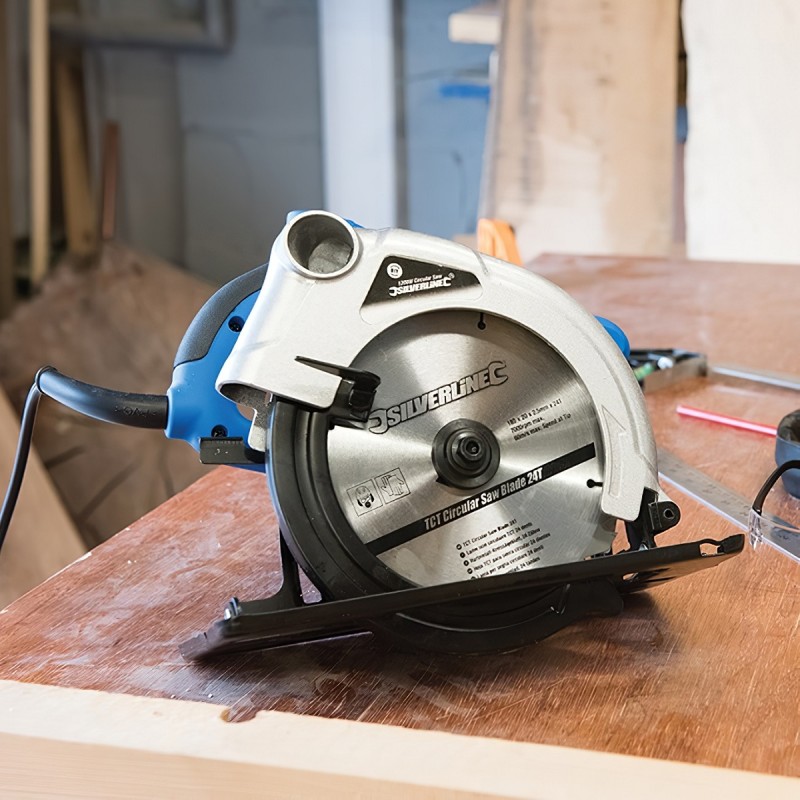

The Silverline 1200W 185mm DIY Circular Saw is a robust hand-held saw designed for straight, fast cuts in timber and sheet materials. With a maximum cutting depth of 63mm at 90° and 37mm at 45°, it’s well suited to general DIY jobs such as trimming doors, cutting boards, flooring and worktops.

Supplied with a fast-cutting 185mm 24T TCT blade, this circular saw features adjustable depth and bevel settings with clear scales, an all-metal base and guards, plus a dust extraction port to help keep the work area cleaner. A soft-grip main handle and safety lock-off button add comfort and control during use.

Key Features

• 1200W DIY circular saw for general timber and sheet cutting

• 185mm tungsten carbide-tipped 24T blade included for fast, clean cuts

• Max cutting depth 63mm at 90° and 37mm at 45°

• 0–45° bevel adjustment with visible bevel scale

• All-metal base and blade guards with guard lever for controlled plunge and safety

• Depth adjuster with scale for quick, repeatable depth settings

• Soft-grip main handle and safety lock-off for safer starting

• Dust extraction port for connection to a vacuum or extractor

• Easy-access brush covers for simpler maintenance

Specifications

• Brand: Silverline Tools

• Product Type: Electric circular saw

• Power: 1200W

• Blade Diameter: 185mm

• Blade Type: 24T TCT (tungsten carbide-tipped)

• Max Cutting Depth at 90°: 63mm

• Max Cutting Depth at 45°: 37mm

• Bevel Range: 0–45° with scale

• Base / Guards: All-metal base and blade guards

• Handle: Soft-grip main handle

• Controls: Safety lock-off button, depth adjuster with scale

• Dust Extraction: Integrated dust extraction port

• Brush Access: External brush covers for easy access

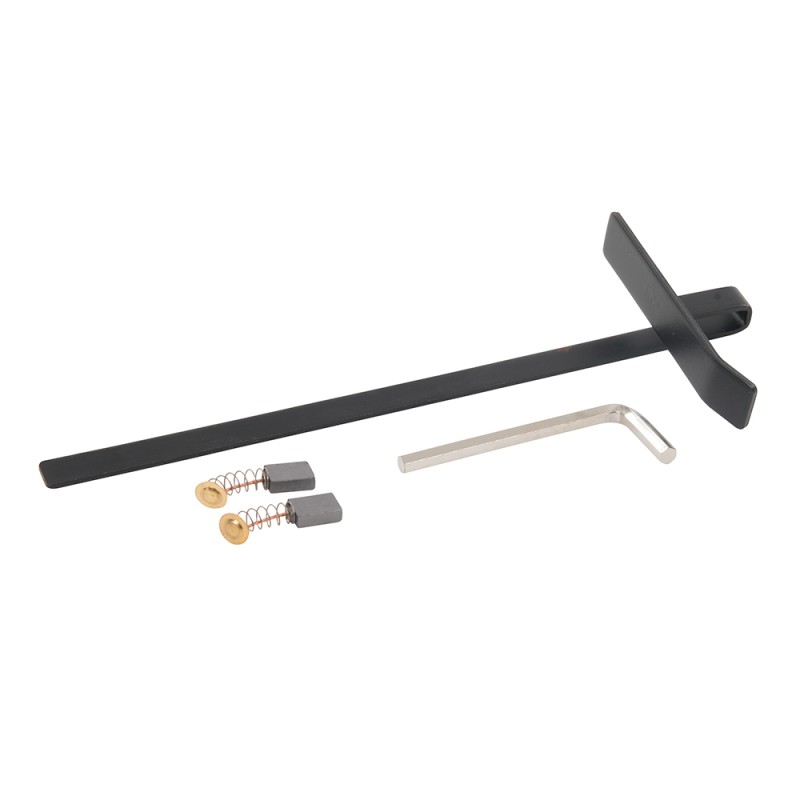

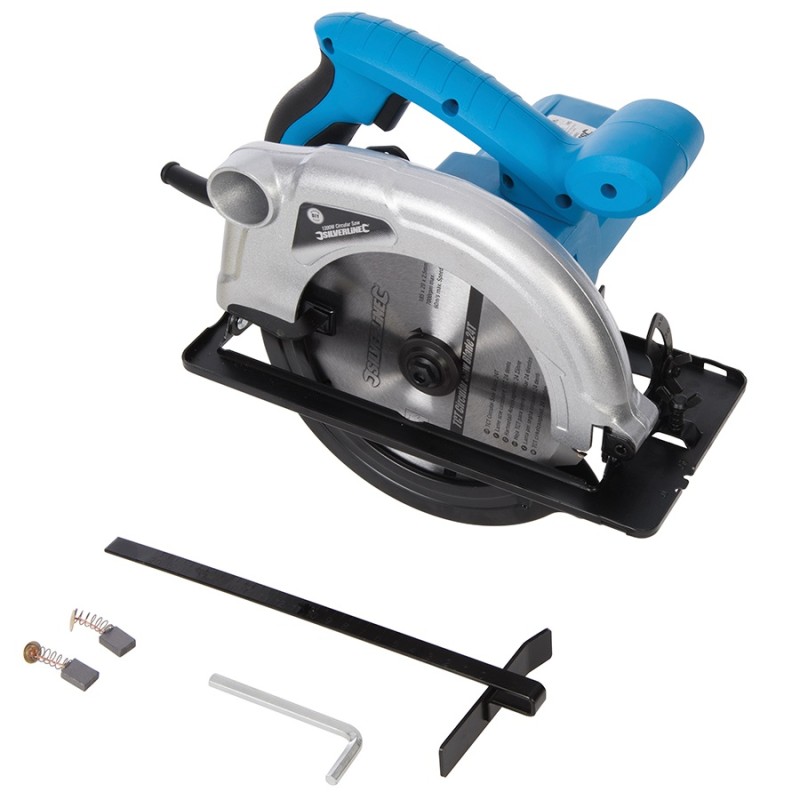

• Included Accessories:

  • 1 x 185mm 24T TCT blade

  • 1 x Blade hex key

  • 1 x Parallel fence (rip fence)

Applications

• Cutting timber, sheet materials and boards to length or width

• Trimming doors, worktops, flooring and panelling

• Bevel cuts for framing, trim and general carpentry

• General DIY renovation and construction projects around the home

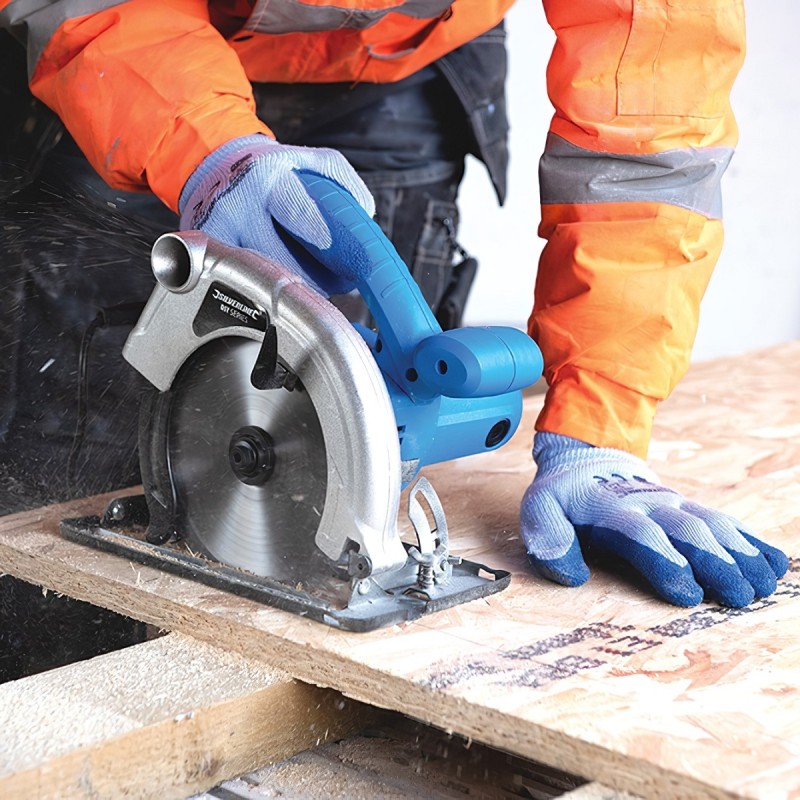

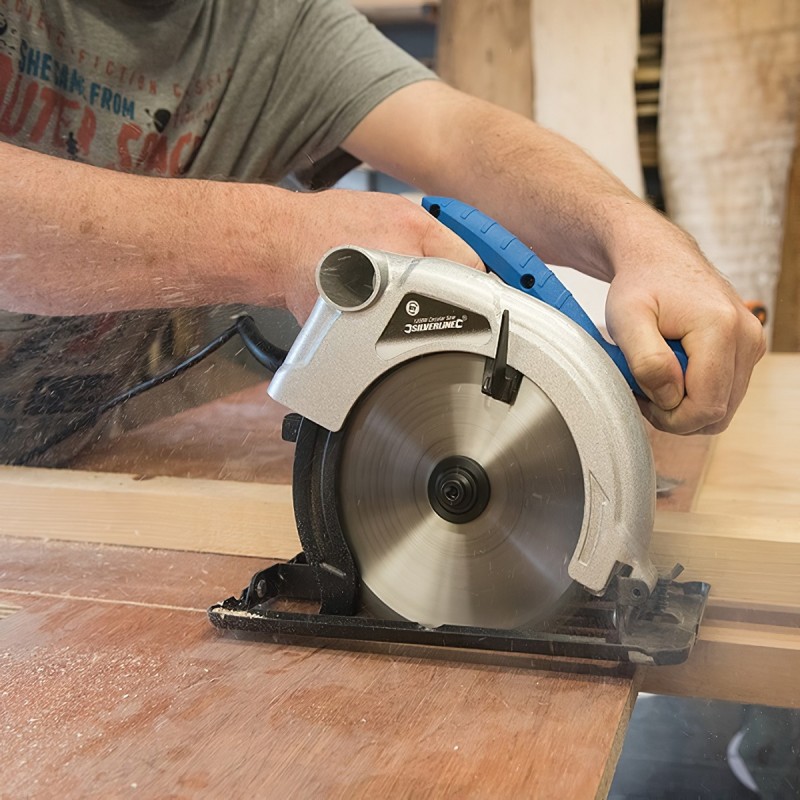

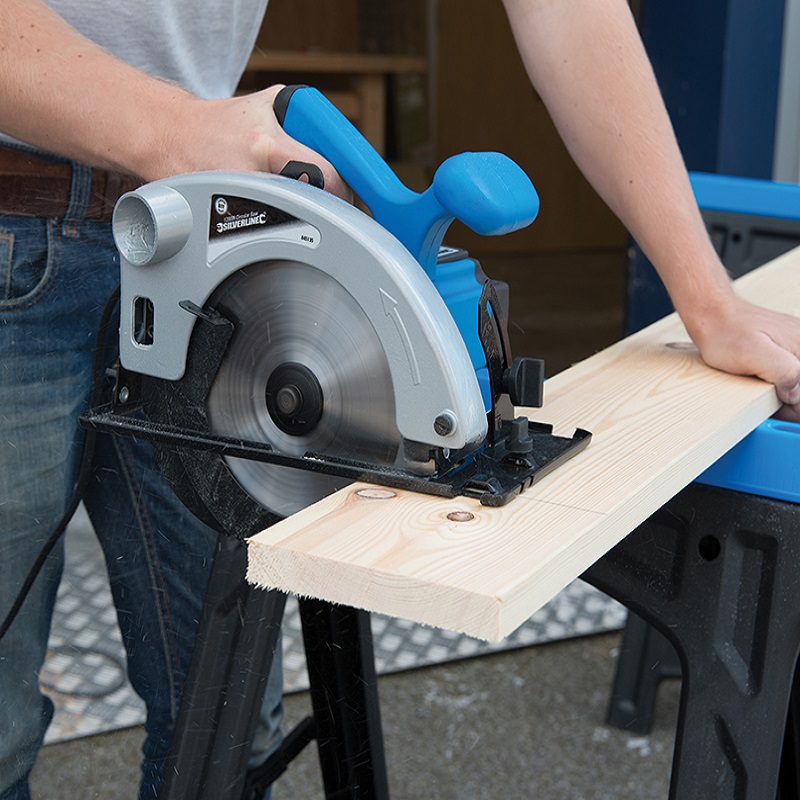

How to Use

• Fit the supplied 185mm 24T TCT blade, ensuring it is tightened securely with the hex key.

• Set the required cutting depth using the depth adjuster and scale so the blade just projects below the workpiece.

• Adjust the bevel angle between 0–45° as needed and tighten the locking levers.

• Connect a suitable vacuum or extractor to the dust port if available for cleaner cutting.

• Position the base plate on the workpiece, align using the parallel fence if required, then press the safety lock-off and start the saw.

• Guide the saw smoothly along the cut line without forcing it, allowing the blade to do the work.

Silverline Tools Guarantee:

Hand tools are guaranteed forever other tools are guaranteed for 3 years unless stated. This simply means all hand tools are guaranteed to be free of defects caused by faulty materials or workmanship from now until the end of time. Naturally, fair wear and tear is not covered so do not expect blades to stay sharp forever.

To Register your product. Click here Silverline Tools Guarantee this must be done to extend your Silverline Guarantee.
