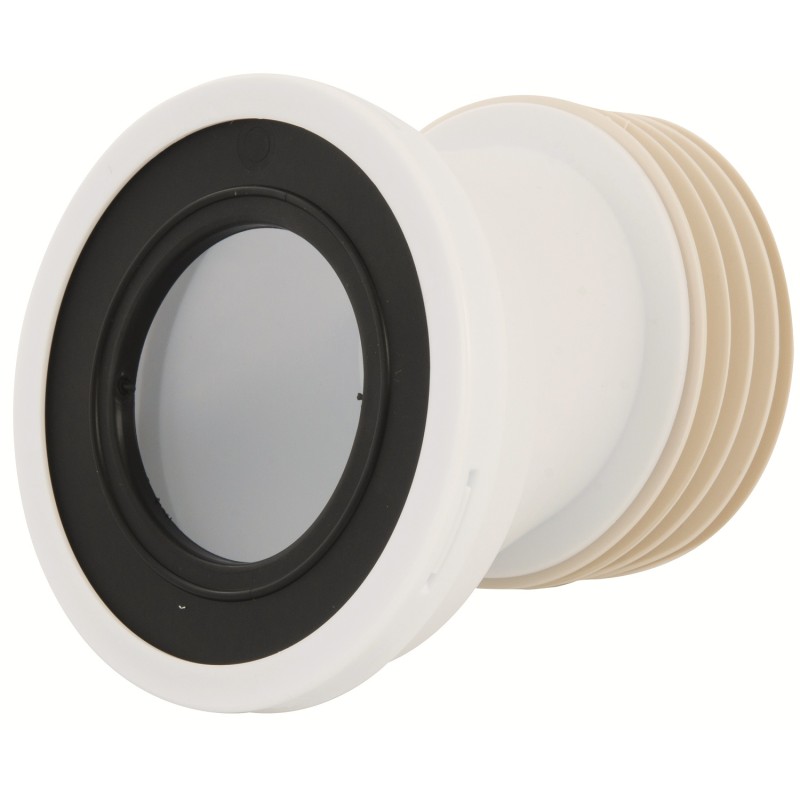

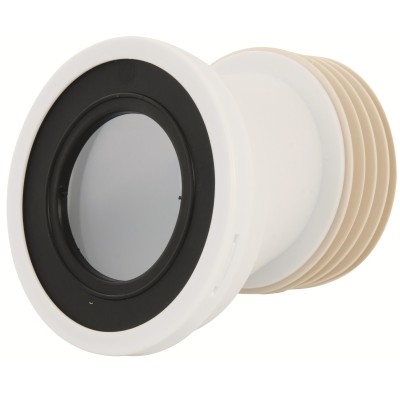

Plumbob Toilet Pan 20mm Offset Soil Pipe Connector 110mm Dia 910401

Plumbob Toilet Pan 20mm Offset Soil Pipe Connector 110mm Diameter 910401

Barcode: 5024763202544

MPN: 910401

Product Overview:

The Plumbob 20mm Offset Toilet Pan Soil Pipe Connector is a reliable and practical solution for connecting toilet pans to standard 110mm soil pipes, especially in installations where alignment is slightly off. The 20mm offset design helps accommodate slight misalignments between the pan outlet and the soil pipe, making it easier to complete plumbing installations without major adjustments. Made from durable plastic and fitted with flexible seals, this connector ensures a watertight and secure connection with long-lasting performance.

• Toilet Soil Pipe connector made with a durable polypropylene construction 20mm Offset Toilet pan Connector.
• Connects rear of WC to the waste soil pipe.
• Integral sealing diaphragm allows up to 5 Degree misalignment in any direction.
• Lightweight, strong and cost-effective.
• White colour 5 compression pipe seals.
• Using an offset toilet connector tends to be easier to use than a straight connector sometimes even if you don't need an offset, entry into the building and heights of floors can be a little off, always one to have in the van ready when you need it

Key Features:

• 20mm offset to help correct minor pan-to-pipe misalignments

• Compatible with standard 110mm soil pipe systems

• Strong and durable construction for long-term use

• Flexible rubber seals ensure leak-free connection

• Quick and easy to install – no specialist tools required

• Ideal for new installations or replacement work

Applications:

• Connecting WC toilet pans to soil waste pipes

• Correcting misaligned connections in confined or awkward spaces

• Suitable for residential and commercial bathroom installations

Specifications:

• Product Code: 910401

• Type: Offset soil pipe connector

• Offset: 20mm

• Diameter: 110mm

• Material: Durable plastic body with flexible rubber seals

• Installation: Push-fit design for fast and secure fitting

Frequently Asked Questions:

1. What is the purpose of the 20mm offset?
   It allows for correcting small misalignments between the toilet pan outlet and the soil pipe entry point.

2. Is this compatible with all 110mm soil pipes?
   Yes, it fits standard 110mm external diameter soil pipes.

3. Can this be used on vertical or horizontal connections?
   It’s typically used in horizontal rear or bottom toilet pan connections but can work in other orientations if supported properly.

4. Does it require any sealant?
   No additional sealant is usually needed thanks to the integrated flexible seals, though some installers use lubricant for easier fitting.

5. Is it suitable for use with back-to-wall pans?
   Yes, as long as the dimensions and alignment fit within the 20mm offset range.

6. Can it be cut to size?
   No, it’s not designed to be trimmed; select the correct offset or use an adjustable connector if needed.

7. Is it suitable for high-pressure waste systems?
   This is intended for gravity-based domestic soil systems, not for pressurised systems.

8. Does it come with fixing clips or brackets?
   No, this is a standalone connector; any necessary supports should be purchased separately.

9. Is it reusable?
   While technically reusable, it's recommended to replace it when reinstalling for best performance and sealing.

10. What material is it made from?
    Tough plastic body with pre-fitted flexible rubber seals for secure and watertight installation.
