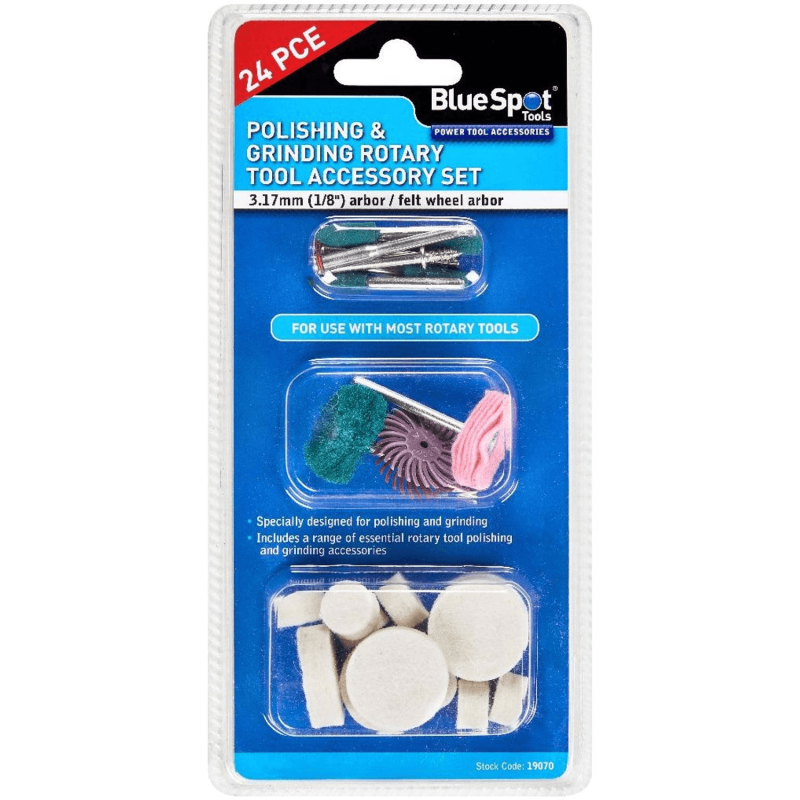

Blue Spot Tools 24PC Polishing & Grinding Rotary Tool Accessory Set 3.17mm (1/8") Shank 19070

Blue Spot Tools 24 Piece Polishing & Grinding Rotary Tool Accessory Set 3.17mm (1/8") Shank 19070

MPN: 19070

Barcode: 5028734190700

Size: 3.17mm (1/8") Shank

Weight: 0.65kg

Overview:

The Blue Spot Tools 24-piece polishing and grinding set gives you all of the accessories needed for rotary tool finishing work. The kit fits most rotary tools via a standard 3.17mm (1/8") shank.

The set also comes with rubber-mounted stones, polishing wheel brushes, felt wheels, arbors, and diamond radial discs. As well as a 320 grit brown and a 600 grit purple radial disc, adding two finishing stages to the kit.

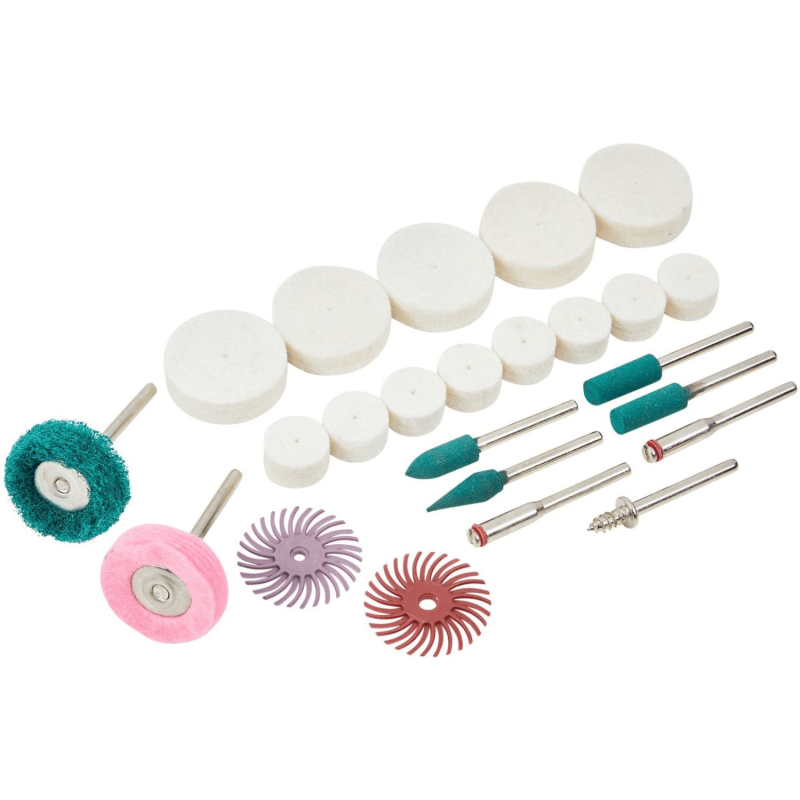

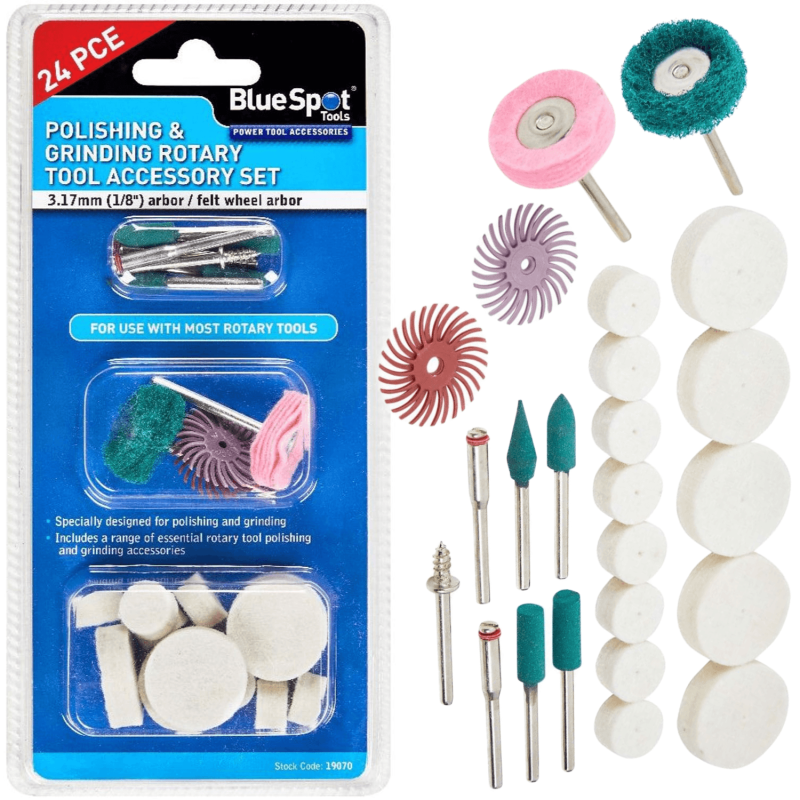

What's Included

• 4 x Rubber-Mounted Stones: 3.17mm (1/8") Shank
• 2 x Polishing Wheel Brushes: 3.17mm (1/8") Shank
• 2 x Arbors: 3.17mm (1/8")
• 1 x Felt Wheel Arbor: 3.17mm (1/8")
• 13 x Assorted Felt Wheels
• 2 x Diamond Radial Discs: Purple 600 grit & Brown 320 grit

Key Features and Benefits

• Broad Compatibility: The 3.17mm (1/8") shank works with most rotary tool brands on the market.
• Two Diamond Radial Disc Grits: A 320 grit brown disc and a 600 grit purple disc give you two abrasive stages for finishing work.
• Varied Felt Wheel Sizes: The 13 assorted felt wheels span multiple sizes, so you can match the wheel to the surface area you are working on.
• Rubber-Mounted Stones: Four rubber-mounted stones cover grinding tasks, providing dedicated abrasive accessories for material removal.
• Polishing Wheel Brushes: Two wheel brushes extend the set's polishing capability beyond the felt wheel range.

Specs & Attributes

• Shank Size: 3.17mm (1/8")
• Weight: 0.65kg
• Set: 24 pieces
• Diamond Radial Disc Grits: 320 grit (brown) & 600 grit (purple)

Typical Applications

• Metal surface polishing using felt wheels
• Grinding and smoothing rough metal edges with rubber-mounted stones
• Deburring machined or cut metal components
• Working through grit stages for a progressively finer surface finish
• Detail polishing work requiring felt wheels in different sizes
• Surface finishing with diamond radial discs

How to Use

• Select Accessory: Choose the right attachment for your task - grinding stones, polishing brushes, felt wheels, or radial discs.

• Attach to Tool: Insert the 3.17mm (1/8") shank into your rotary tool's collet and tighten it securely before switching on.

• Grinding Stage: Move the rubber-mounted stones steadily over the surface to grind and remove material evenly.

• Finishing Stage: Start with the 320 grit brown radial disc, then switch to the 600 grit purple for a finer finish.

• Polishing Stage: Fit a felt wheel or polishing wheel brush for the final polishing pass.

Frequently Asked Questions (FAQs)

• What are felt wheels used for on a rotary tool?
  Felt wheels are polishing attachments used to buff and smooth surfaces. They work alongside polishing compound to address microscopic surface marks and restore shine. Their compressed fibre construction holds compound well and conforms slightly to the workpiece shape.

• Do radial bristle discs require polishing compound?
  Radial bristle discs are typically used dry. The abrasive grit is embedded into the bristle material itself, so no additional compound is needed.

• What does the grit number mean on polishing accessories?
  Grit number indicates how coarse an abrasive is - the higher the number, the finer the abrasive. A 320-grit disc removes material more aggressively than a 600-grit disc. Start with the lower grit to prepare the surface, then progress to the higher grit for a finer result.

• What PPE should I wear when using rotary tool accessories?
  Always wear safety glasses or goggles to protect against flying debris. A dust mask is also recommended when grinding or polishing, as both processes generate fine particles. Keep loose clothing secured away from the tool while it is in use.

• What is an arbor in a rotary tool accessory set?
  An arbor, also called a mandrel, holds accessories that lack their own fixed shank. The accessory mounts onto the arbor, which then fits into the rotary tool's collet.

Summary

Blue Spot Tools' 24-piece grinding and polishing set provides a full accessory range for rotary tool work. All shanks are 3.17mm (1/8"), giving compatibility with most rotary tool brands.
