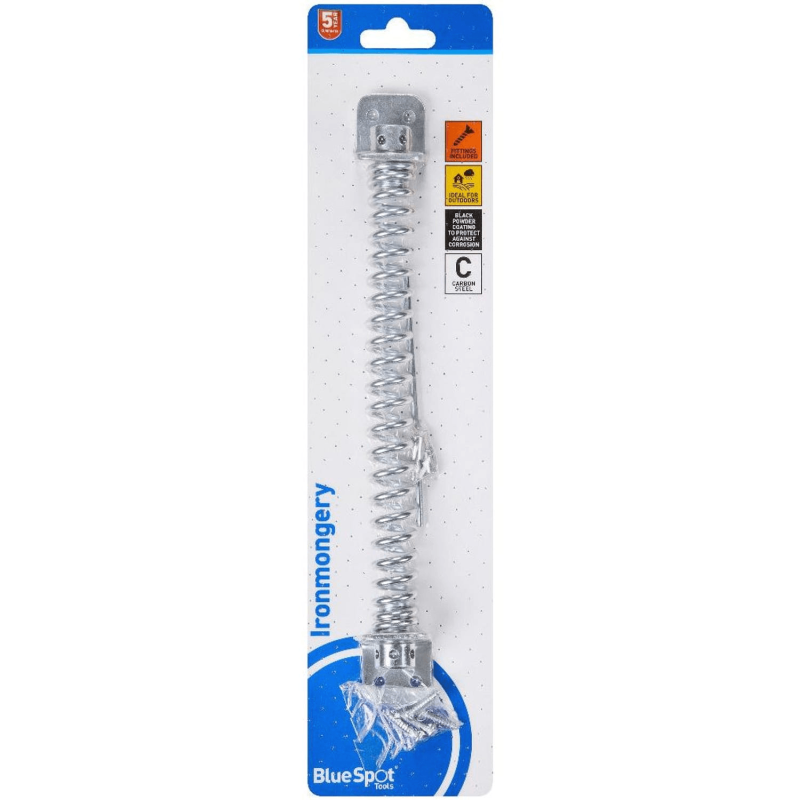

Blue Spot Tools Ironmongery 250mm Zinc Plated Gate Spring 78049

Blue Spot Tools Ironmongery 250mm Zinc Plated Gate Spring

MPN: 78049

Barcode: 5028734780499

Size: 250mm

Weight: 0.29kg

Overview:

The Blue Spot Tools 78049 is a 250mm gate spring made from carbon steel, built for permanent outdoor installations. It fits wooden gates, fences, and shed doors, pulling the gate back to its closed position after each use.

The zinc-plated coating protects the steel body against rust and corrosion, making it well-suited to exposed outdoor conditions. All the fittings needed for installation are included in the pack. This gate spring carries a 5-year guarantee from Blue Spot Tools, giving you added peace of mind alongside everyday use.

Key Features and Benefits

• Carbon Steel Build: Constructed from carbon steel for a strong, lasting gate hardware solution.
• Zinc Plated Protection: The coating guards against rust and corrosion in outdoor conditions.
• Self-Closing Action: Automatically returns the gate to its closed position after each pass-through.

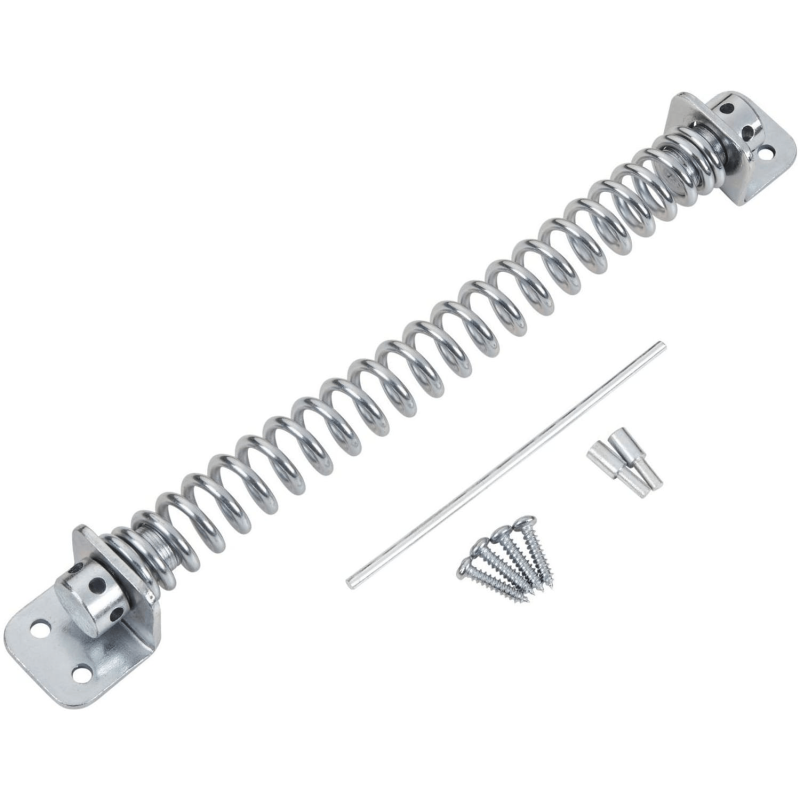

• Fixings Included: Comes complete with all the necessary fittings for a straightforward installation.
• 5 Year Guarantee: Backed by a 5-year manufacturer's guarantee from Blue Spot Tools.

Specs & Attributes

• Size: 250mm
• Weight: 0.29kg
• Material: Carbon steel
• Finish: Zinc plated
• Use: External

Typical Applications

• Wooden garden gates
• Fence access gates
• Shed doors
• Outbuilding entrance doors
• Side gate installations
• Domestic outdoor gate fittings

How to Use

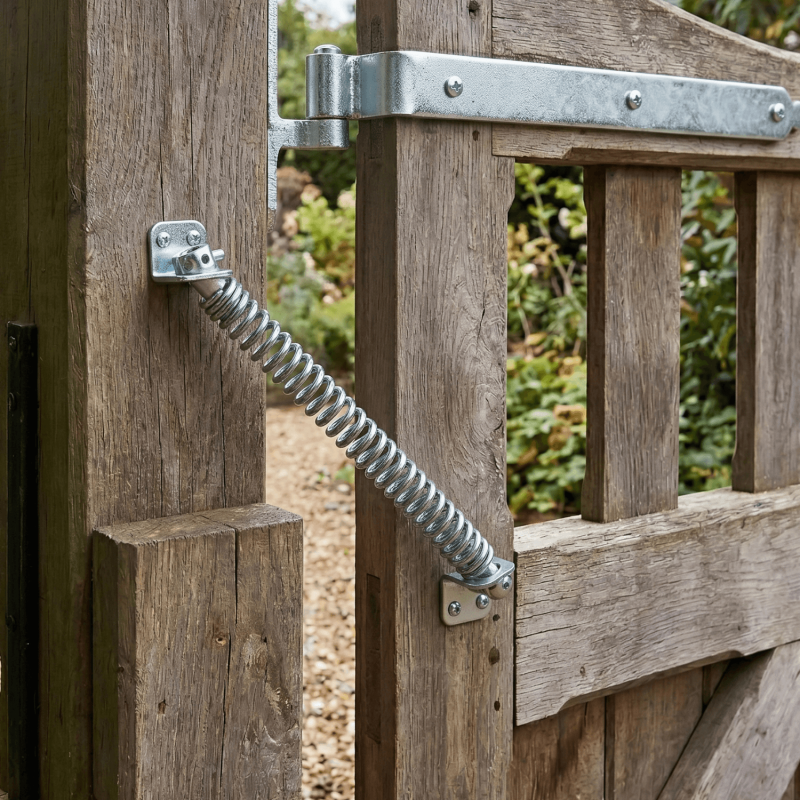

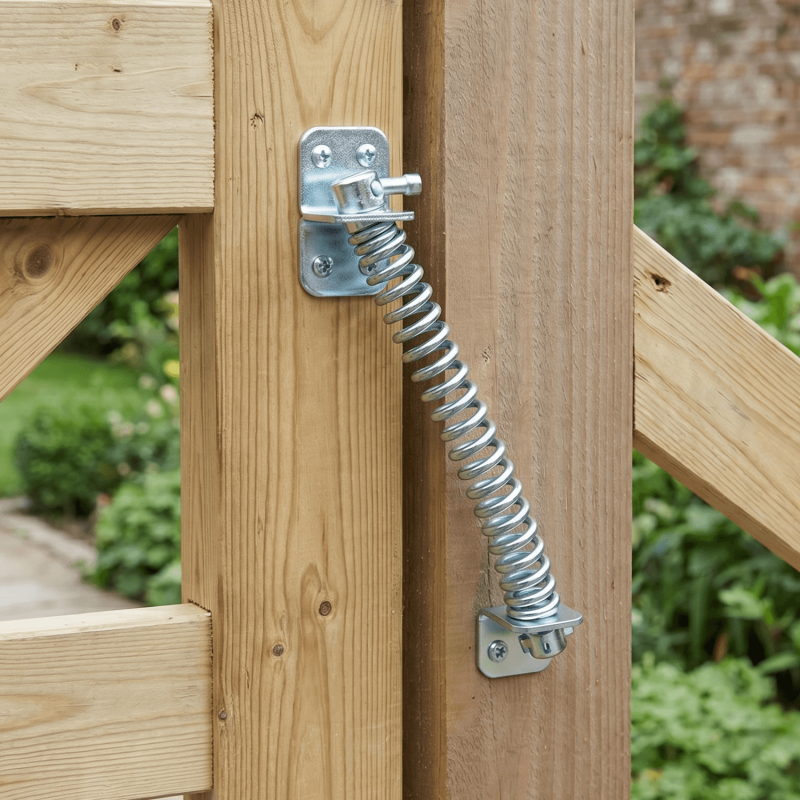

• Position the Spring: Hold the spring against the hinge side of the gate. Align it vertically between the gate and the gate post.

• Mark and Drill: With the gate closed, mark the screw hole positions. Drill pilot holes to prevent the wood from splitting during fixing.

• Fix the Brackets: Drive the supplied screws through both mounting brackets - one to the gate post, one to the gate itself.

• Set the Tension: Insert the tension rod into the adjustment hole at the top of the spring. Turn clockwise to increase the closing force.

• Lock and Test: Place the locking pin into one of the holes near the bracket to hold your tension setting. Open and close the gate to check the closing speed, and re-adjust if needed.

Frequently Asked Questions (FAQs)

• How do you fit a gate spring to a wooden gate?
  Attach the top of the spring to the gate hinge using the existing hinge screw, then secure the lower bracket to the gate post. Drill pilot holes beforehand to avoid splitting the wood. Insert the tension rod and turn it to set the closing speed, then lock it in place with the supplied pin.

• Which side of the gate does a gate spring go on?
  A gate spring mounts on the hinge side of the gate. The spring runs between the gate and the gate post, positioned as vertically as possible so the tension pulls evenly when the gate closes.

• How do you adjust the tension on a gate spring?
  Insert the tension rod (or key) into the adjustment hole at the top of the spring. Turn it clockwise to tighten the tension and increase the closing speed, or anti-clockwise to loosen it. Once set, insert the locking pin to hold the adjustment in place.

• Can a gate spring be fitted to a metal gate?
  Yes, though you will need self-tapping screws rather than the standard wood screws supplied. Self-tapping screws bite into the metal surface directly, holding the brackets securely without pre-drilling a thread.

• What size gate spring do I need?
  The correct size depends on the weight and width of your gate. A 250mm coil spring suits lighter wooden garden gates. Heavier timber or wide gates may need a larger or adjustable closer. Always check the manufacturer's maximum weight capacity before fitting.

Summary

The Blue Spot Tools Ironmongery Gate Spring (78049) is a 250mm carbon steel gate spring with a zinc-plated finish, designed for permanent outdoor use on wooden gates, fences, and shed doors. It comes complete with all the necessary fittings and is backed by a 5-year manufacturer's guarantee.
