Blue Spot Tools Ironmongery 204mm Black Powder Coated Gate Spring 78046

Blue Spot Tools Ironmongery 204mm Black Powder Coated Gate Spring

MPN: 78046

Barcode: 5028734780468

Size: 204mm

Weight: 0.28kg

Overview:

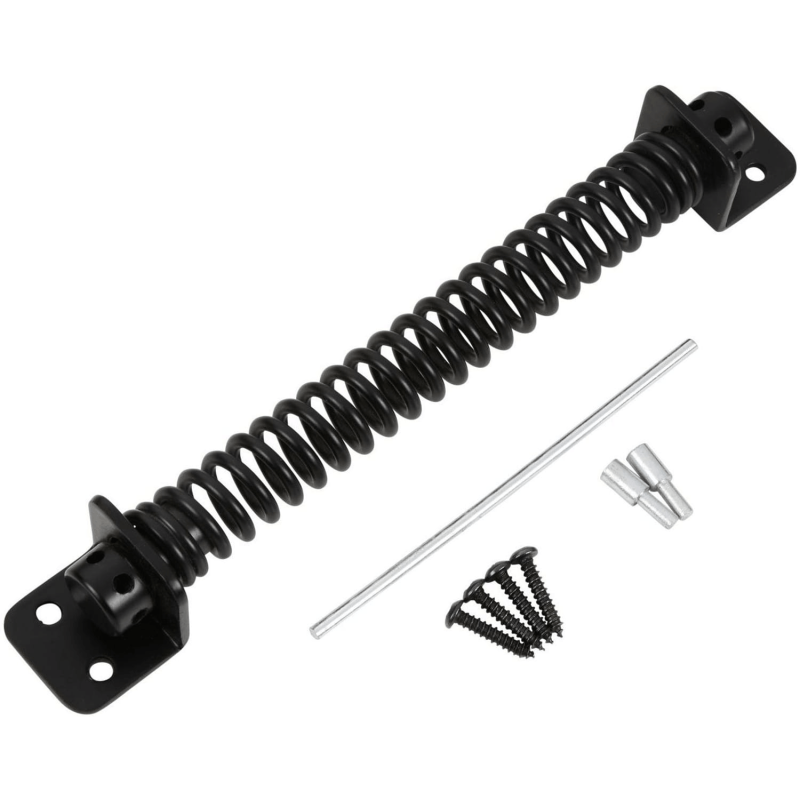

This 204mm gate spring from Blue Spot Tools is built from carbon steel with a black powder-coated finish. It suits permanent outdoor installation on wooden gates, fences, and shed doors. All the necessary fittings are included, so there is nothing extra to source before you start. The spring carries a 5-year guarantee from Blue Spot Tools.

Key Features and Benefits

• Carbon Steel Body: Provides the strength needed for repeated outdoor use on gates and doors.
• Black Powder Coated Finish: Guards the steel against rust and corrosion in exposed outdoor conditions.
• Fittings Included: All necessary fixings are supplied, so the spring is ready to fit straight out of the box.
• 5 Year Guarantee: Backed by Blue Spot Tools' manufacturer warranty for added peace of mind.

Specs & Attributes

• Material: Carbon steel
• Finish: Black powder coat
• Size: 204mm
• Weight: 0.28kg

Typical Applications

• Wooden garden gates
• Fence access gates
• Shed doors
• Outbuilding entrance doors
• Side gate installations
• Garden enclosure gates

How to Use

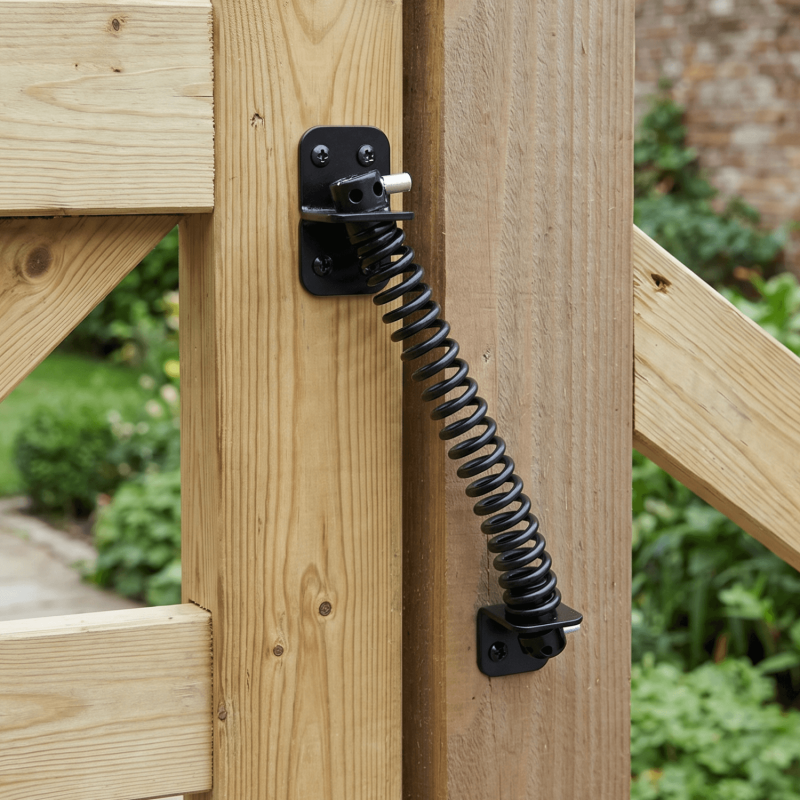

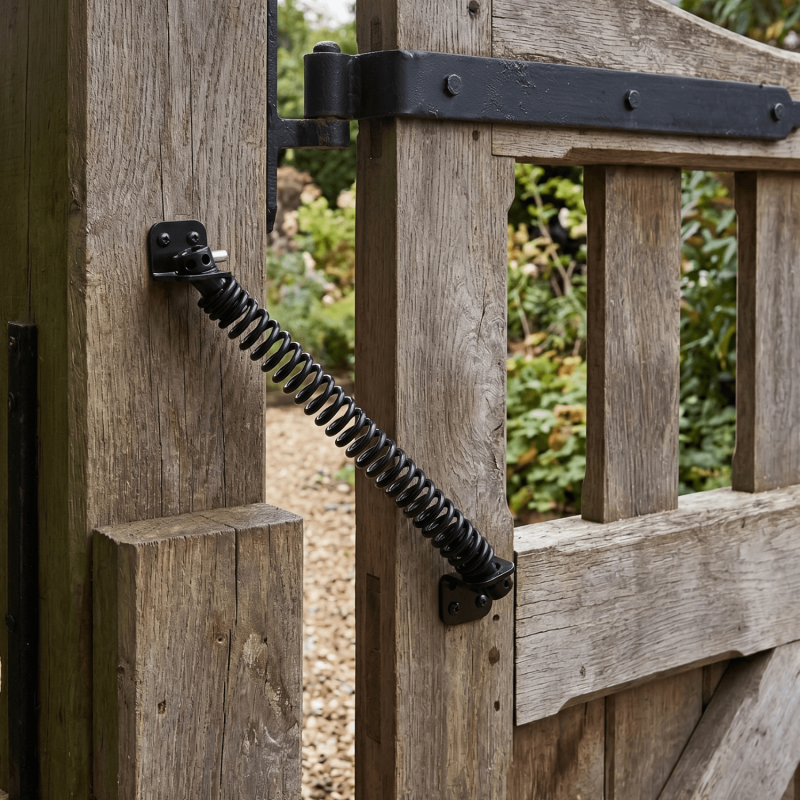

• Position the Spring: Hold the spring diagonally across the gate on the hinge side to find the fixing points.

• Mark the Fixing Points: Use a pencil to mark the screw positions at both ends of the spring.

• Pre-Drill Pilot Holes: Drill pilot holes at the marked positions to prevent the wood from splitting.

• Attach the Gate End: Fix one end of the spring to the gate rail using the supplied fittings.

• Attach the Post End: Fix the remaining end to the gate post or adjoining fence section.

• Test the Action: Open and close the gate several times to check that the spring closes it fully.

Frequently Asked Questions (FAQs)

• What does a gate spring do?
  A gate spring uses tension to return a gate to the closed position automatically after it has been opened.

• Which side of the gate should a gate spring be installed on?
  Gate springs are typically installed on the same side as the hinges. This positions the spring to push the gate shut as it swings open.

• Can a gate spring be used on a wooden gate?
  Yes. Gate springs are commonly used on wooden gates. One end attaches to a horizontal rail on the gate, and the other to the post or fence section.

• How do you adjust the tension on a gate spring?
  Tension is adjusted by rotating the tensioning mechanism on the spring body. Test the closing action after each small adjustment rather than winding it all at once.

• How long does a gate spring last?
  Lifespan varies depending on usage frequency, climate, and material quality. Springs used more frequently wear faster, and exposure to moisture or harsh weather accelerates deterioration. A corrosion-resistant finish helps extend service life in outdoor conditions.

Summary

The Blue Spot Tools 204mm black powder-coated gate spring is a carbon steel self-closing spring for permanent outdoor use on wooden gates, fences, and shed doors. It comes with all necessary fittings and is backed by a 5-year guarantee.
