Tolsen Industrial LCD Digital Multimeter 200/600V 38030

Tolsen Industrial LCD Digital Multimeter 200/600V

MPN: 38030

Barcode: 6933528738169

Size: 115mm x 110mm x 55mm (L x W x H)

Weight: 345g

Overview:

The Tolsen Industrial LCD Digital Multimeter is a CE-approved electrical testing meter with a 1999 count backlit LCD colour display. It measures DC and AC voltage up to 600V, DC current up to 10A, and resistance up to 2MΩ across multiple selectable ranges. A 6F22 (9V) battery and test probes are included.

The meter covers five DC voltage ranges - 200mV, 2V, 20V, 200V, and 600V - and five DC current ranges from 200μA up to 10A. AC voltage measurement spans 200V and 600V ranges, while resistance measurement runs from 200Ω up to 2MΩ across five ranges.

Built-in overload protection guards the meter against accidental overvoltage or overcurrent input during testing. At 345g and 115mm x 110mm x 55mm, the compact body is easy to carry and handle on site.

Key Features and Benefits

• CE Approved: Meets CE safety requirements for use in professional and trade environments.
• 1999 Count LCD Display: Provides clear, accurate readings across all measurement modes.
• Backlit Screen: The built-in backlight allows readings to be taken in low-light or dark work areas.
• DC Voltage Measurement: Five selectable ranges - 200mV, 2V, 20V, 200V, and 600V.
• AC Voltage Measurement: Covers 200V and 600V ranges for mains and lower-voltage AC circuits.
• DC Current Measurement: Five ranges from 200μA up to 10A for small and larger DC current readings.
• Resistance Measurement: Five ranges from 200Ω up to 2MΩ for testing wiring and component resistance.
• Overload Protection: Protects the meter from damage if a voltage or current beyond the selected range is applied.
• Battery Included: Supplied with a 6F22 (9V) battery - ready to use straight from the box.
• Probes Included: Test probes are included, so no additional accessories are needed to get started.
• Compact and Lightweight: At 345g and 115mm x 110mm x 55mm, the meter is easy to carry and use in the field.

Specs & Attributes

• Display: 1999 count LCD with backlight
• DC Voltage Ranges: 200mV / 2V / 20V / 200V / 600V
• DC Current Ranges: 200μA / 2mA / 20mA / 200mA / 10A
• AC Voltage Ranges: 200V / 600V
• Resistance Ranges: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ
• Overload Protection: Yes
• CE Approved: Yes
• Battery: 6F22 (9V) - included
• Probes: Included
• Dimensions: 115mm (L) x 110mm (W) x 55mm (H)
• Weight: 345g

Typical Applications

• Testing DC and AC voltage in household and commercial electrical circuits
• Measuring current draw in electrical appliances and equipment
• Checking resistance as well as continuity in wiring and electrical components
• Fault-finding in automotive and vehicle electrical systems

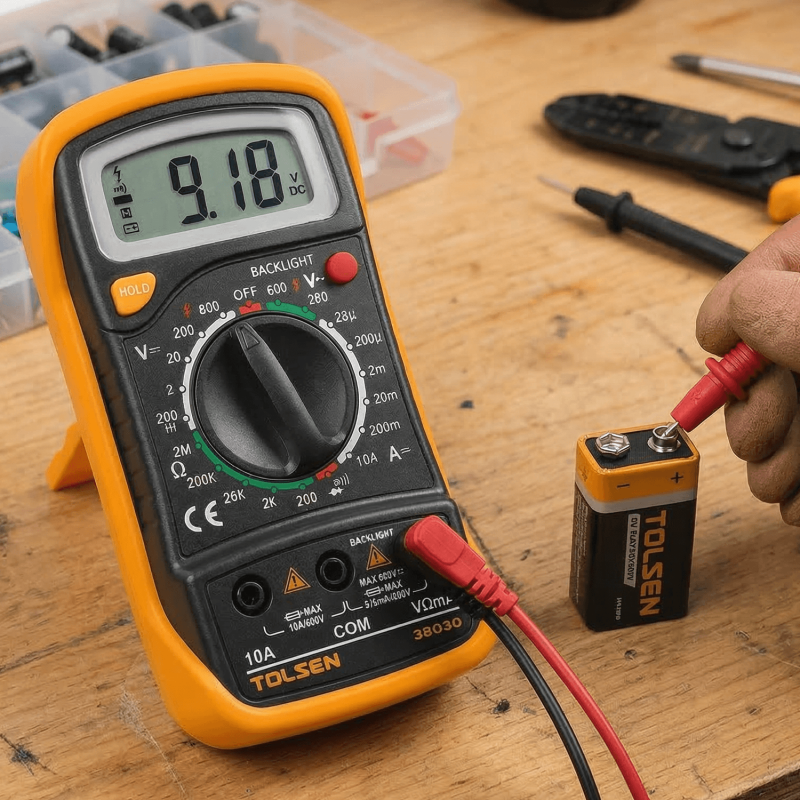

• Verifying battery voltage among different battery types and sizes

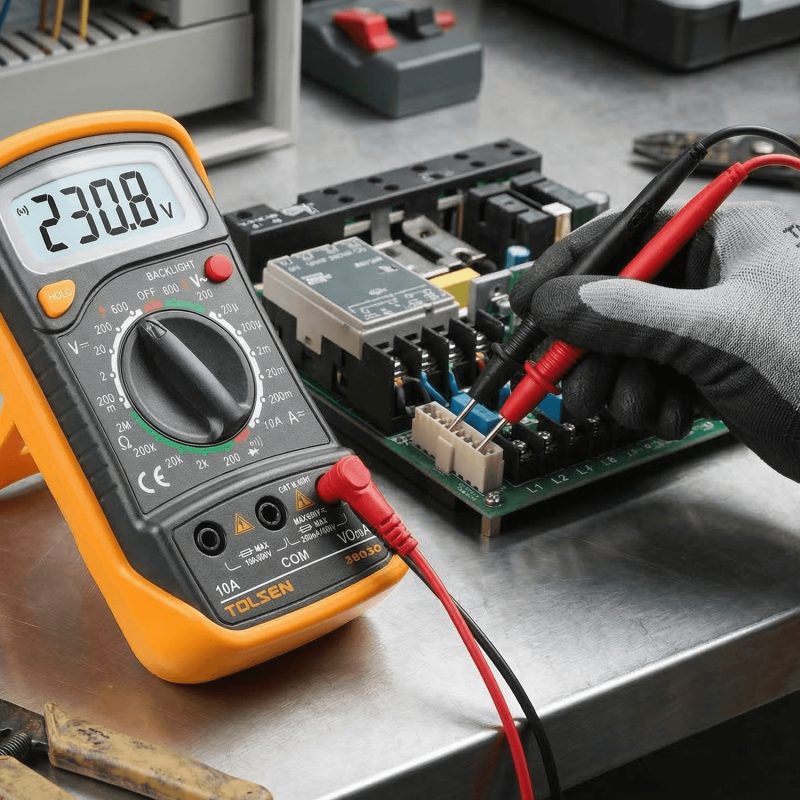

• Testing low-voltage control circuits in industrial and commercial equipment

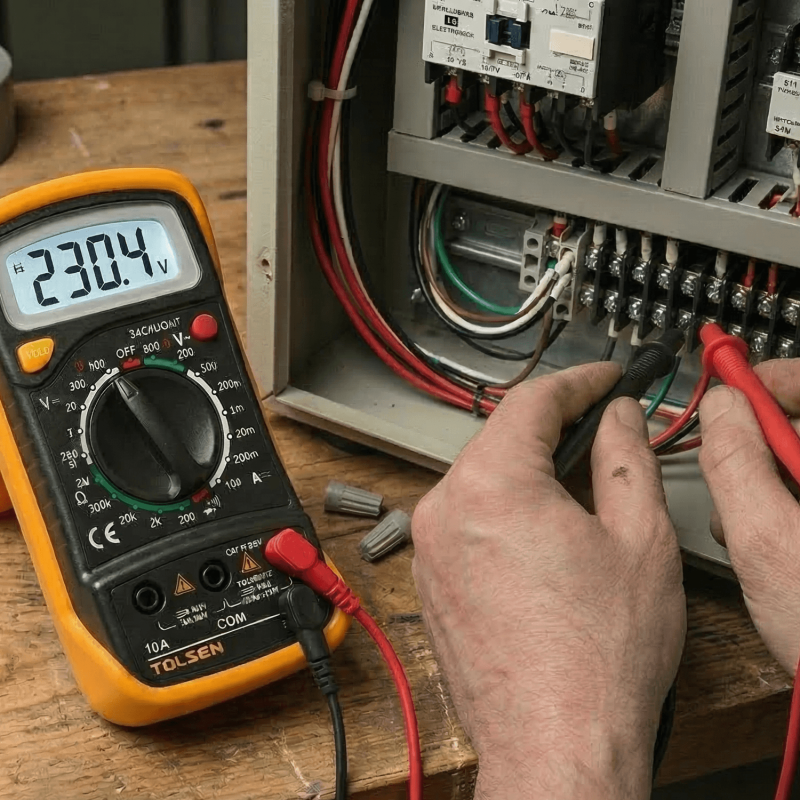

• Checking AC mains supply at sockets and consumer units

How to Use

• Insert the Battery: Fit the supplied 6F22 (9V) battery into the battery compartment before first use.

• Connect the Test Probes: Plug the black probe into the COM socket and the red probe into the correct input socket for your measurement type.

• Select the Mode and Range: Rotate the selector dial to the correct mode - DC voltage, AC voltage, DC current, or resistance - then choose the appropriate range for the circuit or component being tested.

• Take the Reading: Touch the probe tips to the test points on the circuit or component and read the value on the LCD display.

• Power Off After Use: Return the dial to the OFF position when the meter is not in use to preserve battery life.

Frequently Asked Questions (FAQs)

• What does 1999 counts mean on a digital multimeter?
  The count value defines the number of display increments available. A 1999 count meter can show readings from 0000 to 1999, giving a resolution of one unit in the last digit across its measurement ranges.

• Can this multimeter measure both AC and DC?
  Yes. It measures AC voltage on 200V and 600V ranges, and DC voltage across five ranges up to 600V. DC current is measured across five ranges up to 10A.

• What battery does this multimeter use?
  It uses a 6F22 (9V) battery, which is supplied in the box. Replacement batteries of this type are widely available from most hardware and electrical retailers.

• What does overload protection do on a multimeter?
  Overload protection stops internal damage if a voltage or current above the selected range is applied to the meter. It operates as a safeguard against accidental misuse or incorrect range selection during testing.

• Is this multimeter suitable for trade and professional use?
  The meter carries CE approval and covers the measurement ranges used across trade, maintenance, and electrical fault-finding tasks. Always confirm the meter's rated ranges match the circuit under test before taking measurements.

Summary

The Tolsen Industrial LCD Digital Multimeter (38030) is a CE-approved meter covering DC/AC voltage up to 600V, DC current up to 10A, and resistance up to 2MΩ across multiple selectable ranges. The 1999 count-backlit LCD gives clear readings in any lighting condition. A 6F22 (9V) battery and test probes are included, so the meter is ready to use straight away.
