Blue Spot Tools Ironmongery 50mm x 50mm Zinc Plated Wall Anchor Plate Hook 78068

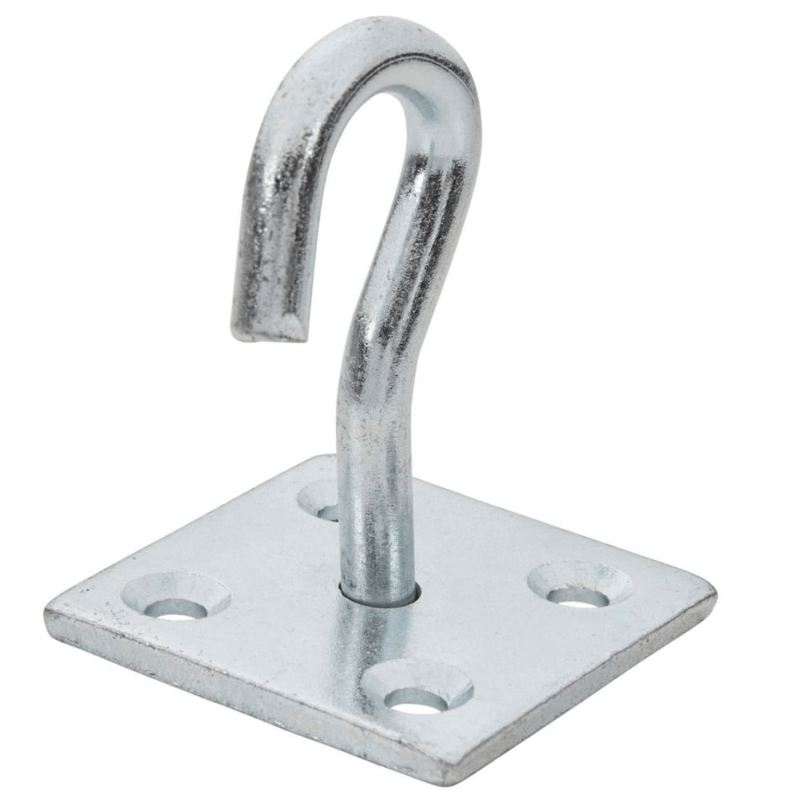

Blue Spot Tools Ironmongery 50mm x 50mm Zinc Plated Hook on Plate

MPN: 78068

Barcode: 5028734780680

Size: 50mm x 50mm

Weight: 0.13kg

Overview:

This 50mm x 50mm hook on plate from Blue Spot Tools is made from carbon steel. The zinc plated finish protects the steel against corrosion for permanent outdoor use. It suits installations on wooden gates, fences, shed doors, and much more.

The curved J-hook accepts chains, basket hangers, ropes, and similar items. Four fixing holes in the backplate spread the load across the timber surface. All necessary fittings come included, and Blue Spot Tools backs this product with a 5 year guarantee.

Key Features and Benefits

• Carbon Steel Construction: Provides the structural strength needed to support loads on outdoor timber structures.
• Zinc Plated Finish: Creates a protective barrier against surface rust and corrosion in outdoor conditions.
• Curved J-Hook: Accepts chains, basket hangers, ropes, and similar items securely.
• Four-Hole Backplate: Four fixing points distribute the load across the timber surface.

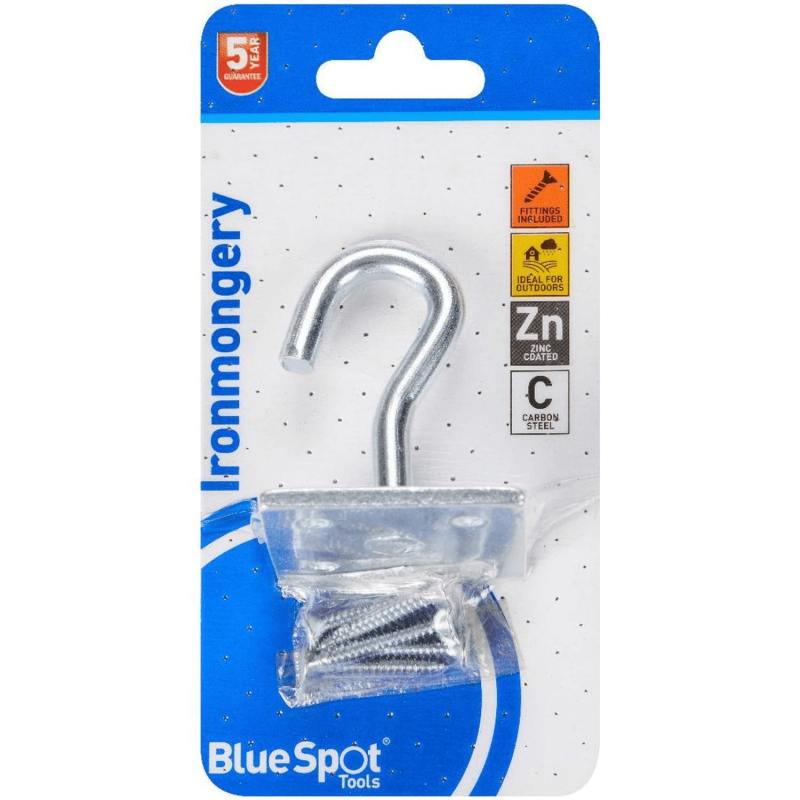

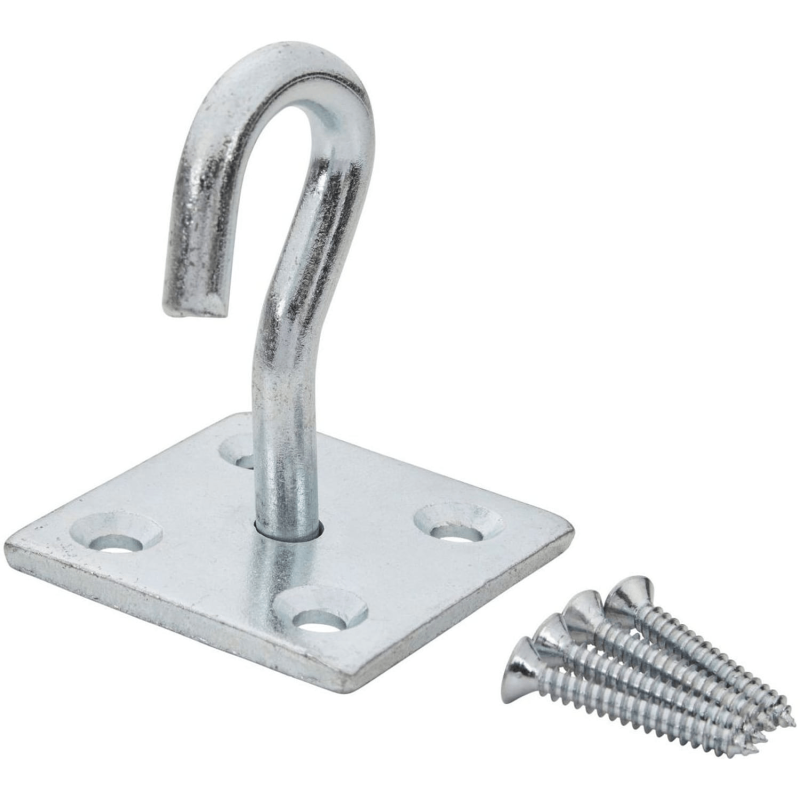

• Fittings Included: All necessary fixing screws come supplied in the pack.

Specs & Attributes

• Material: Carbon steel
• Finish: Zinc plated
• Size: 50mm x 50mm
• Weight: 0.13kg
• Use: External

Typical Applications

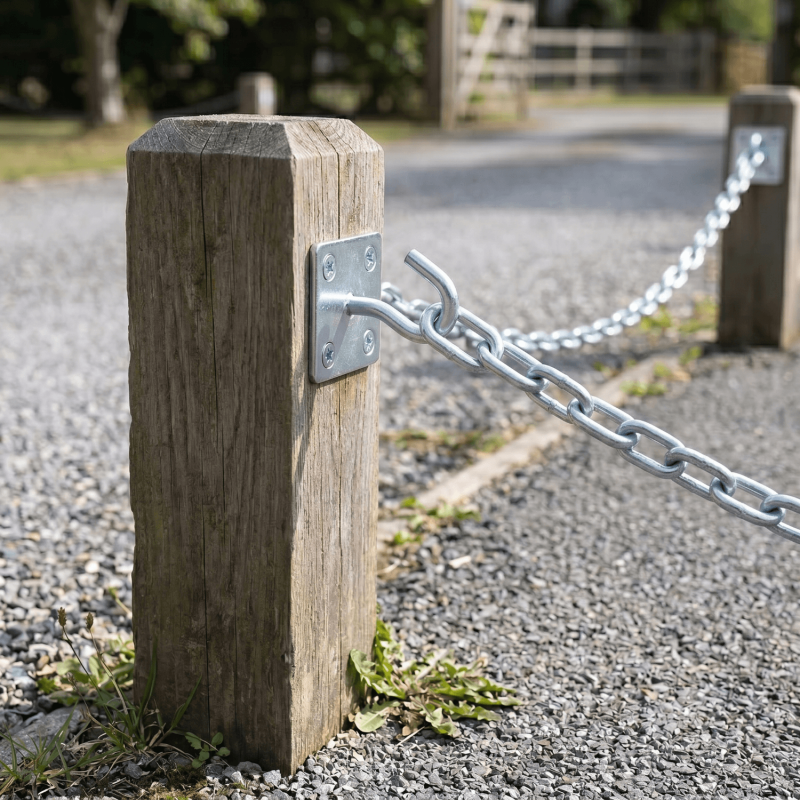

• Hanging chains between wooden gate posts or fence posts

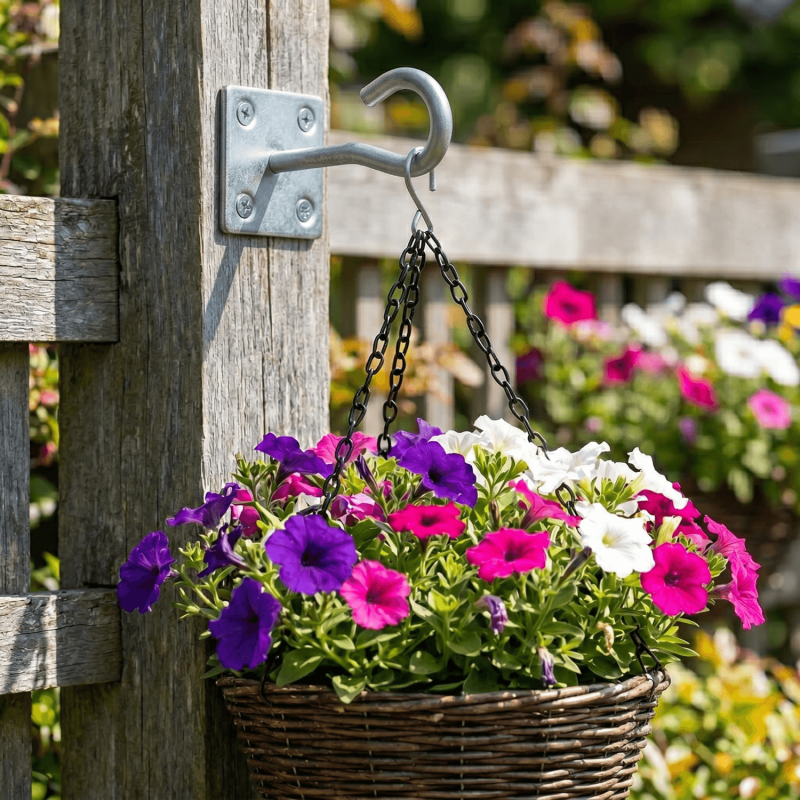

• Supporting hanging baskets on fence posts and garden structures
• Attaching ropes or cordage to shed doors and outbuildings
• Wooden garden gates and fencing
• Shed and outbuilding doors
• Garden timber structures and posts

How to Use

• Mark Position: Hold the plate against the timber and mark the four fixing hole positions with a pencil.

• Drill Pilot Holes: Drill a pilot hole at each marked point to avoid splitting the timber.

• Align the Plate: Position the plate flat against the timber, lining up with the pilot holes.

• Fix the Plate: Drive the supplied screws through the plate holes to secure it firmly to the timber.

• Attach Load: Hook the chain, basket hanger, or other item onto the J-hook.

Frequently Asked Questions (FAQs)

• What is the difference between zinc plated and powder coated steel hooks?
  Both finishes protect steel by creating a barrier against oxygen and moisture. Zinc plating applies a thin zinc layer through electroplating. Powder coating fuses a layer of powder particles onto the surface using heat. Powder coating produces a thicker, more visible finish. Zinc plating gives a thinner metallic appearance.

• Can zinc plated hardware be used outdoors?
  Yes. The zinc coating acts as a barrier against surface rust under normal outdoor conditions. In coastal or heavily exposed environments, the coating may degrade faster. In those situations, hot-dip galvanised alternatives tend to offer a longer service life.

• What is the difference between zinc plated and galvanised steel?
  Zinc plating applies a thin zinc layer through electroplating, typically 5 - 25 microns thick. Hot-dip galvanising produces a much thicker coating of 45 - 100 microns or more. The thicker galvanised coating provides greater corrosion resistance, particularly in harsh or prolonged outdoor exposure.

• How does zinc plating protect steel?
  Zinc corrodes significantly more slowly than bare steel. When applied as a coating, it acts as a sacrificial layer - corroding first and slowing oxidation of the steel underneath. This barrier effect extends the working life of the steel in outdoor and moist conditions.

• What is carbon steel?
  Carbon steel is an iron alloy where carbon is the primary alloying element. It offers good structural strength for general ironmongery. Without a protective surface finish, carbon steel is susceptible to rust - which is why outdoor carbon steel products are typically zinc plated, powder coated, or galvanised.

Summary

The Blue Spot Tools 50mm x 50mm zinc plated hook on plate is a carbon steel outdoor fixing for permanent installation on wooden gates, fences, shed doors, and timber structures. The zinc plated finish protects against surface rust, all necessary fittings come supplied, and the product carries a 5 year guarantee from Blue Spot Tools.
